Overview

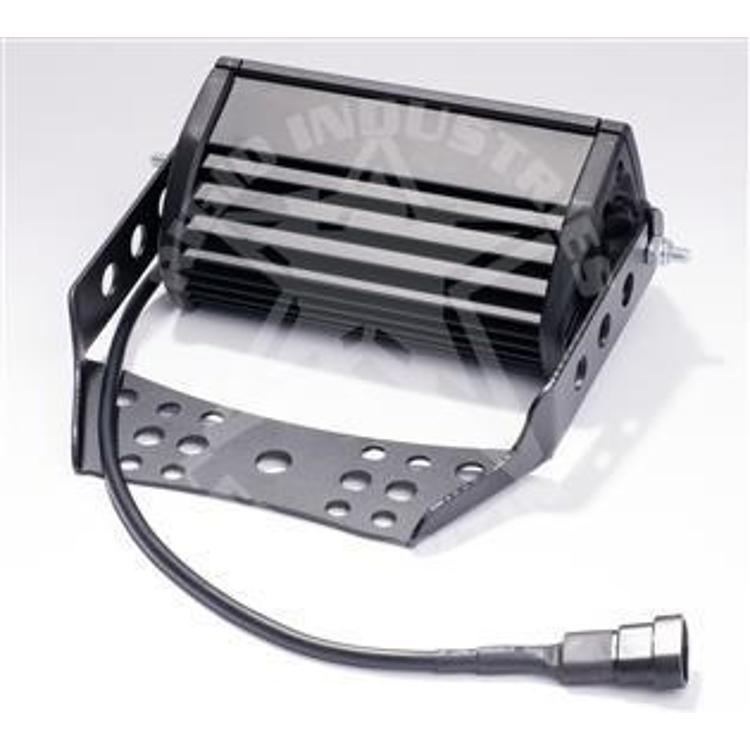

The Rigid Industries ATV Mount for 6 Inch E-Series, black, part number 40630, holds a 6 inch E-Series LED light bar on an ATV. It covers Hummers, side-by-sides, motorcycles and ATVs.
Two attachment choices are available: cradle mounting or Rigid’s Clamp System. The Clamp System grips tubing from 1.25 inch to 2.25 inch, so tubing size decides whether it fits your machine.
Key features
- Cradle mounting or Clamp System attachment
- Clamp System for 1.25 inch to 2.25 inch tubing
- Black finish
- Listed mounting type: ATV mount
- Sized for a 6 inch E-Series light bar, per the title
Clamp and cradle fit
Tubing size is the first thing to settle. A clamp only holds when the tube sits inside its jaws without slipping, so measure the diameter at the spot you plan to mount. A tube at the edge of the range can still work, but it needs a firm clamp and a check after the first rough ride.
Cradles and clamps suit different setups. A cradle works when the light can sit on a flat bracket or frame plate, while a clamp works on round tubing such as roll bars or rack tubes. Where a light moves or sways, tighten fasteners in a crosswise pattern and recheck them after the first few trail runs.
Choose the mount location with the light’s beam in mind. Mount the bar where it clears body panels and cannot strike a branch or cable at full lock. Keep the wiring route planned before the mount is tightened down.
- Measure tube diameter at the mounting spot
- Tighten clamps in a crosswise pattern
- Check beam clearance before final tightening
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 40630 |
| UPC | 815711015072 |
| Color | Black |
| Light size | 6 inch E-Series |
| Mounting options | Cradle or Clamp System |
| Clamp tubing range | 1.25 inch to 2.25 inch |
| Mounting type | ATV mount |
Vehicle fitment
It is not built for a specific make, model or year. Check your frame or tubing against the mount rather than assuming a fit, since applications include Hummers, side-by-sides, motorcycles and ATVs.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The Clamp System depends on tubing from 1.25 inch to 2.25 inch, so measure your tubing before mounting. Lights need fused relay wiring, and local rules on lighting apply to any vehicle.
What’s included
Confirm the fasteners match your clamp and cradle before starting. Not included: the 6 inch E-Series light bar.
