Overview
The Rancho RS5384 is a rear gas-charged shock absorber from the RS5000 Series, made for the 2009–2013 Ford F-150. The RS5000 line has been used on light trucks and sport utility vehicles since 1985 and is built for both stock and lifted vehicles.
The RS5384 uses ten-stage velocity sensitive valving, a 5/8-in. (16mm) diameter piston rod and a 1 3/8-in. (35mm) diameter piston. The design suits on-road and off-road use, and the shock carries a limited lifetime warranty from Rancho.
Key features
- Ten-stage velocity sensitive valving
- 5/8-in. (16mm) diameter piston rod
- 1 3/8-in. (35mm) diameter piston
- Gas charged body
- Rear position
- Red protective boot included
- Built for both stock and raised vehicles
- Covered by Rancho’s limited lifetime warranty
Daily driving and towing
Rear shocks on a full-size pickup manage how the body settles after a bump and how much the rear sags under a load. A shock with good damping keeps the tires in contact with the road and limits sway when the truck changes lanes or slows on a grade.
Owners who tow or carry heavy loads tend to notice rear shock wear sooner. Check for oil on the shock body, bounce that continues after a bump and uneven rear tire wear. Mounting eyes and bushings should be checked at the same time, since loose mounts can make a new shock feel vague.
- Check both rear shocks for leaks
- Inspect mounting eyes and bushings
- Replace rear shocks as a pair when one is worn
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS5384 |
| UPC | 10039703001899 |
| Series | RS5000 Series |
| Position | Rear |
| Fitment type | Direct Fit |
| Lift height | w/0 in. Lift/Drop |
| Hydraulic / gas charged | Gas charged |
| Piston rod diameter | 5/8-in. (16mm) |
| Piston diameter | 1 3/8-in. (35mm) |
| Valving | Ten-stage velocity sensitive |
| Boot | Red protective boot |
Vehicle fitment
The 2009–2013 Ford F-150 is covered in FX4, King Ranch, Lariat, Lariat Limited, Limited, Platinum, STX, XL and XLT trims.
Other F-150 model years are not covered. Confirm fit for your vehicle’s year, model and trim before ordering.
What’s included

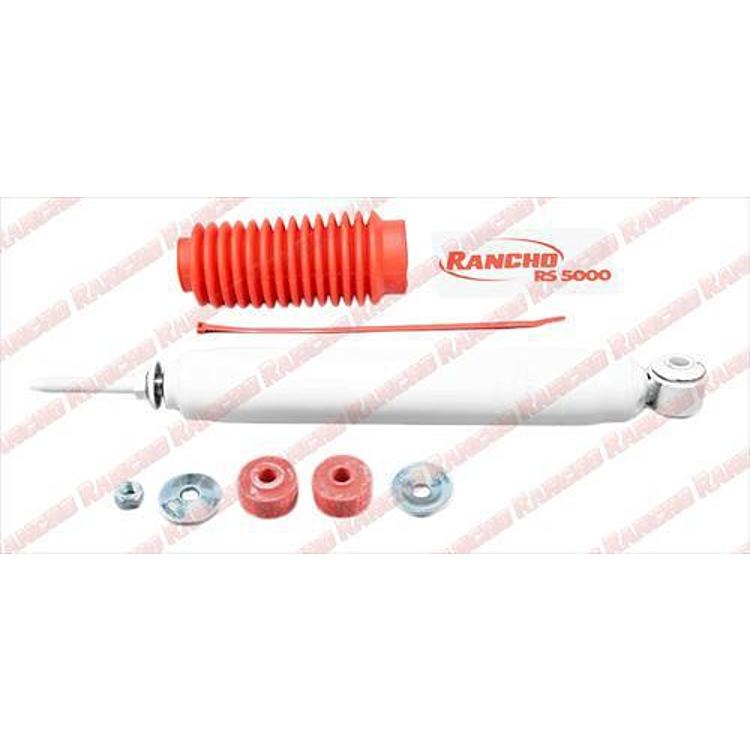

Includes one Rancho RS5384 shock absorber with a red protective boot.
