Pro Comp Motorsports Series 6″ Single Row LED Combo Spot/ Flood Light Bar – 75106

Pro Comp Suspension

Shop Pro Comp Suspension Light Bars on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp Motorsports Series 6 inch single row LED combo light bar, part number 75106
  • Osram 5W LED bulbs in one row
  • Spot and flood beam, clear lens, black finish
  • Universal fit with bracket mount, sold as a single bar

Description

Overview

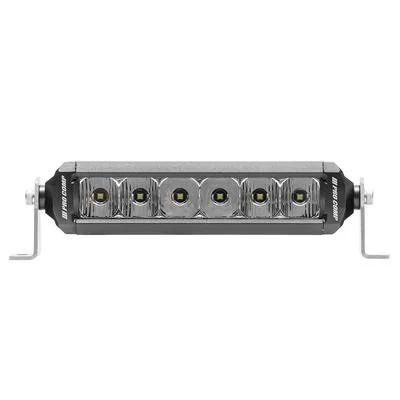

The Pro Comp Motorsports Series 6 Inch Single Row LED Combo Spot/Flood Light Bar, part number 75106, is a 6 inch straight bar with one row of Osram 5W LEDs. It gives a spot and flood beam through a clear lens, in black, and it is sold as a single unit.

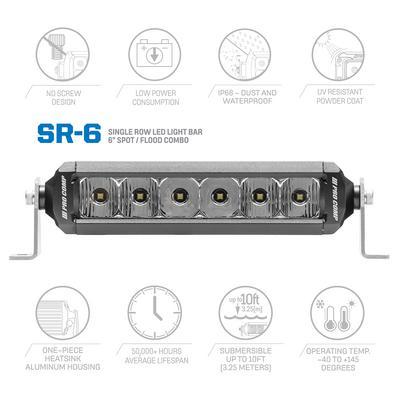

The bar is universal fit. Its housing is IP68 rated with a one-piece heatsink.

The 75106 is the single row 6 inch version of the Motorsports Series bar, with one row of Osram 5W LEDs. Its compact size makes it a practical choice where a longer bar would not fit, and the single row gives a different layout from the double row 75206.

The bar has a clear lens, black finish, straight shape and a bracket mount. The housing is IP68 rated, with a one-piece heatsink and no screws in the body. Because the bar is small, check the mounting position for clearance around the bracket, and confirm the beam is not blocked before wiring the bar in.

Like the other bars in this group, the 75106 comes as a single unit, so a matched set needs two bars.

Key features

  • Single row of Osram 5W LEDs
  • Spot and flood beam
  • Compact 6 inch size
  • IP68 housing

Single row on a compact bar

A single row in a 6 inch housing gives a lighter, simpler install than a double row version, and it works well where a short bar must fit a narrow spot. The row is easy to aim by eye, and the spot and flood mix covers the track ahead along with the nearer edges.

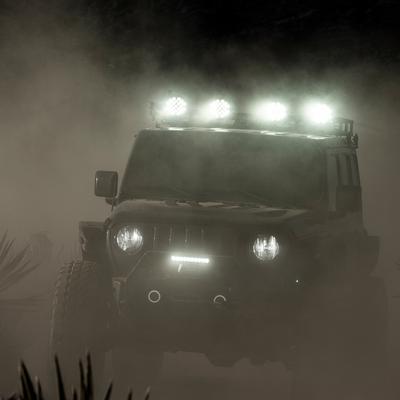

A common use is a pair of small bars on a bumper or a roof rack, where each one lights a corner of the path. If you run two, plan a matched relay and fused feed for both, and mount them at the same height so the beams line up. Inspect the lens for cracks after rough trails.

  • Easy to aim by eye
  • Plan one relay for each bar, or a common fused feed
  • Keep the harness clear of moving parts

Specifications

Brand Pro Comp Suspension
Part number 75106
Type Light bar
Size 6 inch
LED row configuration Single row
Bulb type Osram 5W LED
Beam pattern Spot/flood
Lens color Clear
Finish Black
Shape Straight

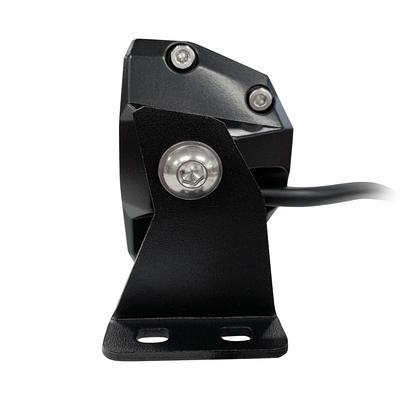

Mounting Bracket
Housing rating IP68

Vehicle fitment

Being universal fit, the 6 inch bar is not tied to one model. It suits compact mounting spaces. Year, model and trim should be confirmed against your vehicle before buying.

Installation notes

Wire the bar through the included relay and switch, and check local rules on auxiliary driving lights before using them on public roads.

What’s included

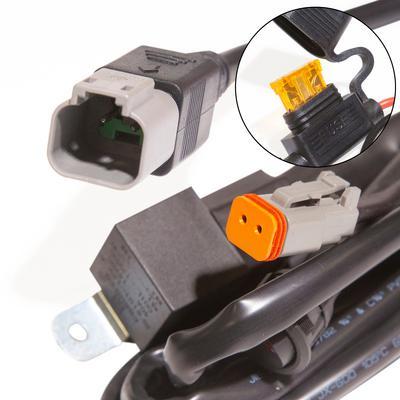

One 6 inch light bar with a wiring harness, switch, relay, mounting brackets and hardware.

Questions & Answers

Is the 75106 a double row light bar?

No. The 75106 has a single row of Osram 5W LEDs. The double row 6 inch version is the 75206.

Does the 75106 come with brackets?

Yes. Mounting brackets and hardware are included, along with a wiring harness, switch and relay. Check the bracket fit against your mounting point before wiring.

Is the 75106 universal fit?

Yes. It is a universal fit bar, so it is not tied to one vehicle or model. Choose a mounting position that suits the spot and flood beam you need.

Is a single row bar enough on its own?

It depends on the job. A single row bar suits closer work and a narrow track, while a pair of bars covers a wider area. Choose the count and mounting spot based on the light you need.

How do I tell if the bar needs attention?

Look for a dim or uneven beam, a cracked lens, or moisture inside the housing. Check the bracket and wiring first, since a loose connection often causes a weak beam.
