Overview

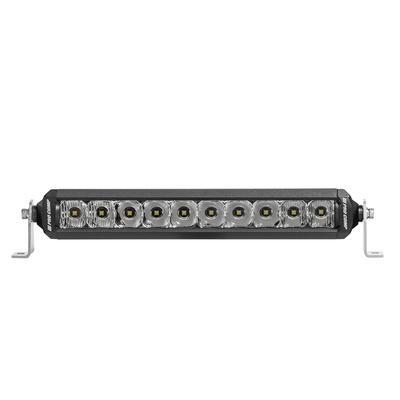

The Pro Comp Motorsports Series 10 Inch Single Row LED Combo Spot/Flood Light Bar, part number 75110, is a straight 10 inch light bar with one row of Osram 5W LEDs. It gives a combined spot and flood beam from a clear lens in a black housing. It is a universal fit bar sold as a single unit.

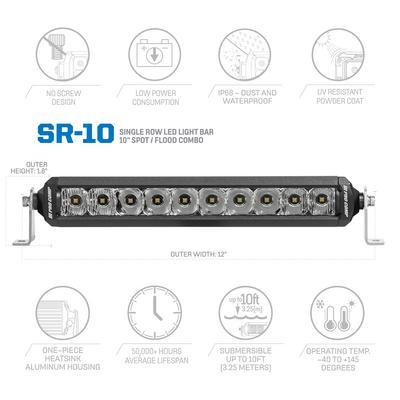

The bar uses a one-piece heatsink with a no-screw body and an IP68 housing. It is rated for a 50,000-plus hour life span.
The single row version uses the same 10 inch size as the 75210 double row bar, so the choice between them comes down to the row count and the output you want from the layout.
The IP68 rating and one-piece heatsink design are part of the housing. Confirm the bracket’s load capacity suits the bar’s size before installing it.
The bar is a straight unit with a clear lens, so the beam is not colored or tinted.
Key features
- Single row of Osram 5W LEDs
- Combined spot and flood beam
- IP68 housing with a one-piece heatsink
- Rated for 50,000-plus hours
Mounting and beam aim
Aim matters more than output on a single bar. Set the bar level, then angle it so the spot portion reaches the line of travel and the flood portion lights the edges of the path. Because the beam is combined, a small tilt changes how far the spot reaches, so make adjustments in small steps and test at night on a safe, level area.
Single row bars are often chosen for compact installs, such as a bumper or a roof rack where a double row unit would look crowded. Bracket hardware can loosen after rough driving, so check it at the start of each trip and tighten it firmly.
- Set the bar level before tightening
- Test aim at night on level ground
- Check bracket bolts before longer trips
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | 75110 |
| Type | Light bar |
| Size | 10 inch |
| LED row configuration | Single row |
| Bulb type | Osram 5W LED |
| Beam pattern | Spot/flood |
| Lens color | Clear |
| Finish | Black |
| Shape | Straight |

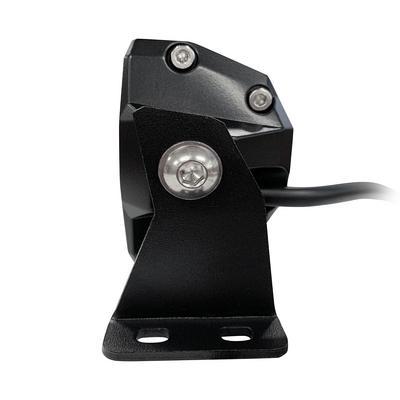

| Mounting | Bracket |
| Sold as | Single |
Vehicle fitment
The bar is a universal fit and is not built for one vehicle. Check your vehicle’s year, model and trim against the bar before ordering.
Installation notes
Wire the bar through a relay, and check local rules on auxiliary driving lights before using them on public roads. The kit includes the wiring harness, switch and relay.
What’s included

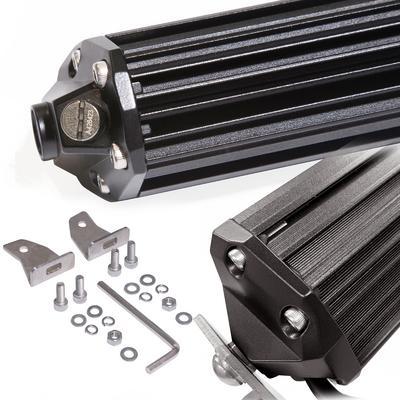

One light bar with a wiring harness, switch, relay, mounting brackets and hardware.
