Overview

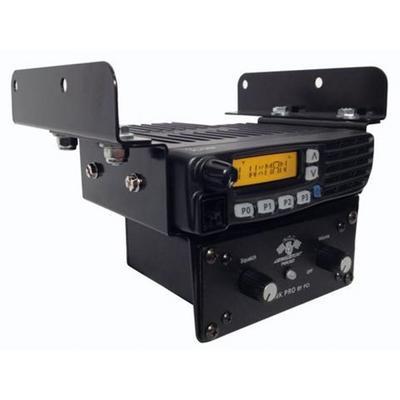

The bracket centers a radio and intercom under the center of the dash on a Polaris RZR. It mounts on the two dash support rails, so installation requires no drilling.
The bracket is built for the RZR 800 or XP 900. The XP 1000 uses a different mounting method, so this bracket is not used on that model. Because it is built for one radio and a short list of intercoms, it is a dedicated mounting part rather than a general accessory.
Key features
- Centers the radio and intercom under the center of the dash
- Mounts on the two dash support rails with no drilling
- Designed with plenty of knee room
- Clears the power steering options on the RZR 800 and XP 900
- Powder coated in satin black
- Comes complete with hardware
Mounting a radio under the dash

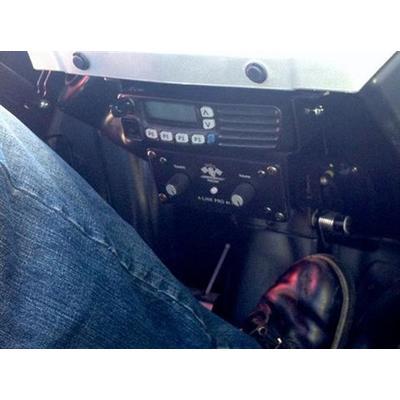

A radio bracket under the dash sits in a space that is often shared with the driver’s knees, wiring and steering components. Before you mount the radio, sit in the seat and check that the unit will not press on your legs or block a control. Leave enough slack in the radio and intercom cables that they can move without pulling on connectors when the seat is adjusted.
Cable routing matters as much as the bracket itself. Keep power and audio wires away from moving parts and sharp edges, and secure them with ties at regular intervals. If your build includes accessories that draw power, plan the fuse and wiring layout before the radio goes in so the setup can be serviced later without removing the whole bracket.
- Test seat and knee clearance before tightening
- Route audio and power cables separately
- Recheck bracket hardware after the first few trail runs
Specifications
| Brand | PCI Race Radios |
|---|---|
| Part number | 992 |
| Part type | Radio accessory (mounting bracket) |
| Finish | Satin black powder coat |
| Mounting | Dash support rails, no drilling |
| Compatible radio | Icom two-way radio |
| Compatible intercoms | 4 Link Pro, 4 Link Pro Elite and Com X Race |
Vehicle fitment
It is built for the Polaris RZR 800 or XP 900. The XP 1000 uses a different mounting method and is not covered. Confirm fit for your vehicle’s year, model and trim before ordering.
The bracket is made for the Icom radio, so it will not work with Kenwood, Vertex or other brand radios. Confirm the radio and intercom model before installing.
Installation notes
The bracket mounts on the two dash support rails without drilling and includes hardware. It is designed to work with the power steering options on the RZR 800 and XP 900.
What’s included
The bracket comes complete with the hardware needed to mount it on the dash support rails.
Not included: the radio and intercom, which must be purchased separately, and the RZR XP 1000 mounting parts.
