PCI Race Radios Builder 2 Seat Package with Bluetooth and DSP – 2479

PCI Race Radios

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Complete in-car and two-way radio system for two seats, part number 2479
  • Includes a 4 Link Pro Elite intercom, a F5021 mobile radio, antenna and coax
  • 50 watt VHF radio with alphanumeric display and 128 pre-programmed channels
  • One-touch DSP and Bluetooth controls on the intercom face
  • Headsets not included; add headsets, PCI pre-wired helmets or helmet wiring kits

Description

Overview

The PCI Race Radios Builder 2 Seat Package with Bluetooth and DSP, part number 2479, is a complete in-car intercom and two-way radio system for two seats. It supplies everything needed to install the radio side in the vehicle, and it is built to be finished out with headsets or helmets.

The centerpiece is the 4 Link Pro Elite intercom, which PCI says comes with digitally controlled squelch, noise cancellation and automatic muting of music when you speak into the microphones. The package adds Bluetooth for wireless music and phone calls and DSP, which removes background noise from the intercom so only your voice carries.

Key features

  • Intercom and radio for two seats, with in-car and two-way communication
  • Digitally controlled squelch and noise cancellation on the 4 Link Pro Elite intercom
  • Automatic muting of music when you speak
  • DSP removes all noise from the intercom system except your voice, which makes it useful in loud vehicles.
  • Bluetooth pairing for wireless music and phone calls
  • One-touch controls on the face of the intercom to turn DSP on, play or pause music, and answer calls
  • Music and phone audio input cable for connecting a device to the intercom

Adding helmets to a two-seat system

A two-seat intercom system is only useful once each seat has a headset or helmet connected. Plan for each rider to have the right cable length and connector type, and confirm the helmet wiring matches the intercom you install. Mixing headsets and helmets on one system is possible, but check each one’s connector before ordering.

Radio range and antenna placement also affect how well a two-seat system works. The antenna should be mounted where it has a clear path and is not blocked by the roll cage or cargo. Keep the coax run neat and away from moving parts, and check the mount points periodically, especially after rough trail sessions.

  • Match connectors to each rider’s gear
  • Route the coax away from pedals
  • Check mounts after rough trails

Specifications

Brand PCI Race Radios
Part number 2479
Part type Radio kit
Intercom 4 Link Pro Elite, with Bluetooth and DSP
Mobile radio F5021, 50 watt, VHF, alphanumeric display
Channels 128 pre-programmed, using PCI’s stock desert channel list
Headset cables Two 12-foot and two 16-foot headset/helmet cables
Antenna No ground plane antenna, with 17-foot hole mount coax
Controls Push-to-talk buttons, one Velcro mount and one panel mount
Music input Music and phone audio input cable

Vehicle fitment

The package is universal fit, so it is not tied to one vehicle. The radio and intercom can go into most two-seat vehicles, with the mounting spot set by your own dash layout.

Installation notes

The package includes a Velcro mount and a panel mount. Headsets, pre-wired helmets or helmet wiring kits are needed to finish the system.

What’s included

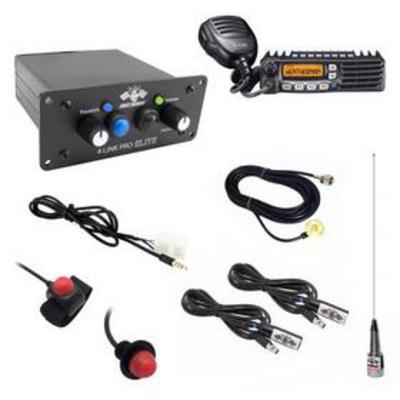

The package includes the 4 Link Pro Elite intercom with Bluetooth and DSP, two 12-foot and two 16-foot headset/helmet cables, the F5021 mobile radio, the antenna and coax, push-to-talk buttons, one Velcro mount and one panel mount, and a music and phone audio input cable.

Not included: headsets, since the package is built for two seats without them. PCI pre-wired helmets or helmet wiring kits are add-ons.

Questions & Answers

Does the PCI 2479 Builder package include headsets?

No. The package is built for two seats without headsets. PCI says to add headsets, PCI pre-wired helmets or helmet wiring kits to complete the system.

What radio comes with the Builder 2 Seat package?

An F5021 mobile radio rated at 50 watt on VHF, with an alphanumeric display and 128 channels pre-programmed with PCI's stock desert channel list. The package also includes the antenna and coax.

What does DSP do on this PCI system?

DSP, or Digital Signal Processing, electronically removes all noise from the intercom except your voice. It is switched on with one touch and is especially useful in loud vehicles.

Can this package play music and take phone calls?

Yes, through the Bluetooth feature. You can pair a phone or Bluetooth music player to listen wirelessly and take calls, and the intercom face has one-touch controls to play or pause music and answer incoming calls.

How often should I check the mounts and cables?

Check them after every rough outing and before long trips. Look for loose brackets, chafed coax and worn push-to-talk buttons, and tighten or replace parts as needed. Routine checks catch problems before they cause dropouts on the trail.
