Oracle Lighting 7440 18 LED 3-Chip SMD Turn Signal Bulb (Cool White) – 5109-001

Oracle Lighting

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Oracle Lighting 7440 turn signal bulb with 18 LED, 3-chip SMD construction, cool white
  • Universal fit, so the 7440 bulb type matters rather than the vehicle
  • 5050 SMD chips rated 100,000 hours for continuous use
  • Draws 1/10th of the power of the factory bulb
  • Turn signal use needs a load equalizer to prevent rapid-flash

Description

Overview

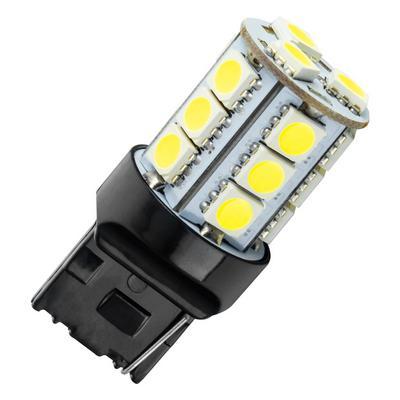

The Oracle Lighting 7440 18 LED 3-Chip SMD Turn Signal Bulb in cool white, part number ORC5109-001, is a 7440 replacement bulb built from 18 LEDs in a 3-chip SMD layout. It is a direct OEM replacement that responds quickly and is brighter than stock halogen bulbs.

Each bulb uses 5050 SMD technology, which Oracle says produces vibrant light with sharp hues. The chips are rated at 100,000 hours for continuous use, and the bulb draws only 1/10th of the power of the factory bulb. Since fitment is universal, the 7440 bulb type is the deciding factor, not a vehicle’s year, make or model.

Key features

  • Quick-fire response
  • Brighter than stock halogen bulbs, per the manufacturer
  • 5050 SMD chips with sharp, vibrant hues
  • Rated 100,000 hours for continuous use
  • Uses 1/10th of the power of the factory bulb
  • Includes a 1 year warranty

Keeping the bulb and socket clean

Turn signal bulbs sit in a socket exposed to road spray, heat cycles and vibration. Keeping the socket contacts clean and dry helps the bulb seat properly and prevents flicker. Handle the bulb by its base and avoid touching the LED board with bare fingers, since skin oils can trap heat around the chips.

Inspect the socket for browning, corrosion or a loose fit each time you change a bulb. Reseating the bulb and replacing a worn lens gasket often fixes intermittent flashing. LED bulbs seldom burn out, so a dead bulb often points to moisture or wiring rather than the bulb itself.

  • Look for green or white corrosion on contacts
  • Dry the socket before fitting the bulb
  • Check the lens seal for water entry
  • Test the bulb before reassembling the trim

Specifications

Brand Oracle Lighting
Part number ORC5109-001
Bulb type 7440
LED configuration 18 LED, 3-chip SMD
Light color Cool white
Chip technology 5050 SMD
Rated life 100,000 hours of continuous use
Power draw 1/10th of the factory bulb
Warranty 1 year

Vehicle fitment

This is a universal-fit bulb rather than a vehicle-specific part. Choose it by the 7440 bulb type your turn signal uses, and check that type in your owner’s manual or on the bulb being replaced before installing.

Installation notes

Turn signal use of SMD bulbs needs a load equalizer, or the flasher can run at a rapid rate. Brake, reverse and running light use does not need one. Because SMD bulbs illuminate faster than incandescent bulbs, they add a safety benefit in tail lights.

What’s included

The product is the 7440 turn signal bulb described above, and the count of bulbs per package should be confirmed before ordering.

Not included: A load equalizer, which turn signal use may require.

Questions & Answers

Is ORC5109-001 a 7440 bulb?

Yes. Oracle Lighting part ORC5109-001 is a 7440 turn signal bulb with 18 LEDs in a 3-chip SMD design, in cool white. Its fitment is universal, so the 7440 bulb type is the thing to match before installing it.

Does this bulb need a load equalizer?

Only for turn signal use. Oracle says SMD turn signal bulbs need a load equalizer to prevent rapid-flash. Brake, reverse and running light use does not need one.

Is it brighter than a halogen bulb?

Yes, it is brighter than stock halogen bulbs and has a quick-fire response. It draws 1/10th of the power of the factory bulb.

Can a cool white turn signal bulb be used for brake lights?

Yes, when the bulb type matches the socket. Brake and running light use does not need a load equalizer, while turn signal use does. Confirm the 7440 bulb type in your socket before swapping, since color alone does not show the bulb is correct for the job.
