Overview

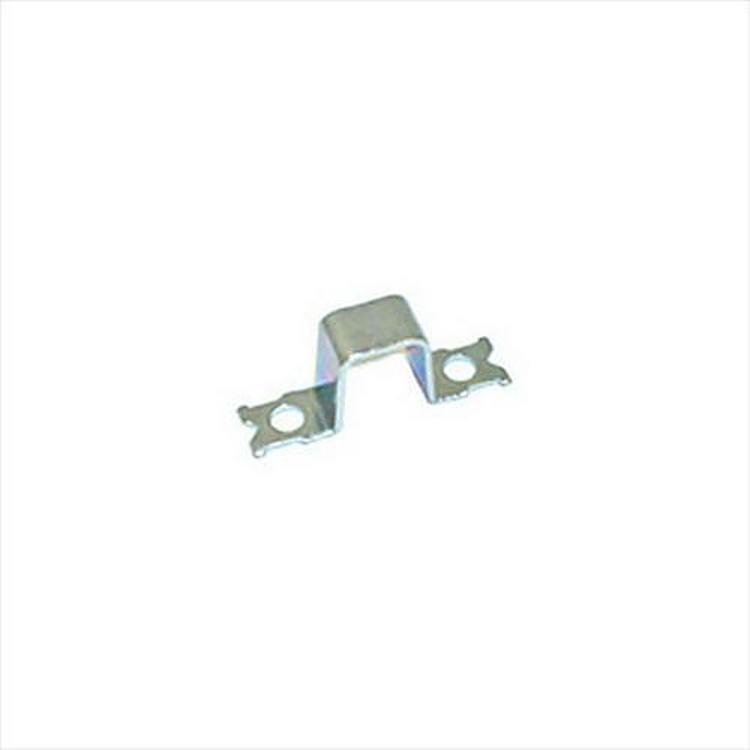

The Omix-Ada rocker arm bridge without stud, part number 17408.11, is sold without its stud for Jeep models from 1972 to 2006. It fits Cherokee, CJ, Comanche, Grand Cherokee, Scrambler, Wagoneer and Wrangler vehicles, including the J-series trucks.
Two bridges are required for a complete set.
Key features
- Rocker arm bridge sold without stud
- Two are required for each set.
- Direct OE replacement built to original specifications by Omix-Ada
- Fits 1972 to 2006 Jeep models
How rocker arm bridges work
A rocker arm bridge spans two valve rockers on the cylinder head and guides them so both valves open and close together. On older Jeep engines the bridge sits above the valve springs, and its pivot stud and pivot points carry the load of every valve movement. Because the bridge is under constant stress, its contact surfaces and the pivot area are the points to inspect whenever the valvetrain is opened up.
When two bridges are replaced, install them as a matched pair and check that both sit square on their valve stems. Uneven wear between the bridge and the rockers can show up as a ticking noise at idle or as a valve that does not seat fully. Oil supply to the pivot matters too, so confirm the oil passages and the pivot stud are clean before reassembly. Replacing the pivot stud and rocker hardware at the same time is common practice on older engines.
- Check both bridges for uneven wear across the pivot
- Inspect valve stem tips for matching contact marks
- Clean oil passages before reassembly
Specifications
| Brand | Omix-Ada |
|---|---|
| Part number | 17408.11 |
| UPC | 804314075347 |
| Stud | Without stud |
| Quantity required | Two |
Vehicle fitment
Fits 1974–1983 and 1984–1996 Jeep Cherokee (SJ and XJ); 1972–1983 Jeep CJ5; 1972–1975 and 1976–1986 Jeep CJ6 and CJ7; 1986–1992 Jeep Comanche; 1972 Jeep Commando; 1984–1991 Grand Wagoneer (SJ); 1993–1996 Grand Cherokee (ZJ); 1972–1973 J-2500, J-2600 and J-4800; 1974–1988 J10 and J20; 1981–1985 Jeep Scrambler; 1972–1990 Wagoneer (SJ); 2004–2006 Wrangler (LJ); 1997–2006 Wrangler (TJ); and 1987–1995 Wrangler (YJ).
Wrangler JK models from 2007 onward are not on this list. Confirm your vehicle’s year, model and trim before ordering.
What’s included
The bridge is listed without a stud.
Not included: the stud, since this version is sold without one.
