Overview

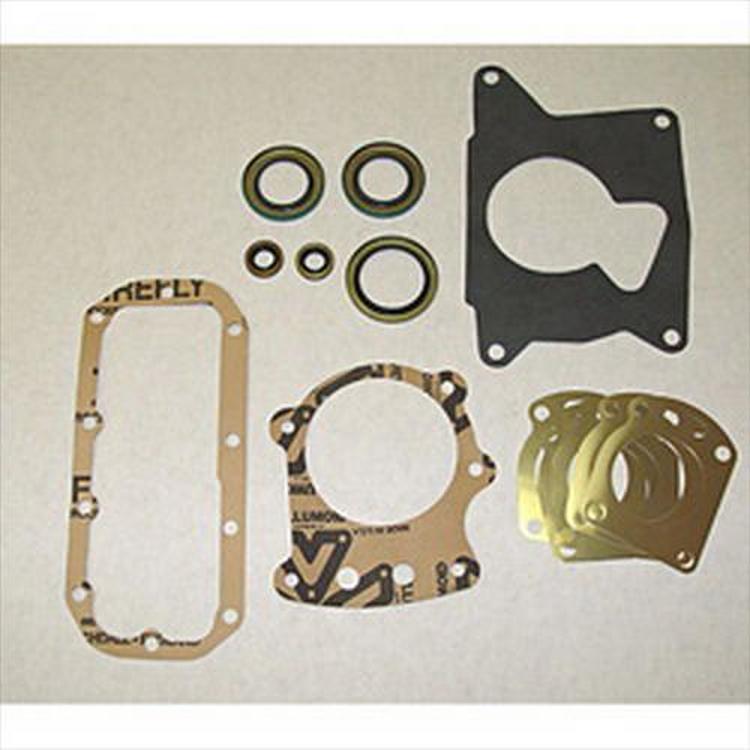

The Omix-Ada 18603.03 is a gasket and oil seal kit for the Dana 300 transfer case. It includes all the seals needed for a transfer case overhaul, including input and output shaft seals. The seals are designed as direct replacements for the original parts.
Key features
- Input shaft seal included
- Output shaft seal included
- Built to original specifications.
- It carries a limited five year warranty.
Overhaul sequence and seal care
A transfer case overhaul usually starts with draining the fluid, removing the shift linkage and separating the case halves. Once the case is apart, the input and output seals are easy to replace, which is why many owners change them together. Seals rarely fail alone, so the bearings and shaft surfaces should be checked during the same job.
Clean every sealing surface with a plastic scraper and solvent to remove old gasket material. Apply sealant only where the service procedure calls for it, and avoid nicking the mating faces. Install the seals with a driver so the lips stay square. After reassembly, refill with the correct fluid and check for weeping around the seals on the first few drives.
- Replace input and output seals together
- Check shaft surfaces for grooves
- Tighten fasteners in stages
Specifications
| Brand | Omix-Ada |
|---|---|
| Part number | 18603.03 |
| UPC | 804314070557 |
| Transfer case | Dana 300 |
| Contents | Gasket and oil seal kit, including input and output shaft seals |
| Warranty | Limited five year warranty |
Vehicle fitment
The kit is a direct fit for the Dana 300 transfer case. Confirm fit for your vehicle’s year, model and trim before ordering.
What’s included
The kit includes an input shaft seal, an output shaft seal and the other seals needed for a transfer case overhaul.
