Overview

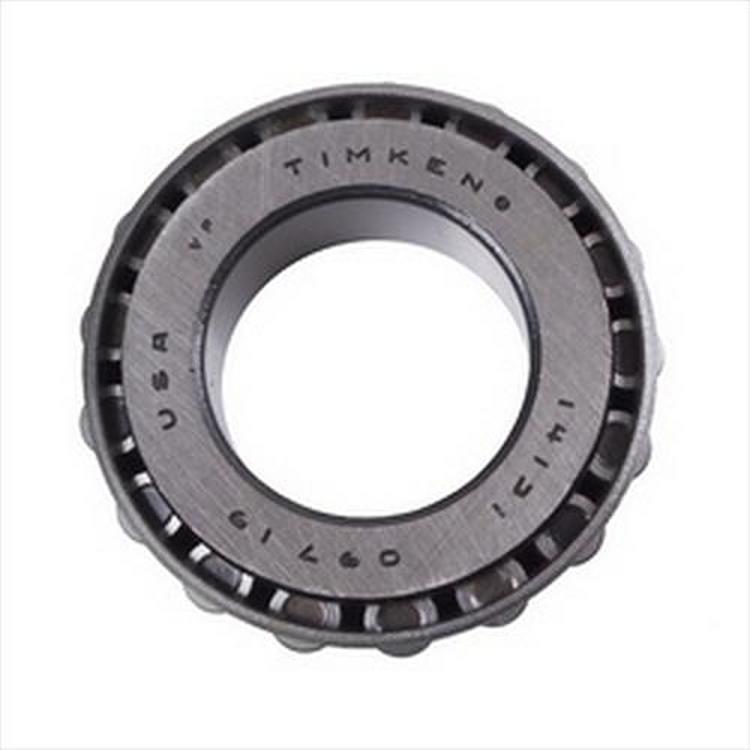

Omix-ADA part number 18670.06 is an output shaft bearing for the Dana 20 transfer case. It is a replacement bearing made to original specifications and carries a limited five year warranty. Confirm fit for your vehicle’s year, model and trim before ordering.
Compare the part number stamped on the bearing you removed with 18670.06 before ordering, since no vehicle is tied to this number.
Key features
- Replacement output shaft bearing for the Dana 20 transfer case
- Built by Omix-ADA to original specifications
- Limited five year warranty
- Part number 18670.06 with UPC 804314005108
Recognizing a worn bearing
A transfer case output shaft bearing supports the shaft as it turns and carries load from the gears and driveshaft. When it wears, the shaft can wobble slightly, and the case may make a whining or grinding noise that changes with speed. Shifting between modes can also feel rough when the bearing is worn.
Inspect the bearing whenever the case is open for another repair. Turn the shaft by hand and check for roughness, play or heat discoloration on the race. Seals and the output yoke nut are often replaced in the same job because they are already exposed during removal. Clean the housing and confirm the new bearing seats fully before reassembly.
- Record the old bearing part number before removal
- Replace the output seal if it shows leakage
- Check the case bore for scoring or wear
Specifications
| Brand | Omix-Ada |
|---|---|
| Part number | 18670.06 |
| UPC | 804314005108 |
| Component | Output shaft bearing |
| Transfer case | Dana 20 |
| Fit type | Direct fit |
| Warranty | Limited five year warranty |
Vehicle fitment
The bearing is not tied to any vehicle here. Dana 20 refers to the transfer case, so match the case in your vehicle before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
One output shaft bearing, part number 18670.06.
