Mountain Off Road Enterprises 2 -1/2 Inch Antiwrap Spring Perches – 98104

Mountain Off Road Enterprises

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Mountain Off Road Enterprises 2.5 inch antiwrap spring perches
  • Part number 98104, weld-on, supplied in pairs
  • H.D. 1/4 inch thick steel, 7 inch long

Description

Overview

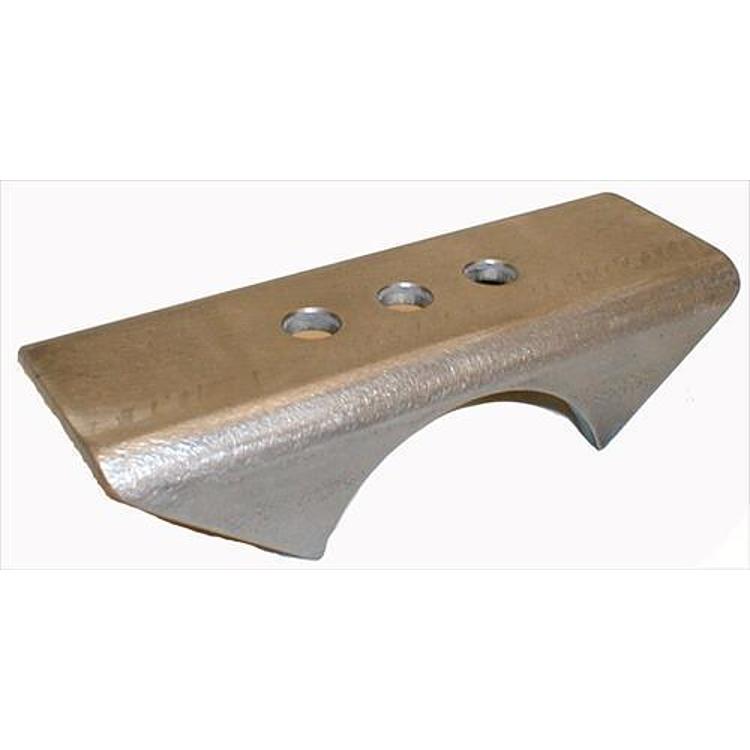

Mountain Off Road Enterprises’ 2 -1/2 Inch Antiwrap Spring Perches, part number 98104, are weld-on spring mounts for leaf spring axles. They measure 2.5 inch wide and 7 inch long, with an anti-wrap design meant to limit axle wrap.

The perches have three holes for the center bolt, so the axle can be placed where you want it. The steel is H.D. 1/4 inch thick, and the perches come in pairs. They are a universal fit.

Key features

  • Anti-wrap design, 7 inch long
  • Three center bolt holes for axle placement
  • H.D. 1/4 inch thick steel
  • Weld-on mounts supplied in pairs

Welding and mounting tips

Antiwrap perches are welded to the axle, so the weld quality decides how well the perch carries load. Clean the axle and perch surfaces to bare metal, then tack and check the square and spacing before the full weld. Using the three center bolt holes, choose the axle position that gives the link and spring geometry you want, and mark it before welding. Weld both sides of each perch and let the axle cool naturally to limit distortion. Inspect the welds after the first few trail runs for cracks, especially at the perch corners where flex is greatest. Keep the spring and shackle hardware in good condition too, because the perches control spring position but do not replace worn bushings or shackles.

Specifications

Brand Mountain Off Road Enterprises
Part number 98104
UPC 815572020215
Width 2.5 inch
Length 7 inch
Steel H.D. 1/4 inch thick
Center bolt holes 3
Mounting Weld-on
Quantity Pairs

Vehicle fitment

Universal fit, so confirm the spacing and axle placement for your leaf spring setup before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The perches are weld-on mounts, so welding is needed to attach them. The three center bolt holes let you place the axle where you want it on the perch.

What’s included

Perches, supplied as pairs.

Not included: Welding equipment is needed for installation and is not part of this item.

SKU: MRE98104 Category:

Specification

Shipping weight 4.00 lbs
Package dimensions 6.00 × 6.00 × 4.00 in
brands

Questions & Answers

Are these antiwrap perches weld-on or bolt-on?

They are weld-on spring mounts, so welding is needed for installation. The perches measure 2.5 inch wide and 7 inch long.

What size are the 98104 perches?

The perches measure 2.5 inch wide and 7 inch long, made of H.D. 1/4 inch thick steel. The 2.5 inch width is the 2 -1/2 Inch size, and each perch has three center bolt holes for axle placement.

Are the perches supplied as pairs?

Yes. Perches come in pairs, each with three holes for the center bolt and an anti-wrap design. Plan welding on both perches of the pair before mounting the axle.

How do I know whether antiwrap perches are needed?

Antiwrap perches are generally used when axle wrap under acceleration or braking becomes a problem. If the axle twists noticeably under hard throttle or braking, they can help limit that movement. Check that the other suspension links are in good condition at the same time.
