Rubicon Express Spring Plate Universal 2.5 Inch Wide/ Single – RE2050

Rubicon Express

Shop Rubicon Express Leaf Spring Plates on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rubicon Express RE2050 U-bolt skid plate for 2.5-inch wide springs
  • Works front or rear on axles up to 3.25 inches in diameter
  • Built-in threaded mounts for shock mounts or sway bar end links
  • Black powder coat; UPC 614901440027

Description

Overview

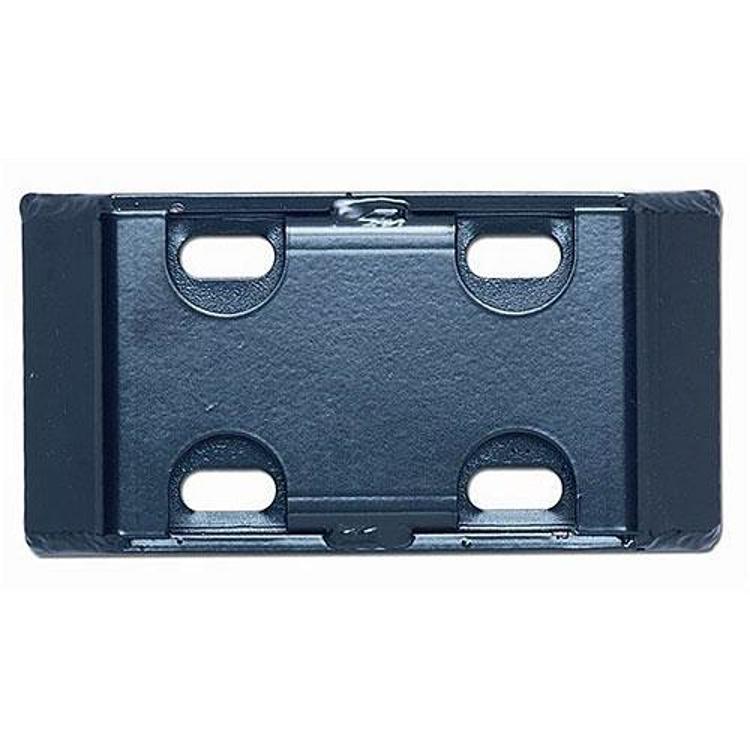

The Rubicon Express RE2050 is a universal U-bolt skid plate for 2.5-inch wide springs. It works on the front or rear of axles up to 3.25 inches in diameter and accepts U-bolts up to 9/16 inch.

It has built-in threaded mounts and hardware for shock mounts or sway bar end links, and a built-in skid to protect the bolts. It is finished in black powder coat.

Key features

  • Built-in skid to protect the bolts
  • Fits 2.5-inch wide springs
  • Works on axles up to 3.25 inches in diameter
  • Accepts U-bolts up to 9/16 inch
  • Built-in threaded mounts for shock mounts or sway bar end links
  • Black powder coat finish

Protecting the axle under the spring

A skid plate mounts under the spring and sits between the axle and the ground. Its main job is to take the hit when the underside of the axle meets rocks, ledges or ruts, so the U-bolts and spring seat stay out of harm’s way.

Mounting and clearance matter as much as the plate itself. Check that the skid clears the brake lines, the differential cover and any sway bar links before driving. Shock mounts and end links attached to the plate should be inspected regularly, since they carry load as the suspension moves.

  • Tighten U-bolt nuts after the first few trail runs
  • Look for bent edges or cracked welds after rock crawling
  • Keep brake lines clear of the plate edges
  • Grease any pivot points that the plate supports

Specifications

Brand Rubicon Express
Part number RE2050
UPC 614901440027
Spring width 2.5 inches
Axle diameter Up to 3.25 inches
U-bolt size Up to 9/16 inch
Finish Black powder coat
Fitment Universal fit

Vehicle fitment

It is a universal fit skid plate, so no specific vehicle is named. It works on the front or rear when the axle is up to 3.25 inches in diameter and the spring is 2.5 inches wide.

Confirm your vehicle’s year, model and trim before ordering, and check the axle diameter and U-bolt size.

SKU: R/ERE2050 Category:

Specification

Shipping weight 7.00 lbs
Package dimensions 10.00 × 6.00 × 6.00 in
brands

Questions & Answers

What axle diameter does the RE2050 take?

It works on axles up to 3.25 inches in diameter, on the front or rear. Measure the axle tube before ordering to confirm it falls within that limit.

What spring width does the RE2050 suit?

It is made for 2.5-inch wide springs and accepts U-bolts up to 9/16 inch. Check your spring width and U-bolt size before buying.

Does the RE2050 have mounts for other parts?

Yes. It has built-in threaded mounts and hardware for shock mounts or sway bar end links, so those parts can be attached to the plate.

Should U-bolts be re-torqued after a skid plate goes on?

Yes. Re-check the U-bolt nuts after the first few trail runs, because the spring and plate settle under load. Inspect the threads as you tighten and replace any nut that feels rough or stretched.
