Overview

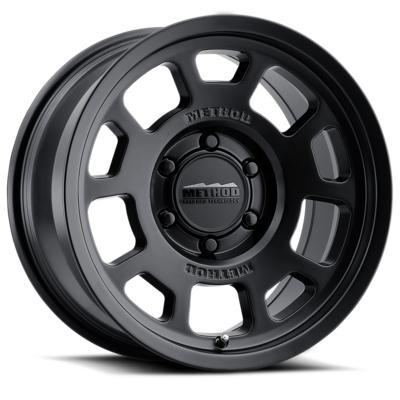

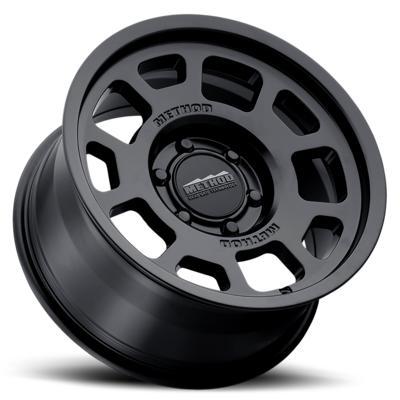

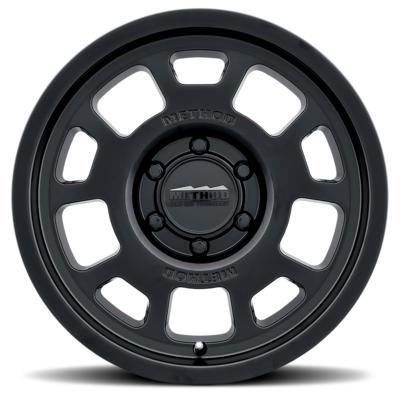

Method’s MR705 17×8.5 in matte black uses a 5 on 5 bolt pattern and carries part number MRWMR70578550500. The split 5-spoke face with ten windows gives it a distinct look, and the MR705 Bead Grip series is aimed at trail drivers who air down.
Airing down widens the tire footprint, which can improve grip on soft or loose surfaces and smooth the ride over rock. Method says its patented Bead Grip technology grips the tire bead at low pressure. The wheel is built from solid A356 aluminum with T6 heat treatment, and Method rates it at 2650 to 3640 lbs.
Key features
- Five split spokes, ten windows, and a debossed METHOD logo across the face
- Bead seats with an aggressive safety hump to limit de-beading
- Patented Bead Grip design that engages the tire bead at low pressures
- Inner lip reinforced with a design carried over from Method’s MRW race wheel
- Snap-in center cap marked with an embossed Bead Grip logo; push-through cap made for 8 lug use
Low-pressure trail driving
Running lower tire pressure widens the contact patch, which helps grip on sand, mud and loose rock. The trade-off is heat and sidewall flex at speed, so air back up before returning to pavement and keep trail speeds moderate while the tires are soft.
Bead retention matters most at low pressure. Wheels with a safety hump help hold the tire on the rim if it loses pressure suddenly, but a tire that slips at the bead still needs a careful reinflation. Check the bead seat after each airing down session and carry a gauge and a compressor.
- Air up before highway speeds
- Check bead seating after airing down
- Carry a gauge and a portable compressor
- Inspect the inner lip after rock crawling
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR70578550500 |
| Series | MR705 Bead Grip |
| Wheel diameter | 17 inches |
| Wheel width | 8.5 inches |
| Offset | 0 |
| Backspacing | 4.75 |
| Center bore | 72 |
| Bolt pattern | 5 on 5 |
| Style | Split Spoke |
| Finish | Matte Black |
| Construction | Solid A356 aluminum, T6 heat treatment |
| Load rating | 2650 to 3640 lbs |
Vehicle fitment
Method lists no vehicles for this wheel. The Universal Fit tag is general and does not confirm a match, so measure your hub and compare the 72 center bore and 0 offset before buying.
The hub centric note refers to common applications, not a named vehicle. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Verify the 72 center bore against your hub, since a mismatch can affect centering. Inflate with a gauge and stay within your tire’s low-pressure guidance, because the Bead Grip design is meant for reduced-pressure running.
What’s included
The wheel has a snap-in center cap with an embossed Bead Grip logo, and a push-through cap made for 8 lug use. Lug nuts and valve stems are not included.
Not included: Tires are needed to mount this wheel and are not included.
