Overview

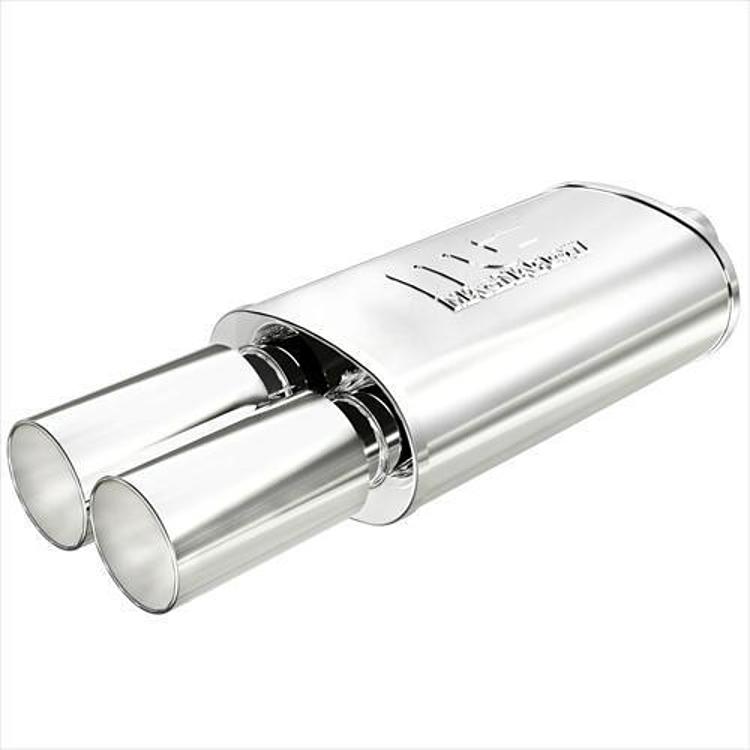

The MagnaFlow 14816 is a stainless steel street performance muffler with tips. It has a centered 2.25 Inches inlet and a dual offset 3.5 Inches outlet, in a straight-through design. It is a universal fit design, so measuring your exhaust is the way to confirm it suits your setup.
The muffler is built for high tech street or race imports, with materials and tuning matched to import engine needs. Tip and body choices let the look match the owner’s taste. Tips are included with this model.
Key features
- Straight-through design
- Centered 2.25 Inches inlet
- Dual offset 3.5 Inches outlet
- Stainless steel construction
- Tips included with the muffler
- Import engine tuning, per the brand
Routing around a dual offset exit
A dual offset outlet puts the exit off center, so the tailpipe needs to be routed with that position in mind. Hangers should hold the can so the offset exit stays where you planned, and the rear pipe should be checked for rubbing against the frame or spare tire. Small changes in hanger position can move the exit noticeably.
Stainless steel is a sound material for exhaust work, though it can be harder to bend and weld than mild steel. Use a shop or a skilled installer if you lack the tools. Keep track of how the pipe sits as you tighten, because strain on the joints can crack welds over time.
- Dry fit the whole run before final welds
- Check exit position after tightening
- Use isolators to reduce vibration
Specifications
| Brand | MagnaFlow Exhaust |
|---|---|
| Part number | 14816 |
| UPC | 841380003515 |
| Muffler type | Straight Through |
| Material | Stainless Steel |
| Inlet location | Centered |
| Outlet location | Dual Offset |
| Tube size (inlet/outlet) | 2.25 Inches/3.5 Inches |
| Tips | Included, per the title |
Vehicle fitment
It is a universal fit design with no vehicle years or models tied to it. Match the 2.25 Inches inlet and 3.5 Inches outlet to your pipe before choosing it.
The muffler is tuned for import engine use. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Expect to step the pipe from 2.25 Inches to 3.5 Inches, which needs a transition section. Plan hanger locations around the dual offset outlet before tightening the clamps.
What’s included
Tips come with this model. Tip and body options let you change the style, so check the package contents before installing.
Not included: Connecting pipe, clamps and hangers are needed for installation.
