Overview

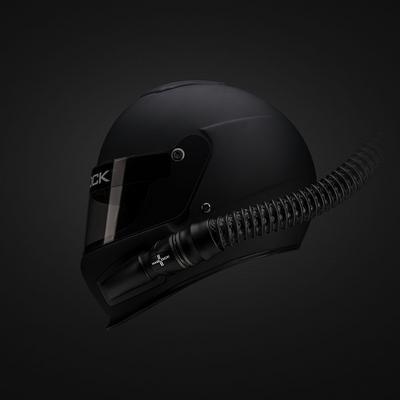

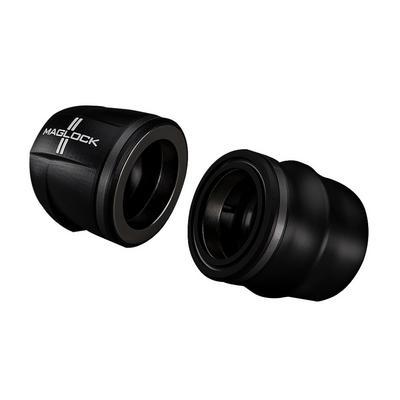

The Maglock Air Kit, part number MLA-1000, is a magnetic air connector made by Maglock Technologies that joins a racing helmet to a forced air hose. The helmet side and hose side units form a magnetic bond that can be separated quickly.
The connection holds firmly through rough rides, with nearly 20 lbs of straight pull force, and a single hand with light off-axis pressure releases it. The quick release lets the driver disconnect quickly. The connector is designed to break away if there is a hot extract.
Key features
- Rare earth magnets create a solid, sealed bond between the air hose and helmet
- About 20 lbs of straight pull force.
- Quick release that a single hand can separate
- Designed to break away when there is a hot extract
- Injection molded, fire-resistant nylon housing
- Roof dock, dust cap and visor decal included
- It is built for racers who run forced air systems in open wheel, closed wheel and off-road racing.
Using a forced air connection safely
A forced air connection works best when the helmet side and hose side units are kept clean and free of debris. Check the magnets for chips, cracks or housing wear before each session, and wipe away grit that could affect how the units meet. Keep the connector clear of metal objects and tools that might pull on the magnets during handling.
The connector is meant to separate under a quick angled pull, so test the release in a safe spot before racing. Route the air hose so it does not tug the helmet side unit when you move your head, and check that the roof dock and dust cap are secure before you go out. Store the kit in a dry place away from heat.
- Clean the magnet faces and housing after each use
- Check the dust cap and visor decal for wear
- Test the release with the hose connected before a session
- Keep spare screws and the tool kit together
Specifications
| Brand | Maglock Technologies |
|---|---|
| Part number | MLA-1000 |
| Product | Air Kit magnetic air connector |
| Connection | Helmet to forced air hose |
| Magnets | Rare earth |
| Housing | Injection molded, fire-resistant nylon |
| Straight pull force | Nearly 20 lbs |
| Release | Single hand, or light off-axis (angled) force |
| Design | Designed in California, patent pending |
| Warranty | One year from date of purchase, repair or replacement at Maglock’s option |
Vehicle fitment
It is a universal fit because it connects a helmet to a forced air hose, and the connection does not depend on a particular vehicle model.
Compatibility depends on your helmet and forced air hose, so check that both match the helmet side and hose side units before installing.
Installation notes
The kit includes a roof dock, extra screws and a tool kit for mounting.
What’s included

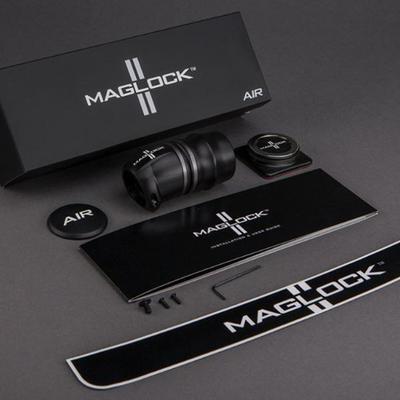

The kit includes the helmet side Maglock Air, the hose side Maglock Air, a roof dock, a dust cap, a visor decal, extra screws and a tool kit.
