Overview

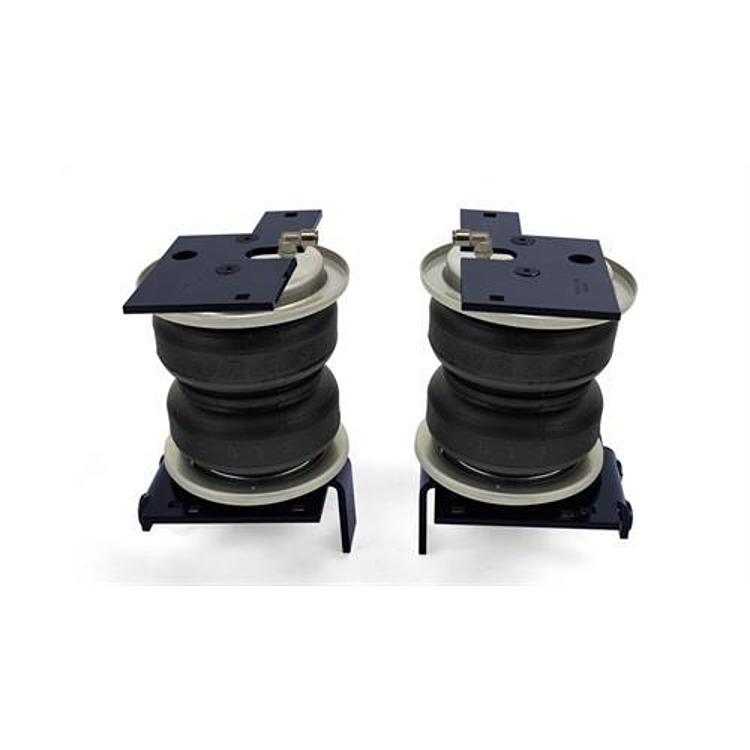

The AirLift LoadLifter 5000 Ultimate Plus, part 89200, is a rear air bag kit for the 2004–2014 Ford F-150. AirLift rates it at a 5000 lbs load leveling capacity, with air pressure adjustable from 5 to 100 psi.
The internal jounce bumper sits inside the springs to absorb shock. The kit is designed to reduce harsh jarring on rough roads when run at zero air pressure, and installation takes less than 2 hours.
Key features
- Rear-position air bag kit

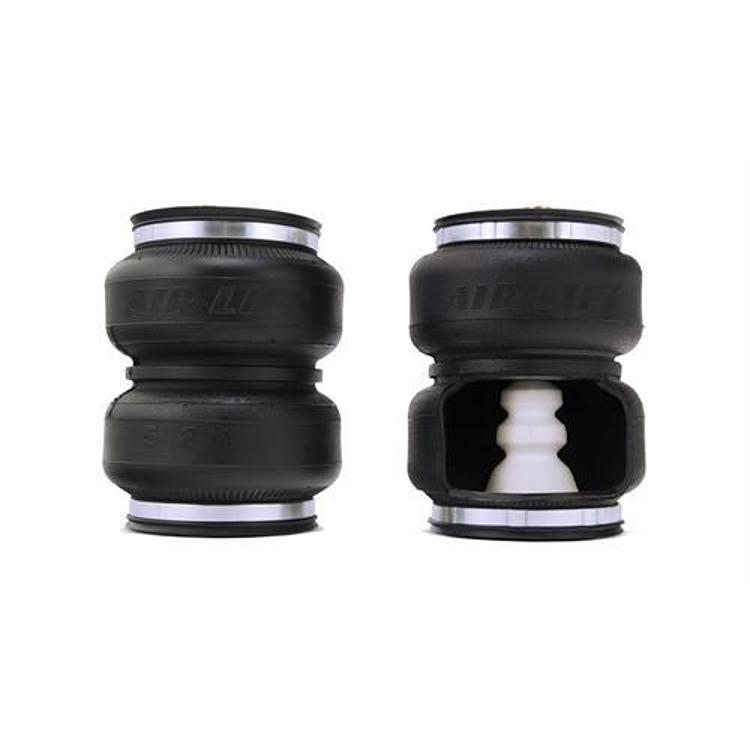

- Internal jounce bumper inside the springs
- Air pressure adjustable from 5 to 100 psi
- Load leveling capacity of 5000 lbs
- Can run at zero air pressure.
- Maintenance free.
Load and pressure basics
Load leveling air bags are adjusted by air pressure, so the rear height and firmness change with the cargo and trailer tongue weight. Set pressure with the normal load in the truck, then check that the rear sits level side to side. A rear that tilts or rides low on one side often points to uneven pressure or a leaking bag.
An internal jounce bumper sits inside the springs, so the bag can keep working as a bump stop when pressure is low. Routine checks should include the bag surface, mounting brackets, and fittings. Keep the compressor and any gauges in good order so pressure readings stay consistent.
- Set pressure with the normal load in place
- Check side-to-side level after each adjustment
- Inspect bags for abrasion from contact with the frame
Specifications
| Brand | AirLift |
|---|---|
| Part number | 89200 |
| UPC | 729199892004 |
| Position | Rear |
| System type | Air bag |
| Air pressure range | 5 to 100 psi |
| Load leveling capacity | 5000 lbs |
| Install time | Less than 2 hours |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2004–2014 Ford F-150 in FX4, Harley-Davidson Edition, King Ranch, Lariat, Lariat Limited, Limited, Platinum, STX, 60th Anniversary Edition, XL and XLT trims.
The 2015–2018 F-150 uses part 89284 and is not covered by this kit. Other model years are not covered. Check your year, model and trim before buying.
Installation notes
Installation takes less than 2 hours. Follow the kit’s written instructions for the rear mounting, and check torque specs in them before tightening.

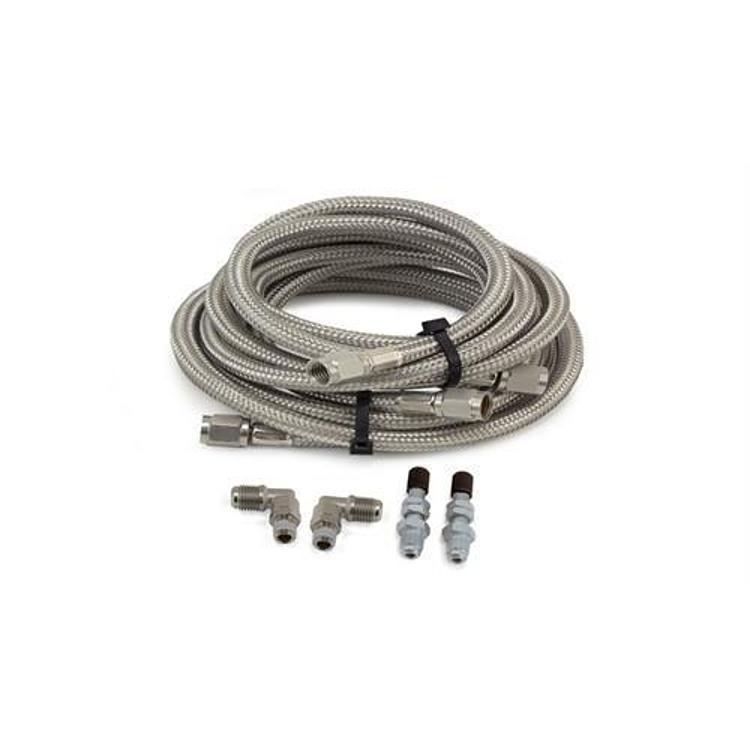

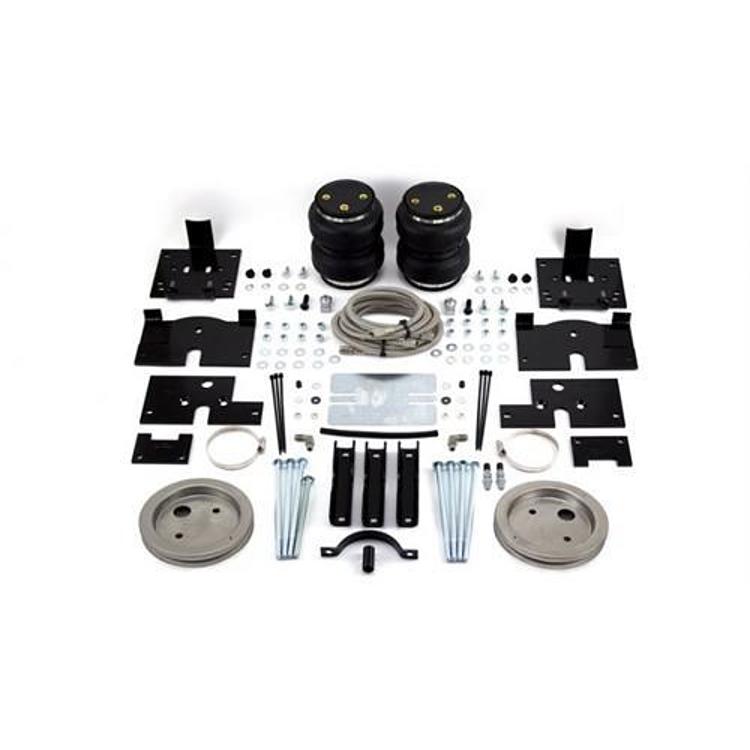

What’s included
Check the package contents against your installation before starting.
