Overview

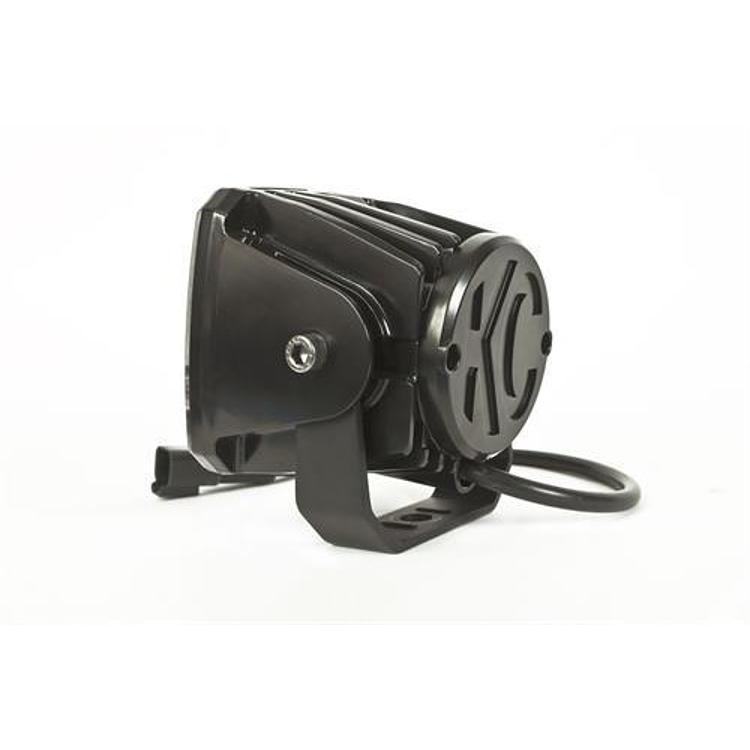

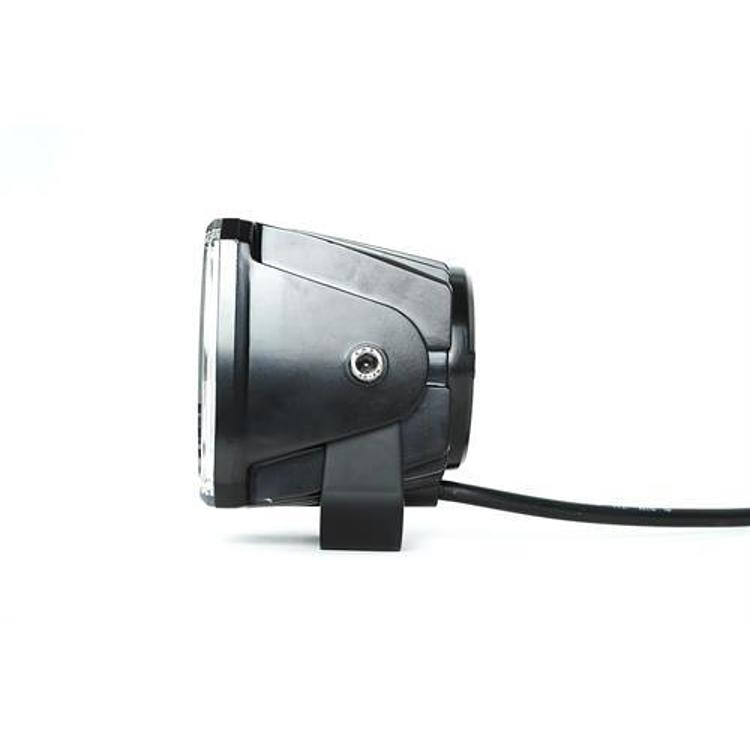

The KC HiLites Gravity LED Driving Light, part number 1431, is a compact, black, rectangular LED auxiliary light, also sold as the Gravity LED G34. It is universal fit and suits Jeeps, trucks, SUVs, ATVs, UTVs and motorcycles.
The G34 driving beam gives both distance and width for overall visibility. Its fog beam is an ultra-wide pattern with a sharp top cut-off, which KC HiLites says improves visibility while reducing glare. The small 3 inch by 4 inch aluminum housing suits front and rear bumpers, A-pillars and roof racks.
Key features
- Driving beam pattern with both distance and width
- Fog beam with an ultra-wide pattern and a sharp top cut-off
- Compact 3 inch by 4 inch aluminum housing
- Clear lens with LED bulb type
- Bracket mounting
- Described by KC HiLites as street legal
Mounting and aim
Auxiliary lights work best when the beam sits level and unobstructed, so mounting height and angle matter as much as the light itself. On a bumper, keep the housing clear of the bumper edges and any fog lamp openings. On an A-pillar or roof rack, check that doors, mirrors and hatch swings will not strike the bracket or cable.
A driving and fog combination reaches both distance and width, but aim decides how much of the beam lands on the road and how much lights the shoulder. Aim on level ground, then check again after a few trips because brackets can loosen with vibration. Pairing the light with a fuse, relay and switch protects the circuit and makes it easy to turn off.
- Clear the bracket from doors and hatches
- Aim on level ground and recheck after a few trips
- Protect the circuit with a fuse and relay
Specifications
| Brand | KC HiLites |
|---|---|
| Part number | 1431 |
| UPC | 84709014315 |
| Model name | Gravity LED G34 |
| Color | Black |
| Housing | 3 inch by 4 inch aluminum |
| Lens color | Clear |
| Bulb type | LED |
| Light type | Driving light |
| Light shape | Rectangular |
| Mounting type | Bracket |
| Sold as | Kit |
| Size listed | 0 in to 10 in |
| Fitment | Universal Fit |
Vehicle fitment
No vehicle fitment applies. The light is universal fit, so it is not tied to one make, model or year. Its mounting areas are bumpers, A-pillars and roof racks.
Choose the mounting spot based on your vehicle’s bumper, pillar or roof rack, since the fit covers vehicle types rather than specific models.
Installation notes
Choose a spot where the bracket and the 3 inch by 4 inch housing clear your bumper, A-pillar or roof rack before mounting. Run the wiring through a fused relay, and check local road-use rules for auxiliary lights on road vehicles.
What’s included
The light is sold as a kit with a clear lens and bracket mounting.
Not included: Check the package for a wiring harness, switch or relay before installing.
