Overview

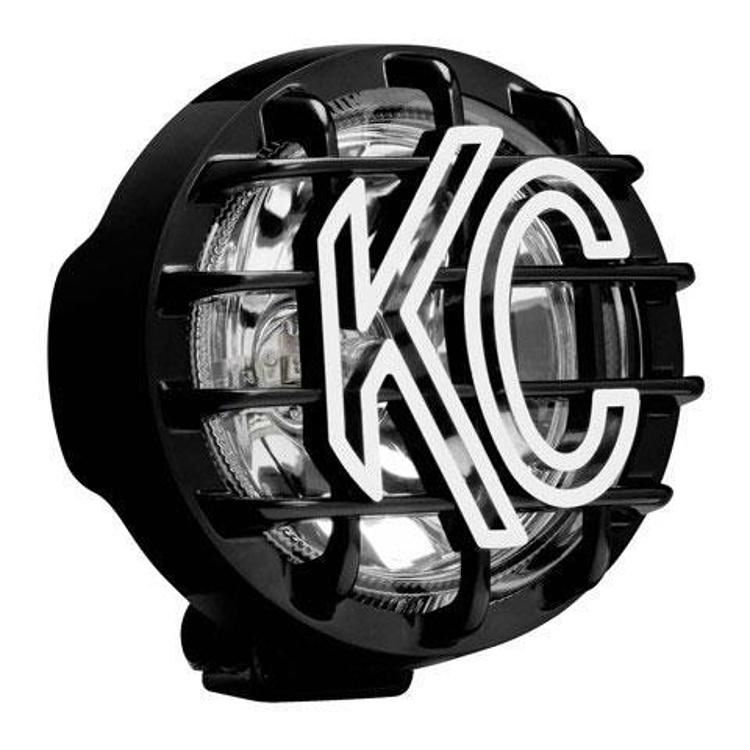

The KC HiLites 4 Inch Driving Light System 55w (part 490) is a 4 inch round driving light with a replaceable 55 watt halogen bulb. It is a universal-fit light, not named for specific vehicles, and it comes fully assembled and ready to mount.
The reflector is computer designed for a driving beam pattern. The light has a glass lens and a removable black ABS stone guard. It uses quartz halogen bulbs and includes a pre-terminated relay wiring harness.
Key features
- Replaceable 55 watt halogen bulb
- Computer designed reflector optics
- Glass lens
- Removable black ABS stone guard
- Pre-terminated relay wiring harness
- Fully assembled and ready to mount
Relay wiring and bulb care
A driving light draws enough current that running it through a relay is a common practice. The relay lets the switch carry only a small control load, while the light is powered directly from the battery through a fuse. Keep the relay in a dry location, away from the engine, and use clean crimps on every connection to avoid resistance and heat.
Halogen bulbs run hot and are sensitive to oils from bare fingers. Let the bulb cool before touching it, and handle the quartz capsule with gloves or a clean cloth. Inspect the glass lens and stone guard after rough trips, since a cracked lens lets moisture reach the reflector.
- Use a fuse close to the battery
- Keep relay connections dry and tight
- Handle bulbs only when cool
Specifications
| Brand | KC HiLites |
|---|---|
| Part number | 490 |
| UPC | 84709004903 |
| Size | 4 inch round |
| Bulb | 55 watt quartz halogen |
| Lens | Glass |
| Dimensions | 6W x 2-1/2H x 2-1/2D |
| Mounting | Bracket kit |
| Beam | Driving |
| Included | Relay wiring harness, installation hardware, stone guard |
Vehicle fitment
This driving light is universal fit, so it is not tied to particular years, makes or models. Choose a mounting spot that fits the 4 inch round housing and bracket.
Installation notes
Use the pre-terminated relay wiring harness with the included installation hardware, and fuse the circuit as the relay requires. Check local road-use rules for driving lights before fitting them on a vehicle used on public roads.
What’s included
The system includes the relay wiring harness, installation hardware and a removable black ABS stone guard.
