Overview

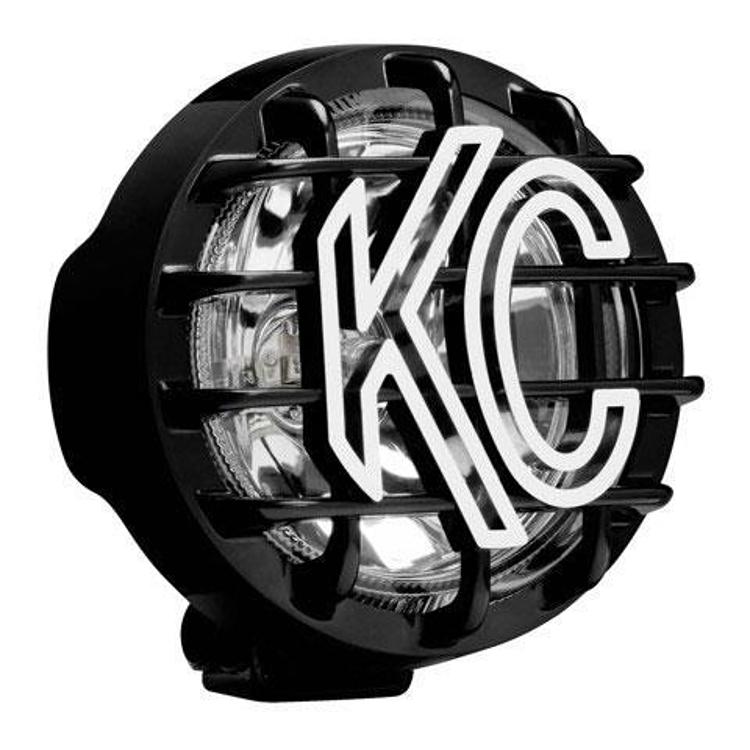

The KC HiLites 4-inch driving light, model 1490, is a single round driving light designed for bumper openings and other universal-fit mounts. It pairs a replaceable 55w halogen bulb with computer designed reflector optics and a glass lens to produce a driving beam pattern.
The Apollo Series housing is black Polymax with a flat profile and polished reflectors, made in the USA. This light uses a two-axis mount for straightforward aiming after installation. It is universal fit rather than built for one vehicle.
Key features
- Round black powder coated steel housing measuring 4 inches
- Replaceable 55w halogen bulb
- Computer designed reflector optics for a driving beam
- Clear glass lens
- Removable black ABS stone guard included
- Two-axis mount for aiming
- Designed for mounting into bumper openings
- Sold as a single light
Aiming and mounting tips
A round driving light is only as good as its aim. After mounting, set the two-axis bracket so the beam sits level and reaches the road or trail ahead, then tighten the bracket before driving. Check the aim on a wall at night, since a small tilt can throw the light into the hood or the ground.
Halogen lights run warm, so keep the wiring clear of the housing and the bulb area. Replace a failed bulb with the matching 55w halogen type rather than a different wattage, and handle the bulb by the base. The stone guard helps protect the glass, but check it after rough trails, since loose guards can rattle against the lens.
- Aim after the bracket is tight
- Keep halogen wiring clear of heat
- Replace bulbs with the same type
- Check the stone guard after trails
Specifications
| Brand | KC HiLites |
|---|---|
| Model | 1490 |
| UPC | 84709014902 |
| Diameter | 4 inches |
| Light shape | Round |
| Housing | Black powder coated steel |
| Bulb type | Halogen, replaceable, 55w |
| Lens | Clear glass |
| Beam | Driving |
| Mounting type | Bracket, single, two-axis |
| Sold as | Single |
| Fitment | Universal fit |
Vehicle fitment
It is universal fit, so it is not built for a specific year, model or trim. Measure your bumper opening and confirm the 4-inch round mount suits it before installing.
Universal fit means no vehicle is named for this light, so check mounting depth and wiring on your own vehicle.
Installation notes
Mount the light through a bumper opening, then set the two-axis bracket and aim the beam. Driving lights of this type should be run through a fused relay, and local road-use rules for auxiliary lights apply before using them on public roads.
What’s included
One 4-inch driving light with replaceable 55w halogen bulb and a removable black ABS stone guard.
Not included: Wiring, relay and switch are not included with the light, so plan those parts before installing.
