Overview

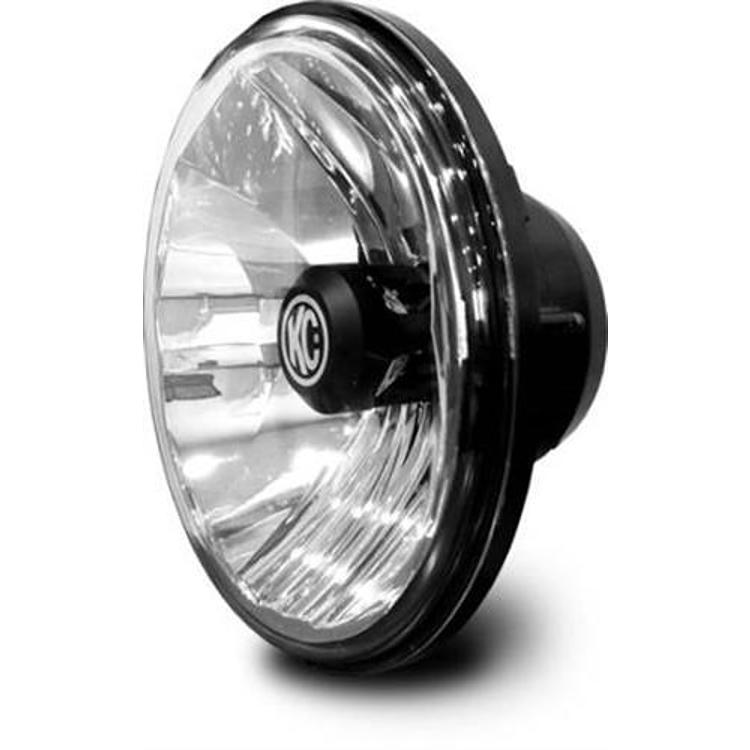

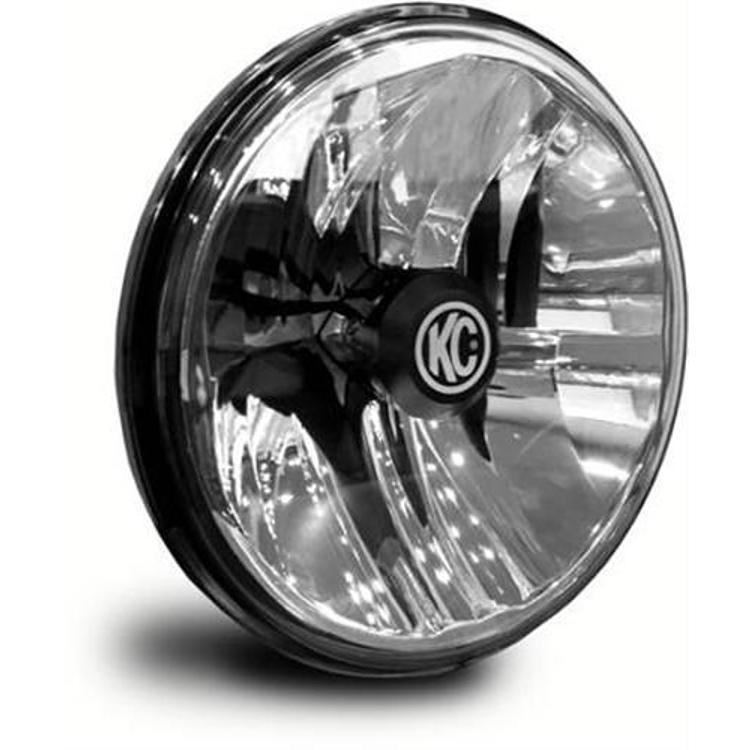

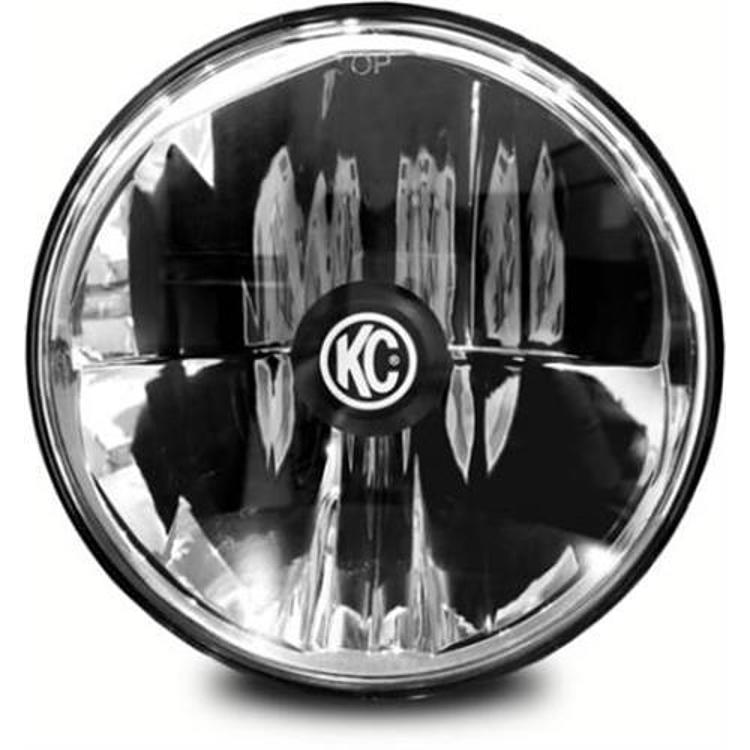

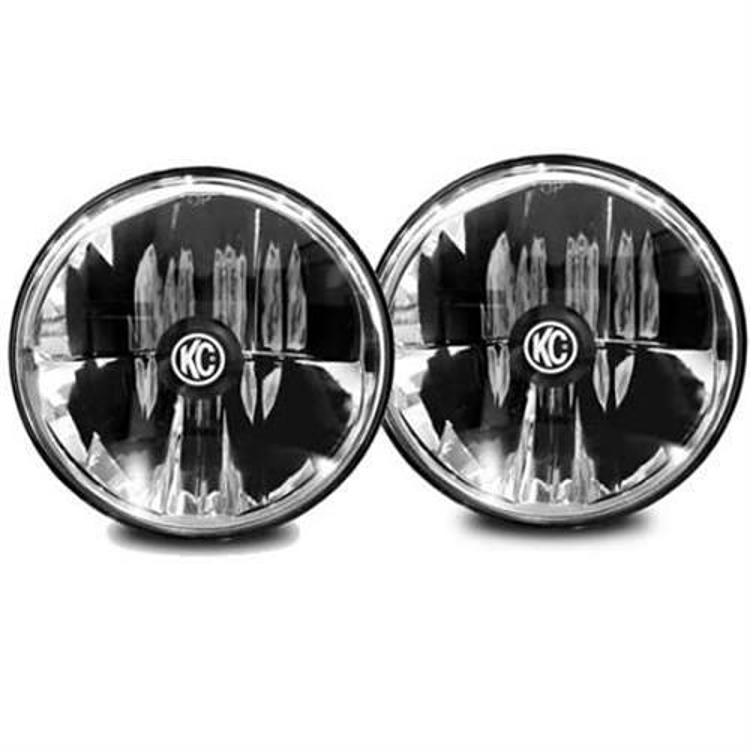

The KC HiLites Gravity LED 7 inch Headlight Kit (part 42361) is a clear 7 inch round LED headlight sold as a pair. It is DOT compliant and combines low beam, high beam and day running lamp functions in one assembly.
The headlight uses patented GRD LED technology and anti-flicker capacitors. Its polished reflector optics give clear visibility, and the housing is precision die-cast aluminum. It is designed for direct fit in 7 inch round housings.
Key features
- Patented GRD LED technology
- High and low beams with built-in DRL
- Anti-flicker capacitors
- Precision die-cast aluminum housing
- Polished reflector optics
- Full plug-n-play wiring
Heat and wiring care
LED headlights produce less heat at the lens than halogen units, but the housing still needs clean, dry connections to perform well. The power plug should be fully seated, and the wiring should be secured so it does not rub against the engine bay or the bumper. A rubber boot over the connector helps keep moisture away from the contacts.
The lens and seal are the parts that most often need attention. Wipe the lens with a soft cloth and mild cleaner, and look at the gasket for cracks or moisture after washing. Aiming should be checked after installation and again after any front end work, since a small change in mounting can shift the beam.
- Keep the connector dry and fully seated
- Check the seal after heavy washing
- Re-check aim after front end work
Specifications
| Brand | KC HiLites |
|---|---|
| Part number | 42361 |
| UPC | 84709423612 |
| Size | 7 inch round |
| Lens | Clear hard coated polycarbonate |
| Housing | Precision die-cast aluminum |
| Power | 40 watts |
| Beams | Low, high and day running lamp |
| Certification | DOT approved |
| Sold as | Pair |
Vehicle fitment
This headlight is designed for direct fit in 7 inch round headlight housings. Fit depends on the housing, so match your housing diameter before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Full plug-n-play wiring is included, so the headlight connects without custom wiring. Use fused wiring for the 40 watt load, and check local rules for daytime running lamps before road use.
What’s included
The headlight assembly with LED and plug-n-play connection is included, sold as a pair.
