Overview

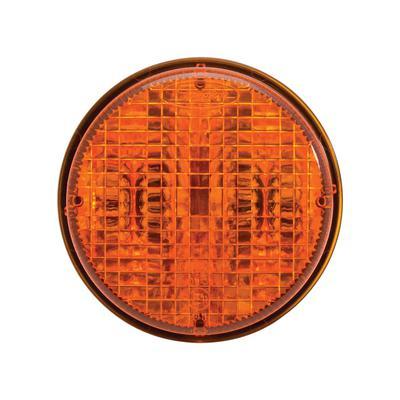

The JW Speaker Model 217 3-inch round LED turn signal (part 0345441) is a compact LED light that can be used as a turn signal, backup light, daytime running and front position light, rear fog light, or stop and tail light.
The housing is rust- and corrosion-resistant, and it suits demanding mining and construction jobsite work.
Key features
- 3-inch round housing
- LED light with several uses: turn signal, backup, DRL, front position, rear fog, stop and tail
- Rust- and corrosion-resistant
- The housing suits demanding jobsite conditions.
Mounting and wiring
Auxiliary lights work best when the mounting spot is solid and clear of moving parts. Choose a location with a clear view of the road and no obstruction from bumpers, brush guards or trail gear. Mount the housing so it stays level and cannot shift when the vehicle travels over rough ground, and use vibration-resistant hardware where possible.
Wiring is where most problems start. Run the power through a fuse close to the battery, and use a relay so the switch does not carry the full load. Route the cable away from heat, sharp edges and moving suspension parts, and seal the connections against water and dirt. A poor ground causes dim output, so attach the ground to clean bare metal.
Specifications
| Brand | JW Speaker |
|---|---|
| Part number | 0345441 |
| Model | 217 |
| Diameter | 3 inches |
| Shape | Round |
| Light source | LED |
| Functions | Turn signal, backup, DRL and front position, rear fog, stop and tail |
| Corrosion resistance | Rust- and corrosion-resistant |
Vehicle fitment
It is a lighting accessory that is not tied to one vehicle. Mounting location and wiring must suit the vehicle it is installed on.
Installation notes
Wire the light through a fused circuit, and use a relay where the function needs one. Check local road-use rules before using it as a turn signal, daytime running light or fog light.
What’s included
The product is the light itself. Not included: wiring and a relay to power it.
