Overview

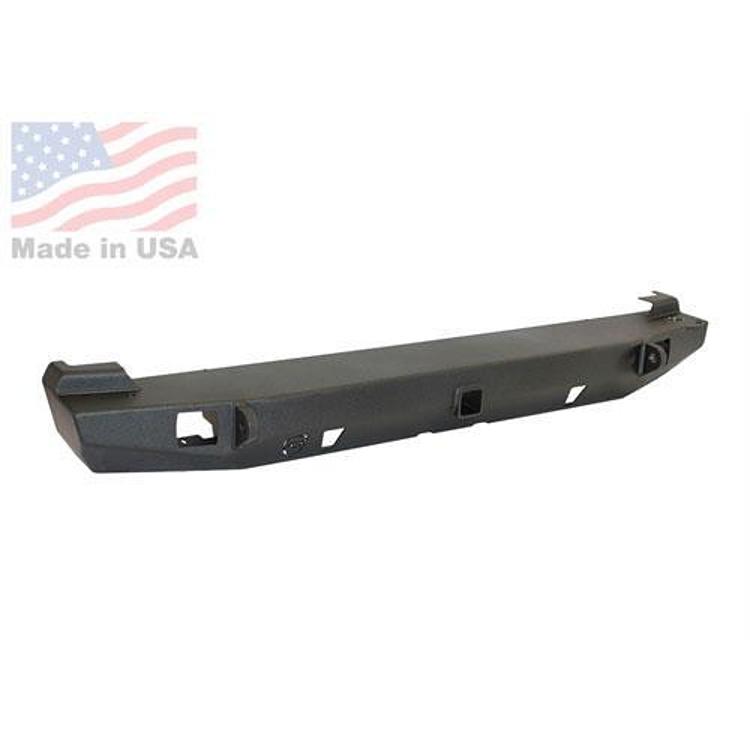

The JcrOffroad Vanguard XJRV-PC is a black powder-coated steel rear bumper for the 1984–2001 Jeep Cherokee XJ. It is a factory-replacement bumper with a bolt-on installation.
It is built from 3/16 inch plate that JcrOffroad says is CNC cut and CNC formed in the U.S. The bumper comes with 3/4 inch thick D-ring tabs, a built-in 2 inch receiver and provisions for reverse lights, and it is ready to accept the JcrOffroad Adventure Tire Carrier now or later. JcrOffroad backs it with a lifetime guarantee against breakage.
The bumper is designed for approach angle and overall clearance, and professional fabricators build it so the welds and overall fit hold up on the trail. The 3/4 inch thick D-ring tabs and the 2 inch receiver come standard. The Cherokee rear tire carrier can be added at installation or later, so a spare-tire setup does not have to be decided on day one.
Key features
- 3/16 inch steel plate, CNC cut and CNC formed
- Black powder-coat finish
- Built-in 2 inch receiver
- 3/4 inch thick D-ring tabs included
- Accepts 3X3 cube lights
- Built-in Hi-lift jack points
- Accepts the JcrOffroad Adventure tire carrier, sold with a separate part number
- Covered by a lifetime guarantee against breakage.
Choosing a rear bumper setup
A steel rear bumper does more than protect the back of the vehicle. It also sets the rear approach and departure line, carries recovery points and often supports a hitch or spare tire. Before you bolt one on, decide whether you want a receiver for towing, a mount for lights or a carrier for a spare, since adding those later can mean extra wiring or hardware.
Bumper bolts and mounting brackets take repeated load on rough trails, so check them after the first few outings. Look for cracked welds near the D-ring tabs and receiver, and confirm the bumper still sits square to the body. Wiring for reverse lights and cube lights should be run with protection where it passes near the frame.
- Decide on receiver and carrier needs first
- Check weld seams near the D-ring tabs
- Retorque mounting bolts after early trail use
- Protect wiring that runs to rear lights
Specifications
| Brand | JcrOffroad |
|---|---|
| Part number | XJRV-PC |
| UPC | 780456972914 |
| Product type | Rear bumper |
| Material | 3/16 inch steel plate |
| Finish | Black powder coat |
| Receiver hitch | Yes, built-in 2 inch |
| D-ring tabs | 3/4 inch thick, included |
| Light provisions | Accepts 3X3 cube lights; reverse-light provisions |
| Tire carrier | Not included; accepts JCR Adventure tire carrier |
| Fit type | Direct fit, bolt-on |
Vehicle fitment
It fits the 1984–2001 Jeep Cherokee (XJ).
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Installation is an easy bolt-on factory replacement with no cutting. Wiring is needed if you add lights in the reverse-light provisions.
What’s included
One Vanguard rear bumper with 3/4 inch thick D-ring tabs and a 2 inch receiver.
Not included: Cube lights and the JcrOffroad Adventure tire carrier, which are available separately.
