Overview

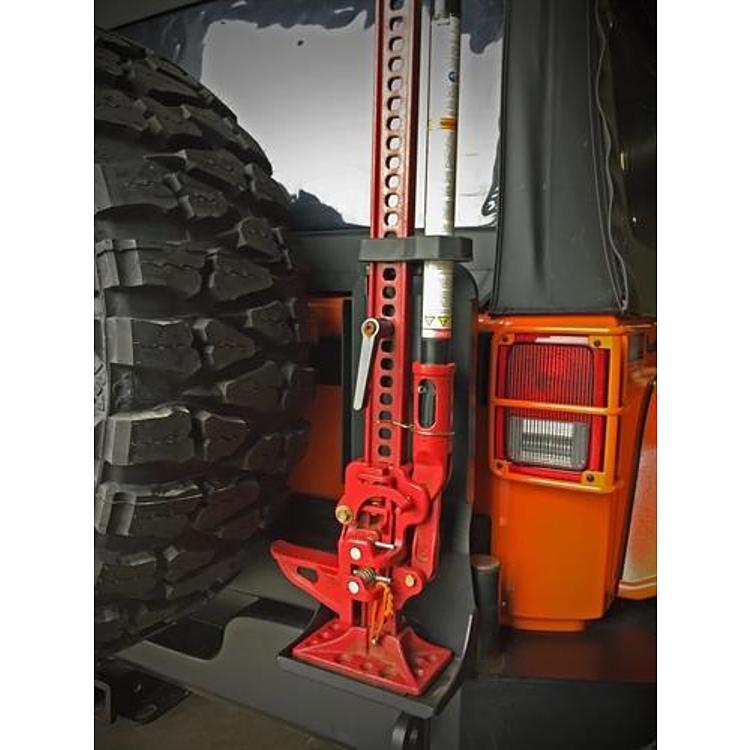

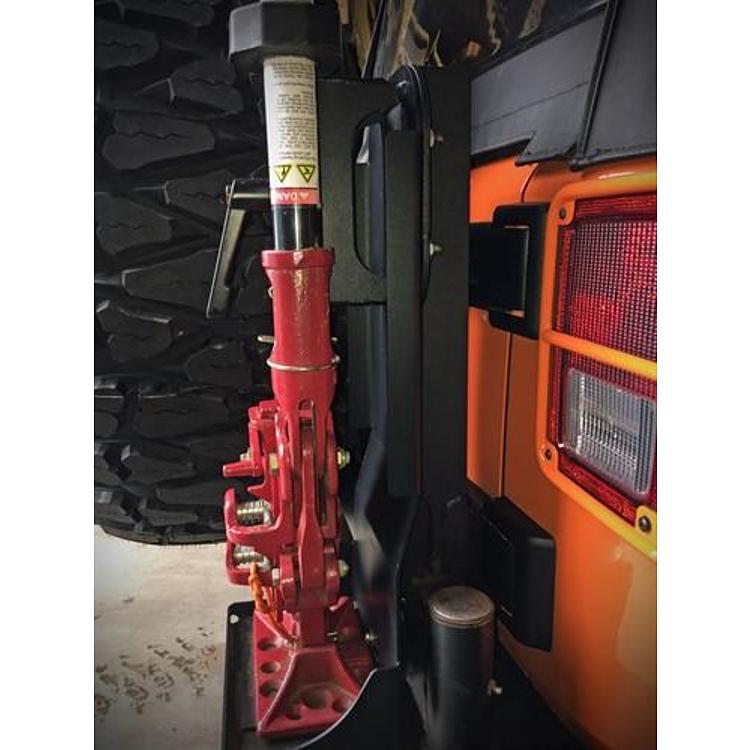

The Hyline Offroad Hi-Lift Jack Mount, part number 400.200.170, is a bracket that holds a Hi-Lift jack outside the vehicle. It is made for the Hyline Offroad JK swingout tire carrier and fits the 2007 to 2016 JK Wrangler, Rubicon and Unlimited. The mounting type is a tire carrier jack mount.
Using the mount requires the Hyline Offroad Accessory Mount Arm, part number HYL400.200.150, for proper installation. A plastic wear pad keeps the jack foot off the metal, and the bracket has a sturdy, clean design.
Key features
- Holds the Hi-Lift jack outside the vehicle on the swingout tire carrier
- Plastic wear pad buffers the jack foot from the mounting bracket
- Threaded handle makes it easy to remove and reinstall the jack
- Holes allow a cable lock or pad lock to secure the jack to the bracket
- Brackets are acid rinsed, zinc phosphate cleaned, e-coated and powder coated
- Lightly textured black finish
Keeping the jack secure
A jack that moves in its mount can damage paint and the carrier, and it can rattle loose on rough trails. The wear pad between the jack foot and the bracket helps prevent scratches and noise. Check the pad for wear as part of routine inspection, and replace it if it cracks, compresses or slides out of position.
Locks help deter theft, especially for an outdoor tire carrier mount. Use a cable or padlock through the holes and keep the key or combination somewhere safe. Re-tighten the threaded handle periodically and check the swingout carrier hinges and fasteners, since a loaded carrier puts stress on the hardware over time.
- Inspect the wear pad for cracks or slipping
- Use a cable or pad lock through the holes
- Re-tighten the threaded handle periodically
- Check carrier hinges and fasteners
Specifications
| Brand | Hyline Offroad |
|---|---|
| Part number | 400.200.170 |
| UPC | 400200170006 |
| Mount type | Tire carrier jack mount |
| Compatible models | 2 and 4-door models |
| Designed for | Hyline Offroad JK Swingout Tire Carrier |
| Finish | Textured black, powder coated over e-coat |
| Pad | Plastic wear pad |
| Handle | Threaded |
| Hardware | Included |
| Required companion part | HYL400.200.150 (Accessory Mount Arm) |
Vehicle fitment
It fits the 2007 to 2016 Jeep Wrangler JK, including Rubicon and Unlimited models. It is made for the Hyline Offroad JK swingout tire carrier. It does not cover the Wrangler YJ, TJ or LJ, the 2018 and later JL, or other Jeep models. Confirm your vehicle’s year, model and trim before ordering.
It does not cover the Wrangler YJ, TJ or LJ, the 2018 and later JL generation, or other Jeep models. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
All necessary hardware is included for installation. Proper installation requires part number HYL400.200.150, the Accessory Mount Arm, so have it on hand before you start. Because the mount holds a heavy jack outdoors, check that the swingout carrier is secure before loading the jack.
What’s included
Includes a plastic wear pad, a threaded handle and mounting hardware.
Not included: the Hi-Lift jack, the Hyline Offroad JK swingout tire carrier, and the Accessory Mount Arm (part HYL400.200.150).
