FUEL Off-Road Triton D691 Wheel, 22x10 with 8 on 170 Bolt Pattern – Red / Black / Milled – D69122001747

FUEL Off-Road

Shop FUEL Off-Road Wheels 22x10 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • FUEL Off-Road Triton D691 wheel, 22 Inches by 10 Inches
  • 8 on 170 bolt pattern, center bore 125, offset -18
  • Red and black finish with milled detail, aluminum construction
  • Part number MHTD69122001747
  • No vehicle years or models listed, Universal Fit label only

Description

Overview

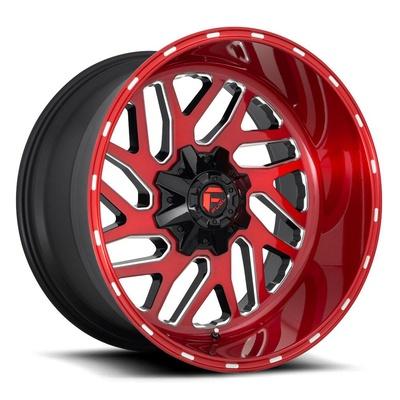

The FUEL Off-Road Triton D691 22×10 is an aluminum directional wheel with a red and black finish, a milled detail and an 8 on 170 bolt pattern. Part number MHTD69122001747 identifies this 22 Inch wheel, which is a Universal Fit design.

The 22 Inch diameter suits owners who want a larger off-road wheel. Its offset of -18, center bore of 125 and backspacing of 4.8 control how the wheel sits against the hub and clears brakes and suspension, so compare those figures with your current wheels first.

Key features

  • Directional style with a red and black finish
  • Milled finish detail
  • Aluminum construction
  • 22 Inch diameter and 10 Inch width
  • 8 on 170 bolt pattern
  • Offset of -18, center bore of 125 and backspacing of 4.8

Matching offset and backspacing

Offset and backspacing decide where the wheel sits in relation to the hub face and how much room it leaves for brake calipers, control arms and the inner fender. A lower offset pushes the wheel further outward, which changes stance and can reduce clearance to suspension parts. Backspacing measures how far the mounting face sits from the inner lip, so it is the number to compare when a caliper or shock body sits close to the back of the wheel.

A 22 inch wheel also changes tire fitment. Larger diameters usually run lower-profile tires with shorter sidewalls, which can make the tire more sensitive to rock strikes and pressure changes. Heavier setups add load to bearings and ball joints, so inspect those parts after the first few trail runs.

  • Measure caliper clearance before mounting
  • Check tire load ratings against the vehicle
  • Re-torque lug nuts after the first drive
  • Inspect wheel bearings when weight increases

Specifications

Brand FUEL Off-Road
Model Triton D691
Part number MHTD69122001747
Wheel diameter 22 Inches
Wheel width 10 Inches
Bolt pattern 8 on 170
Center bore 125
Offset -18
Backspacing 4.8
Style Directional
Finish Red/Black, milled
Construction Aluminum

Vehicle fitment

It is a Universal Fit wheel with no year, make, model or trim tied to it, so confirm fit for your vehicle’s year, model and trim before ordering. Compare the 8 on 170 pattern, 125 center bore and -18 offset with your hub first.

An 8 on 170 pattern will not fit hubs with a different bolt count or spacing. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Confirm the 8 on 170 bolt pattern and 125 center bore against the hub before mounting, and check that the -18 offset and 4.8 backspacing clear the calipers and suspension. Confirm the lug nut seat type before installation. Do not drive on a wheel that does not seat fully against the hub.

What’s included

This is a single wheel. Tires, lug nuts, center caps and valve stems are not part of the order.

Not included: Tires and mounting hardware are not part of this wheel.

SKU: MHTD69122001747 Categories: ,

Questions & Answers

Does the FUEL Off-Road Triton D691 22x10 fit my vehicle?

It is a Universal Fit wheel, so confirm fit for your vehicle's year, model and trim before ordering. Compare the 8 on 170 bolt pattern, 125 center bore and -18 offset with your hub before choosing it.

What is part number MHTD69122001747?

MHTD69122001747 is the part number for the FUEL Off-Road Triton D691 wheel that measures 22 Inches by 10 Inches, with a red and black finish and an 8 on 170 bolt pattern. The title also ends with the code D69122001747.

Is the wheel directional and what is it made of?

Yes, the Triton D691 uses a directional style, which means the design is meant to face one way on the vehicle. The wheel is made of aluminum and finished in red and black with a milled detail.

How should I care for a milled aluminum wheel?

Wash it with mild soap and water, then dry it so the milled areas do not hold grit. Avoid harsh acid cleaners and abrasive pads, since they can dull the red and black finish. Inspect the wheel for cracks or bends after rough trail use.

Should valve stems be replaced when new wheels are fitted?

Often, yes. Valve stems wear with age and exposure, so many owners replace them when mounting new wheels. Check the stem for cracks and confirm it suits the wheel's valve hole before the tire is mounted.
