Overview

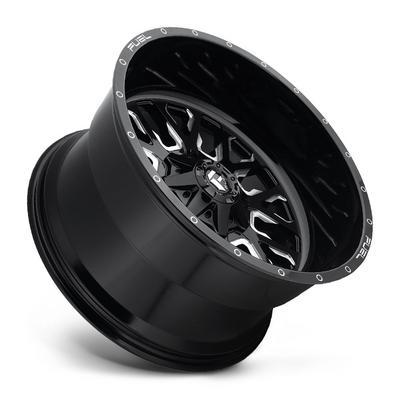

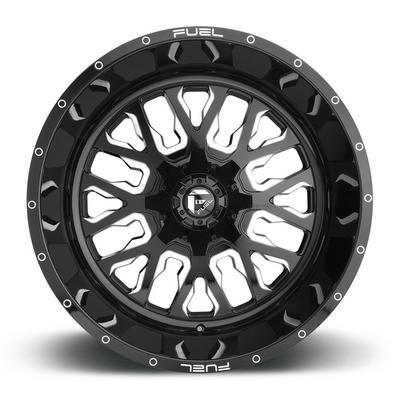

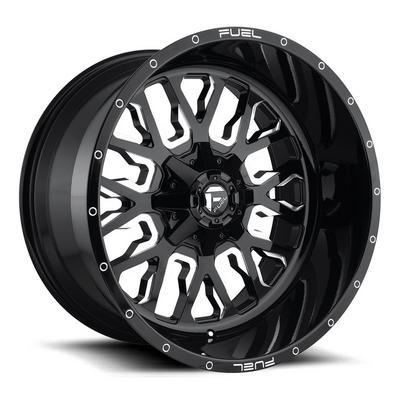

A 22 x 12 inch mesh wheel, the FUEL Off-Road Stroke D611 has aluminum construction and a black milled finish. Part number MHTD61122209846 is listed, with bolt patterns 6 on 135/6 on 5.5 and 6 on 135.
The offset is -44 and the center bore is 106, with backspacing of 4.8. An offset of -44 combined with a 12 inch width is a large change from a standard wheel, so measure clearance before mounting.
Key features
- Mesh style design
- 22 inch diameter and 12 inch width
- Black milled finish
- Aluminum construction
- Offset -44 and center bore 106
Clearance and wheel width
Width and offset work together. A wide wheel with a large negative offset moves the tire outward past the fender and toward suspension parts, so the tire can rub or reduce steering clearance. Before choosing a wide wheel, look at the tire size you plan to run, since a tire with a larger sidewall or tread width may need more room than the wheel alone suggests.
Mesh-style wheels have open faces that show brake components, which makes caliper clearance easy to check by eye. Test fit with the tire mounted, turn the wheel through full lock, and compress and rebound the suspension to see where rubbing starts. Inspect the inner lip and backside after the first trip, and consider fender liners or trimming where contact is found.
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD61122209846 |
| Wheel diameter | 22 inches |
| Wheel width | 12 inches |
| Offset | -44 |
| Center bore | 106 |
| Backspacing | 4.8 |
| Style | Mesh |
| Finish | Black/Milled |
| Bolt pattern | 6 on 135/6 on 5.5 |
| Second bolt pattern | 6 on 135 |
| Construction | Aluminum |
Vehicle fitment
No make, model or year is assigned to this wheel. Its universal fit tag does not identify a vehicle, so fit depends on your own measurements.
Bolt pattern, offset and width all affect fit, so compare each with your own vehicle’s specifications before choosing this size. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Clearance is the main fitting question with a 12 inch width and -44 offset, so test fit at the caliper and fender before any road use. Use lug hardware that suits the wheel’s seat design.
What’s included
Only the wheel is included.
Not included: tires and lug hardware.
