Overview

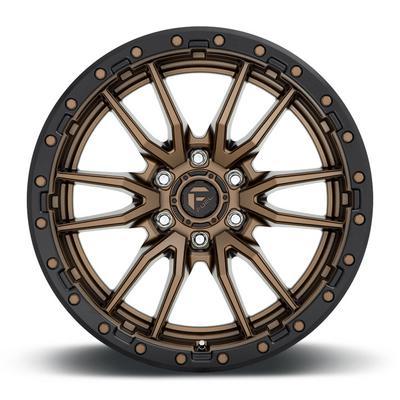

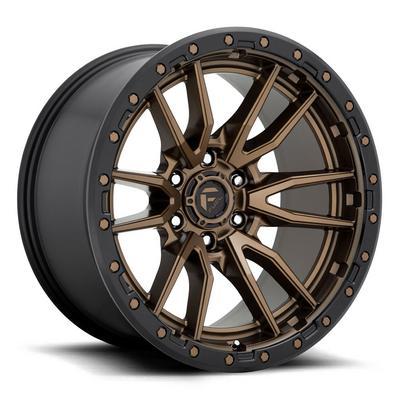

The FUEL Off-Road Rebel 6 D681 is an 18-inch by 9-inch aluminum split spoke wheel built for a 6 on 135 bolt pattern. Part number MHTD68118908945 identifies it, and the bronze and black finish gives it a two-tone look. No vehicle is tied to it, so the bolt pattern, center bore, offset and backspacing must be matched to your hub.
The model code D681 appears in the name. The 18×9 size carries a -12 offset and a 4.6 backspacing, which decide how far the wheel face sits from the hub and how much room remains behind it. Bolt pattern and offset options vary widely, so measure your hub before choosing a size.
Key features
- Split spoke design in an 18-inch diameter
- 9-inch width
- 6 on 135 bolt pattern
- Bronze and black finish
- Aluminum construction
- Offset of -12 and backspacing of 4.6
- Center bore of 87
Split spoke wheels and upkeep
Split spoke wheels are built from multiple pieces, with a center section and spokes joined by fasteners. Those joints need inspection for loose hardware, corrosion or gaps, especially after rough driving. Two-tone finishes can also show scratches more clearly, so look at the spoke edges and barrel for chips.
Choose a tire size that works with the wheel width and offset, since the sidewall must clear the fender and suspension. Wheel and tire combinations that are too wide can rub at full lock. Keep tire pressure within the tire rating, and check the valve stem for leaks at every tire service.
- Inspect fasteners on split joints
- Look for chips on spoke edges
- Check tire clearance at full lock
- Watch valve stems for leaks
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD68118908945 |
| Model | Rebel 6 D681 |
| Diameter | 18 inches |
| Width | 9 inches |
| Bolt pattern | 6 on 135 |
| Offset | -12 |
| Center bore | 87 |
| Backspacing | 4.6 |
| Style | Split spoke |
| Finish | Bronze/Black |
| Construction | Aluminum |
Vehicle fitment
No year, make, model or trim is tied to this wheel. The universal fit tag does not settle fit, because bolt pattern, center bore, offset and backspacing decide whether a given hub accepts it. Compare those measurements with your vehicle’s hub before ordering.
Confirm the bolt count and 135 spacing against your hub before anything else, then check clearance with the -12 offset. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Lay the 6 on 135 bolt pattern against your hub’s bolt holes and check the 87 center bore before mounting. The -12 offset and 4.6 backspacing should be checked for brake caliper and suspension clearance. Choose lug hardware that matches the wheel’s seat and thread.
What’s included
Only the wheel is covered here. Plan to source tires, lug hardware and center caps separately.
Not included: Confirm what arrives with the wheel before mounting, since only the wheel itself is covered here.
