Overview

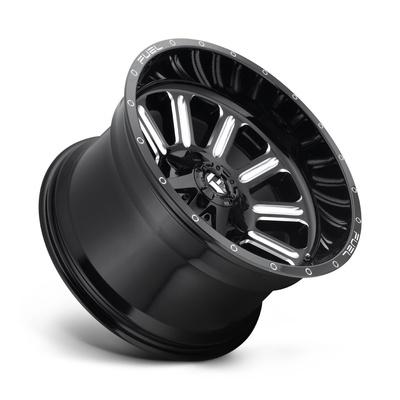

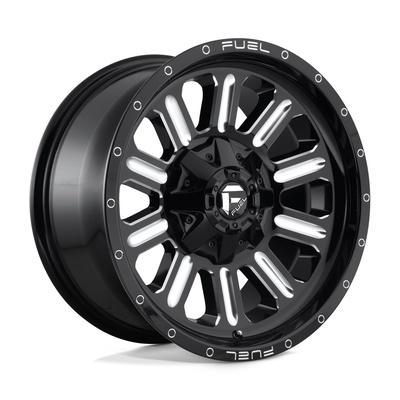

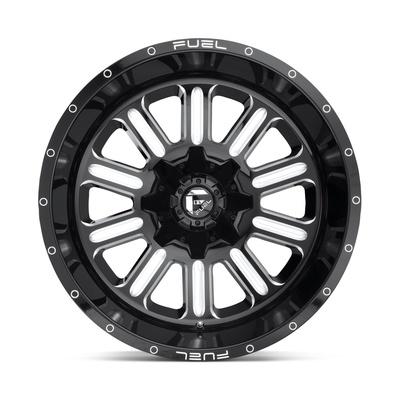

The FUEL Off-Road D620 Hardline 20×9 is a 20-inch aluminum spoke wheel in gloss black milled finish, part number MHTD62020908257. The specifications give an 8 on 6.5 bolt pattern, a 20 offset, a 125 center bore and 5.8 backspacing.
The D620 Hardline name identifies the wheel line, and no truck is matched to it. Match the bolt pattern and center bore to your own hub before buying, then compare the offset with your current wheels.
Key features
- 20-inch diameter and 9-inch width
- Gloss black milled finish
- 8 on 6.5 bolt pattern
- Offset of 20 with center bore of 125
- Backspacing of 5.8 and spoke style
Spoke wheels and hub fit
Spoke wheels have open faces, which makes the brake and hub area visible but also lets road grit collect around the lug seats. Their look is often chosen for appearance, so the spokes should be checked for cracks or bends after rough use, especially on wheels run with lower-profile tires.
Hub fit comes first. A wheel that does not seat flat against the hub face carries its load through the lug nuts alone, and those can loosen over time. Use a hub-centric approach where needed, and keep the lug seats clean before mounting.
- Clean lug seats before every mounting
- Inspect spokes for cracks after trail use
- Check torque after the first few drives
- Compare tire size to the wheel width
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD62020908257 |
| Wheel diameter | 20 inches |
| Wheel width | 9 inches |
| Offset | 20 |
| Center bore | 125 |
| Backspacing | 5.8 |
| Bolt pattern | 8 on 6.5 |
| Style | Spoke |
| Finish | Gloss black milled |
| Construction | Aluminum |
Vehicle fitment
The wheel is universal fit, so no year, make or model is matched to it. The hub match is up to you.
Start with the 8 on 6.5 bolt pattern and 125 center bore, then compare the 20 offset and 5.8 backspacing with your current wheels. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The 125 center bore should match your hub closely so the wheel centers without relying only on the lug nuts. Test-fit one wheel before mounting a full set, and check lug hardware separately.
What’s included
The wheel is sold as one item. Tires, lug nuts and center caps should be confirmed for your installation before ordering.
