FUEL Off-Road D747 Lockdown Wheel, 22x10 with 8 on 170 Bolt Pattern – Black / Milled – D74722001747

FUEL Off-Road

Shop FUEL Off-Road Wheels 22x10 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fitment: no vehicle is named; the brand labels it universal fit
  • 22 x 10 inch wheel with an 8 on 170 bolt pattern
  • Offset -18, backspacing 4.79, center bore 125
  • Gloss black milled finish, directional style, aluminum construction
  • Part number MHTD74722001747

Description

Overview

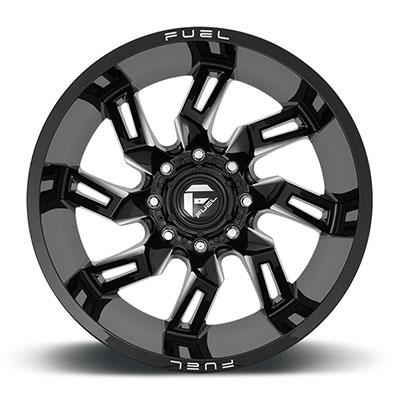

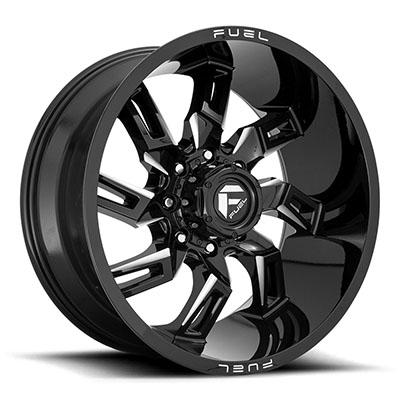

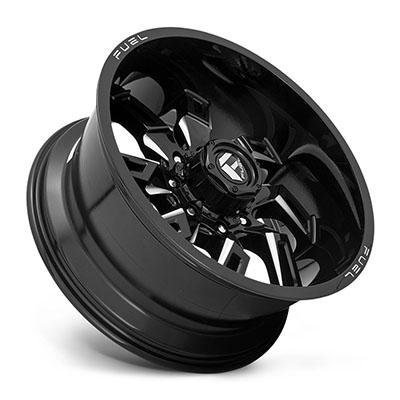

The FUEL Off-Road D747 Lockdown is a 22 by 10 inch aluminum wheel with an 8 on 170 bolt pattern and part number MHTD74722001747. It has a directional style and a gloss black milled face, aimed at owners who want a bold milled look on an 8 on 170 hub.

The 10 inch width and -18 offset are the main sizing figures to check against your hub and brake clearance. Because the style is directional, the milled pattern is meant to run in one rotational orientation, so confirm the wheel’s design before mounting.

Key features

  • Directional style with a gloss black milled face
  • Aluminum construction
  • 22 inch diameter and 10 inch width
  • 8 on 170 bolt pattern with a 125 center bore
  • Offset of -18 and backspacing of 4.79

Directional wheels and rotation

A directional wheel is designed to turn one way, with the face pattern angled to sweep forward as the wheel rolls. Mounting it backward changes how the milled cuts look and can change how the face sheds water and mud. Before torquing the lugs, pick out which side of the wheel faces outward and mark it, so a set of four goes on the same way. Keep the mounting side consistent when you rotate tires between axles.

The 10 inch width and -18 offset move the tire outward past the stock wheel, so the tire can rub inner fender parts at full steering lock or over bumps. Lowered suspension and taller tires change this more than the wheel itself. Wheel bearings and ball joints can also wear faster if clearance is tight and the wheel is loaded at an angle. Inspect the inside of the fender and the tire sidewall after the first off-road run.

  • Mark the outward side before mounting
  • Check fender clearance at full lock
  • Keep rotation direction consistent

Specifications

Brand FUEL Off-Road
Part number MHTD74722001747
Series D747 Lockdown
Wheel diameter 22 inches
Wheel width 10 inches
Bolt pattern 8 on 170
Center bore 125
Offset -18
Backspacing 4.79
Style Directional
Finish Gloss black milled
Construction Aluminum
Fitment label Universal fit

Vehicle fitment

No vehicle is named for this wheel. FUEL Off-Road labels it universal fit, but wheel fit depends on bolt pattern, center bore, offset and brake clearance, so compare those figures with your hub first.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

One gloss black milled wheel is included.

Not included: Plan on sourcing tires and lug hardware separately, and confirm what else your installation needs before starting.

SKU: MHTD74722001747 Categories: ,

Questions & Answers

What size is the FUEL Off-Road D747 Lockdown wheel?

It is 22 inches in diameter and 10 inches wide, with an 8 on 170 bolt pattern and a 125 center bore. Offset is -18 and backspacing is 4.79, so compare those figures with your hub and brake clearance before mounting.

What is part number MHTD74722001747?

MHTD74722001747 is the FUEL Off-Road part number for the D747 Lockdown wheel in 22 by 10, 8 on 170, gloss black milled. Quote the full number when comparing this wheel with other items in the series.

Does this wheel fit my truck?

The wheel carries a universal fit marking, so confirm your vehicle's year, model and trim before ordering. Universal fit means the bolt pattern, center bore, offset and brake clearance must match your hub.

How do I check which side of a directional wheel goes outward?

Look for the direction arrow or the angle of the milled cuts, which should sweep forward as the wheel rolls. Mark the outward side before removing the wheel so all four go on the same way. Recheck the rotation when moving tires between axles, since a reversed wheel changes its appearance and fit.
