Overview

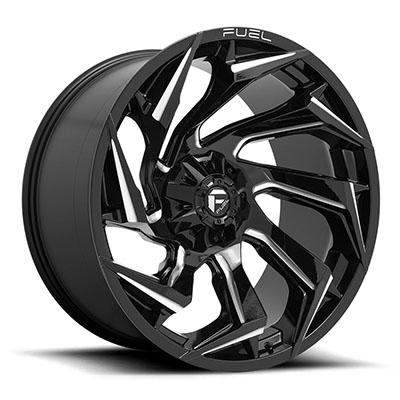

The FUEL Off-Road D753 Reaction wheel is a 24×12 aluminum wheel, part number MHTD75324201847, with a black and milled finish and a directional style. Its single bolt pattern is 8 on 180, so it is intended for hubs with eight studs at that spacing.
This is a 24-inch wheel that is 12 inches wide with an offset of -44, a deep negative value that sets the mounting face well behind the centerline. The product carries a Universal Fit designation, so no vehicle is named. Confirm the bolt pattern, the 124 center bore and the clearance before buying.
Key features
- Single 8 on 180 bolt pattern
- 24-inch diameter and 12-inch width
- Offset of -44 with backspacing of 4.77
- Center bore of 124
- Black and milled finish on aluminum construction
Measuring hub and bore
Large-diameter wheels with deep negative offsets rely on accurate hub measurements. Start by confirming the bolt pattern on the hub, then measure the hub bore so the wheel centers on the hub face and does not depend only on the lug nuts. A wheel of this size is heavier, so centering matters more than it does on a small wheel.
Backspacing tells you how far the inner barrel edge sits from the mounting face. With a deep offset and a wide barrel, the inner edge can meet suspension or brake components even when the outside looks clear. Check the inside of the wheel as carefully as the outside before the tire goes on.
- Confirm eight-stud spacing before fitting
- Check the hub bore against the wheel bore
- Look at brake caliper and dust shield clearance
- Allow for a larger tire diameter
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD75324201847 |
| Model | D753 Reaction |
| Diameter | 24 inches |
| Width | 12 inches |
| Bolt pattern | 8 on 180 |
| Offset | -44 |
| Center bore | 124 |
| Backspacing | 4.77 |
| Style | Directional |
| Finish | Black/Milled |
| Construction | Aluminum |
| Fitment | Universal Fit |
Vehicle fitment
The wheel is universal fit, so no year, make or model is matched to it. The hub measurements decide whether it is a workable choice.
Offset -44 and a 12-inch width can change outer clearance substantially compared with a standard wheel. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Test-fit this wheel before a tire goes on, checking brake caliper, fender and suspension clearance at both full lock positions. A wheel this size and offset may need a spacer-free setup that the installer confirms by measurement.
What’s included
The wheel is the only item covered. Lug nuts and center caps should be confirmed against your order before mounting.
Not included: tires, which must be purchased and mounted separately.
