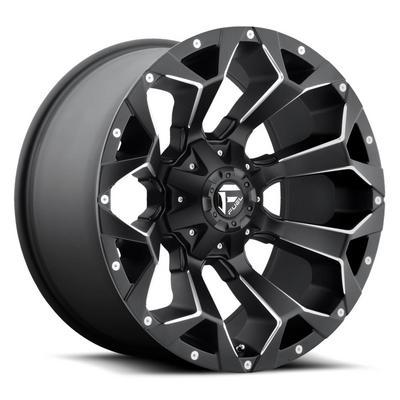

FUEL Off-Road D546 Assault Wheel, 22x10 with 8 on 180 Bolt Pattern – Black Milled – D54622001847

FUEL Off-Road

$550.00In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 9:30 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 22×10 mesh-style wheel with 8 on 180 bolt pattern
  • Black milled finish, aluminum construction
  • Offset -18, backspacing 4.8, center bore 124
  • Part number MHTD54622001847
  • No vehicle named; check hub and offset before ordering

Description

Overview

The FUEL Off-Road D546 Assault is a 22 by 10 inch aluminum mesh wheel in black milled finish, part number MHTD54622001847, built for an 8 on 180 bolt pattern and sized for trucks and SUVs. No specific vehicle is confirmed for it, so fit depends on matching the hub.

FUEL Off-Road makes the D546 Assault in several bolt patterns and offset combinations. Here the offset is -18, the backspacing is 4.8, and the center bore is 124, so compare those figures with your hub and brake clearance before choosing this size.

Key features

  • Mesh style with a black milled finish
  • Aluminum construction
  • 22-inch diameter and 10-inch width
  • 8 on 180 bolt pattern
  • Center bore of 124
  • Offset of -18 with backspacing of 4.8

Choosing the right offset

Offset sets how far the mounting face sits from the hub centerline, and that position controls how the wheel clears the brake caliper, the inner fender and the suspension. A wheel with more backspacing sits deeper behind the face, which can give calipers more room but may bring the tire closer to suspension parts at full steering lock.

Trucks and SUVs often run larger tires than stock, and a larger tire changes the clearance picture. Before buying, measure the caliper and rotor clearance behind the spokes and compare it with your current wheel. A test fit with the tire mounted is the most dependable way to confirm there is no rubbing.

  • Check caliper clearance through the mesh openings
  • Recheck fender clearance after changing tire size
  • Inspect the inner barrel for contact marks after the first drives

Specifications

Brand FUEL Off-Road
Part number MHTD54622001847
Wheel diameter 22 Inches
Wheel width 10 Inches
Style Mesh
Finish Black milled
Construction Aluminum
Bolt pattern 8 on 180
Center bore 124
Offset -18
Backspacing 4.8

Vehicle fitment

This wheel is not tied to a specific year, make or model. Fit depends on the hub, so compare the 8 on 180 pattern, 124 center bore and -18 offset with your current wheels before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Lug nuts and other hardware are not included with the wheel, so confirm the seat style and thread size you need. Check tire size and brake caliper clearance before mounting, then have the assembled wheel balanced.

What’s included

The specifications describe one wheel. Not included: Tires, lug hardware and valve stems are not included with the wheel.

SKU: MHTD54622001847 Categories: ,

Questions & Answers

What is the FUEL Off-Road D546 Assault wheel?

It is a 22 by 10 inch aluminum mesh wheel with a black milled finish. Part number MHTD54622001847 and bolt pattern 8 on 180 identify it, and the offset is -18.

Does this wheel list a specific vehicle fitment?

No. The wheel is not tied to a year, make, model or chassis code. Compare the 8 on 180 pattern, 124 center bore and -18 offset with your hub before ordering.

What are the offset and backspacing numbers?

The offset is -18 and the backspacing is 4.8. Together with the 124 center bore, these figures decide how the wheel sits against the hub and how much room the brakes and suspension get.

How can I tell if a 22-inch wheel will rub on my suspension?

Mount the wheel with the planned tire and turn the steering fully both ways while watching the inner edge of the tire. Rubbing against a control arm or strut usually shows as a bright scuff or a dark mark on the tire sidewall. Re-check after any suspension change.
