FUEL Off-Road D745 Saber Wheel, 20x10 with 6 on 5.5 Bolt Pattern – Red / Milled – D74520008447

FUEL Off-Road

Shop FUEL Off-Road Wheels 20x10 6x5.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • FUEL Off-Road D745 Saber 20×10 wheel, part number MHTD74520008447
  • 6 on 5.5 bolt pattern with a 106 center bore
  • Red milled finish with offset -18 and backspacing 4.79
  • Universal Fit marking; no vehicle years named

Description

Overview

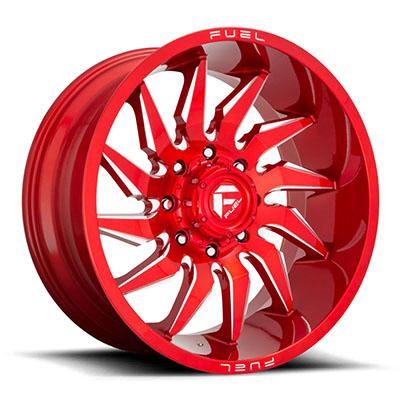

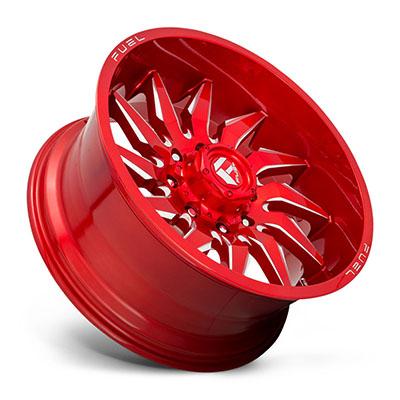

A red milled aluminum wheel, the FUEL Off-Road D745 Saber 20×10 (part MHTD74520008447), is drilled for a 6 on 5.5 bolt pattern with a 106 center bore. It is a directional design in the D745 Saber series.

FUEL Off-Road marks it Universal Fit. The 6 on 5.5 bolt circle is the first number to match on the hub, followed by the 106 center bore and the offset of -18.

Key features

  • 6 on 5.5 bolt pattern
  • Center bore of 106
  • Red milled finish on a directional face
  • 20-inch diameter and 10-inch width
  • Offset -18 and backspacing 4.79

Choosing a bolt pattern and tire

A red milled face makes the wheel stand out, but hub measurements matter more for fit. Count the lugs and measure the bolt circle before matching a wheel, then confirm the center bore sits on the hub. A wheel that is not centered can vibrate even when the bolt pattern is correct.

The -18 offset moves the mounting face outward, so the tire sits closer to the fender and brake components. Test steering at full lock and check the caliper for rub after the first drive. Keep the tire width in mind too, since a wider tire on this offset may need more clearance. Re-torque lug nuts after the first short drive and check them again after a few trail runs.

Specifications

Brand FUEL Off-Road
Part number MHTD74520008447
Series D745 Saber
Style Directional
Finish Red/Milled
Construction Aluminum
Wheel diameter 20 inches
Wheel width 10 inches
Bolt pattern 6 on 5.5
Center bore 106
Offset -18
Backspacing 4.79

Vehicle fitment

No vehicle is named, so the wheel is not tied to a make, model or year. Match the hub before comparing any other specification.

The 106 center bore is the number to match when a centered fit is needed. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Verify the 6 on 5.5 pattern against the hub first. Then mount the wheel and inspect clearance at the caliper and fender, because the -18 offset changes how close the tire sits to the body.

What’s included

This entry covers the wheel only. Plan for tires, lug nuts and caps separately if your installation needs them.

SKU: MHTD74520008447 Categories: ,

Questions & Answers

Which bolt pattern does the D745 Saber 20x10 use?

It uses a 6 on 5.5 bolt pattern with a 106 center bore. It is not tied to one make, model or year, so hub measurements decide suitability.

Is part MHTD74520008447 a red wheel?

Yes, the finish is red milled. It is also an aluminum, directional-style wheel 20 inches across and 10 inches wide, with a 106 center bore.

Do I need to check the offset before mounting?

Yes. The offset is -18 and backspacing is 4.79, so check fender and caliper clearance after mounting, especially with the 10-inch width.

Can I run a different tire width on this wheel?

Possibly, but only after checking clearance. A wider tire raises the chance of rubbing at the fender or suspension, so test at full lock. Keep the overall diameter close to the original for accurate speed readings.
