Overview

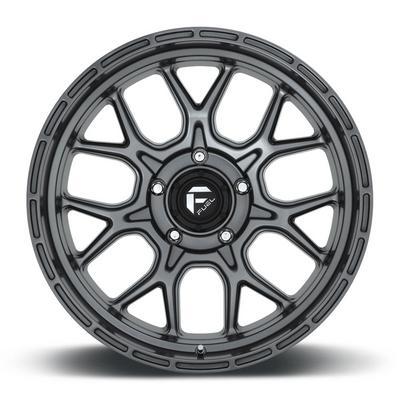

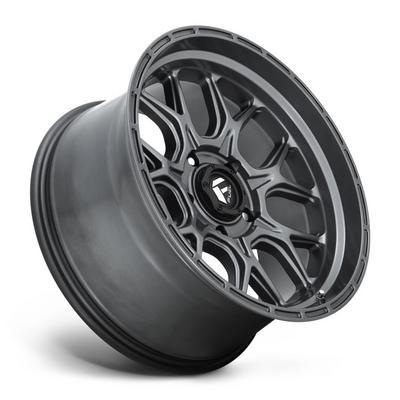

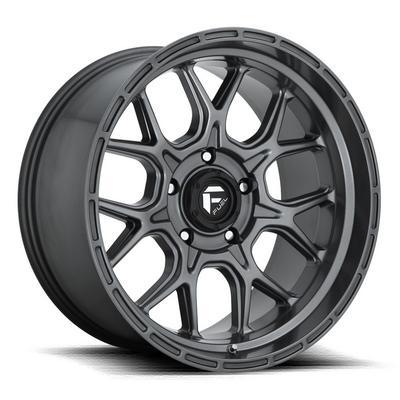

The FUEL Off-Road D672 Tech is an 18 by 9 inch aluminum mesh wheel with a 6 on 135 bolt pattern and part number MHTD67218908957. It is suited to trucks and SUVs that run six lugs on a 135 bolt circle.
Diameter is 18 inches and width is 9 inches. The center bore is 87, the offset is 20 and the backspacing is 5.8. The finish is matte gunmetal, also called anthracite.
Key features
- 18-inch diameter and 9-inch width
- Mesh spoke style
- 6 on 135 bolt pattern with an 87 center bore
- Offset 20 and backspacing 5.8
- Matte gunmetal finish, also known as anthracite
Mesh wheels on the trail
Mesh-style spokes are open, so brake components and the wheel’s inner face are easier to see and clean. Mud and grit can pack into the open areas, so rinse after off-road use. The 18-inch diameter and 9-inch width suit a range of tire sizes, but a taller tire changes the overall rolling diameter and can affect speedometer accuracy and gearing. Backspacing and offset decide how the tire sits inside the fender.
Lug nut seat style should be matched to the wheel before mounting, because a mismatched seat can loosen under load. After installation, check the nuts again after the first drive and after the first trail run. Look for cracks at the spoke joints and the lip after hard impacts. Matte gunmetal finishes chip on rock contact, so touch-up paint can help protect bare metal.
- Rinse mesh spokes after mud runs
- Check lug nut seats and torque after the first drives
- Inspect spoke joints after hard impacts
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Model | D672 Tech |
| Part number | MHTD67218908957 |
| Wheel diameter | 18 inches |
| Wheel width | 9 inches |
| Bolt pattern | 6 on 135 |
| Center bore | 87 |
| Offset | 20 |
| Backspacing | 5.8 |
| Style | Mesh |
| Finish | Matte gunmetal (anthracite) |
| Construction | Aluminum |
Vehicle fitment
This is a universal fit wheel. Confirm the 6 on 135 bolt pattern, 87 center bore and offset 20 against your hub before choosing this wheel.
Wheel fitment checks should cover the bolt pattern, bore and backspacing together. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Tighten the lug nuts evenly to the torque your vehicle needs, and check them again after a short drive. Backspacing of 5.8 and offset 20 affect how far the tire sits inside the fender, so test clearance with the tire you plan to run.
What’s included
This is a single 18×9 wheel.
Not included: tires, lug nuts and center caps, to be obtained separately if your setup requires them.
