Overview

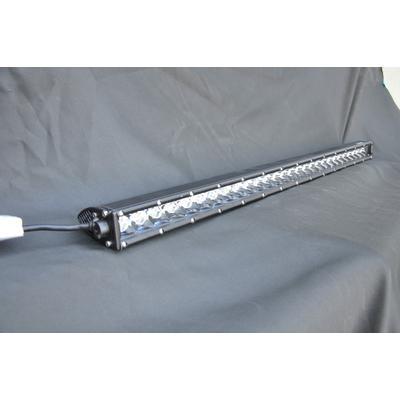

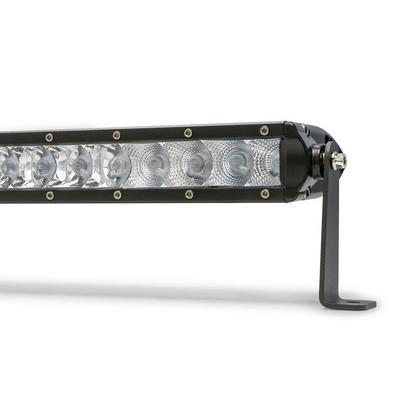

The DV8 Offroad SL 8 Slim Series 30 Inch LED Light Bar (part BS30E150W5W) is a straight, single row light bar with a spot and flood combo beam. It uses 5W Cree LEDs rated to 50,000 hours, a white back-lighting color, and a clear polycarbonate lens. The bar is IP68 rated to keep water out.
Its LED optical technology and low-profile design deliver strong light output while keeping the bar slim and unobtrusive. The low-profile design gives a non-bulky presence.
Key features
- Spot and flood combo beam
- 5W Cree LEDs
- Rated to 50,000 hours
- Clear polycarbonate lens
- IP68 rated
- Side mounts
- Low-profile, slim design
- White back-lighting color
Mounting and wiring tips
Side-mounted light bars depend on solid mounting points, so measure carefully before drilling anything. Mark the holes, check that the bar sits level, and confirm that the housing clears the hood, grille, fenders and any winch or bumper parts in its path. Once the bar is in place, check that it can move through its full range without rubbing a body panel.
The wiring should be planned as carefully as the mounts. Run the harness with clips away from hot exhaust parts and moving suspension components, and seal the connections against road spray. A switch placed within reach of the driver makes the bar easy to turn off when it is not needed, which also reduces wear on the vehicle’s electrical system.
- Mark and measure mounting points first
- Check clearance to hood and bumper parts
- Clip the harness away from heat and moving parts
Specifications
| Brand | DV8 Offroad |
|---|---|
| Part number | BS30E150W5W |
| Light series | SL 8 Slim Series |
| LED row configuration | Single row |
| Length | 30 inch |
| Straight or curved | Straight |
| Beam pattern | Spot and flood combo |
| LEDs | 5W Cree |
| LED life | 50,000 hours |
| Back-lighting color | White |
| Lens | Clear polycarbonate |
| Ratings | IP68 |

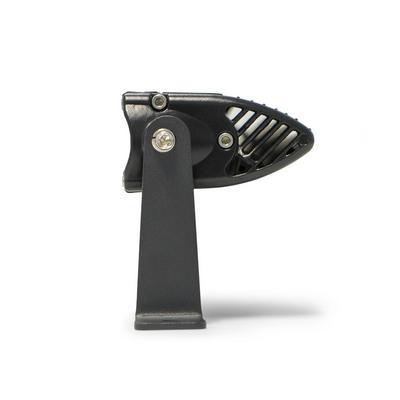

| Mounting | Side mounts |
Vehicle fitment
The bar is universal fit and is not built for one vehicle, so the side mounts and the mounting location decide where it can go. Check the mounting location and clearance on your vehicle before drilling.
Installation notes
The bar attaches with side mounts, so measure the mounting spots before drilling. Fuse the feed, and check local rules for auxiliary lighting on public roads before use.
What’s included
One 30 inch SL 8 Slim Series light bar with its side mounts.
