DV8 Offroad BRS Pro Series 40-inch LED Light Bar – BR40E240W3W

DV8 Offroad

Shop DV8 Offroad Light Bars on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Universal fit: a 40 inch double-row LED light bar with spot beam
  • Part number DV8BR40E240W3W, straight, white backlighting
  • IP68 rated polycarbonate lens and black textured face
  • 3 W Cree LEDs rated to 50,000 hours
  • Side and bottom mounts

Description

Overview

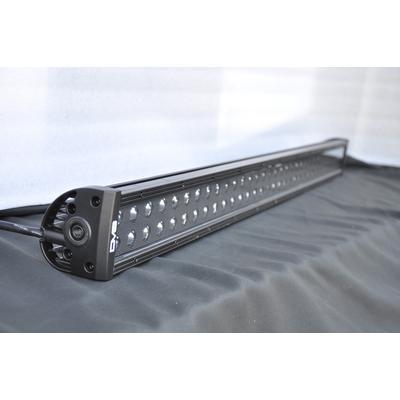

The DV8 Offroad BRS Pro Series 40-inch LED Light Bar, part number DV8BR40E240W3W, is a straight, double-row spot beam LED light bar 40 inches long, universal fit. It is the longest bar in the BRS Pro Series line, with a black textured face, a polycarbonate lens and an IP68 rating. DV8 lights the bar with 3 W Cree LEDs, and the bar fixes to a vehicle with side or bottom mounts.

A bar this long throws a wide band of light and is best suited to a roof or a bumper with room across the full width. The beam is spot, so the light is focused forward rather than spread to the sides.

Key features

  • 40 inch length with a spot beam pattern
  • Double-row LED layout
  • Straight bar with white backlighting
  • 3 W Cree LEDs rated to 50,000 hours
  • IP68 rated polycarbonate lens
  • Side and bottom mounts

Fitting a full-width bar

A 40 inch bar spreads light across a wide area, which suits a roof or a bumper with open space across the full width. Before mounting, measure how far the bar will project past the body and whether the tailgate, hatch or roof hardware will clear it. Consider where the bar will sit relative to the mirrors and the windshield.

Spot beam bars reach farther straight ahead, so the bar’s aim matters more than its width. Set the angle once the bar is mounted, then check it after a few trips because vibration can shift the mount. Using a fused relay and a switch that is easy to reach keeps the bar under control. Clean the lens and check the seal regularly, since road grime sits across a wide face and can dim the output.

Specifications

Brand DV8 Offroad
Part number DV8BR40E240W3W
Light series BRS Pro Series, LED
Length 40 inch
LED row configuration Double row
Shape Straight
Backlighting color White
Beam pattern Spot
LED 3 W Cree, rated 50,000 hours
Lens Polycarbonate
IP rating IP68
Face Black textured
Mounts Side and bottom

Vehicle fitment

It is a universal fit bar, so it is not made for one vehicle. Its length puts more load on the mounts than a small pod does, so check the bracket and mounting surface on your vehicle before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Fix the bar with the side or bottom mounts and route the wiring through a fused relay. Check local rules on light bars before using a bar this size on public roads.

What’s included

Supplied: one 40 inch BRS Pro Series bar, side mounts and bottom mounts. Wiring and fasteners are not included.

Questions & Answers

Is the DV8 BRS Pro 40 inch light bar universal fit?

Yes. It is a universal fit bar, so it is not made for one specific vehicle. Check the mounting position and bar length against your vehicle before ordering, since a 40 inch bar needs room across the mounting area.

Is the 40 inch bar a spot or flood beam?

It is a spot beam. The bar is straight with a double-row LED layout and white backlighting, and it has an IP68 rated polycarbonate lens.

Which series is the 40 inch bar part of?

It is part of the BRS Pro Series, the line that includes DV8 bars with double-row LEDs, IP68 ratings and side and bottom mounts. This model is a 40 inch straight spot bar with white backlighting.

What LEDs are used in the bar?

The bar uses 3 W Cree LEDs rated to 50,000 hours. Those LEDs sit behind a polycarbonate lens on a black textured face.

Does a bar this long need extra support?

Often yes. Bars of this length can flex on rough ground, so a bracket that spreads the load across the mount helps. Check the mounting bolts after the first few outings and retighten them as needed. Avoid fixing the bar to thin trim alone.
