Overview

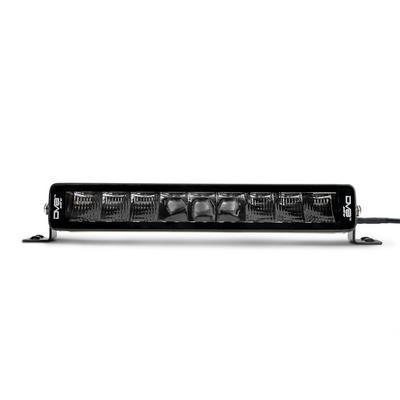

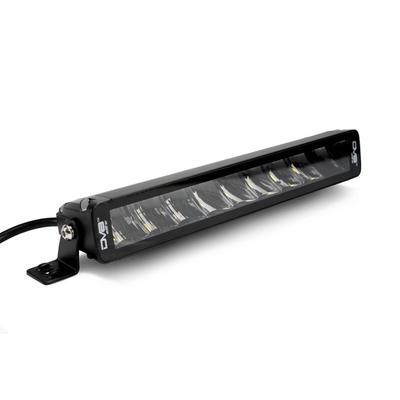

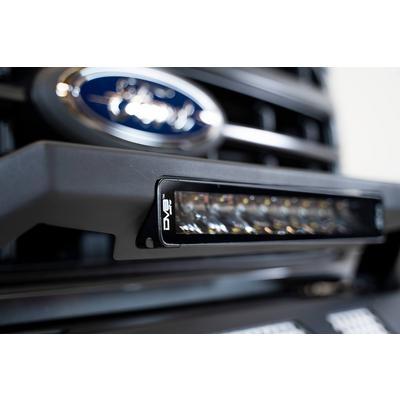

The DV8 Offroad 13 Inch Elite Series LED Light Bar, part BE13EW45W, is a single row straight light bar with a flood and spot beam pattern. It produces 3,800 lumens at 45 watts and uses OSRAM LEDs rated to 50,000 hours of life. It is designed as a bumper or hood light to supplement a vehicle’s primary lighting.

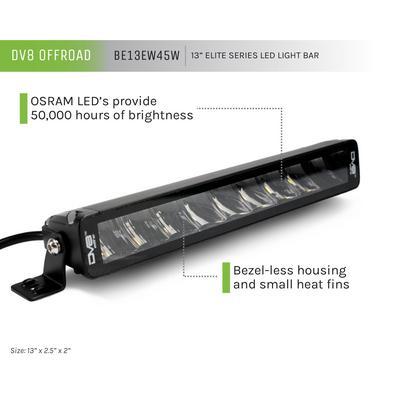

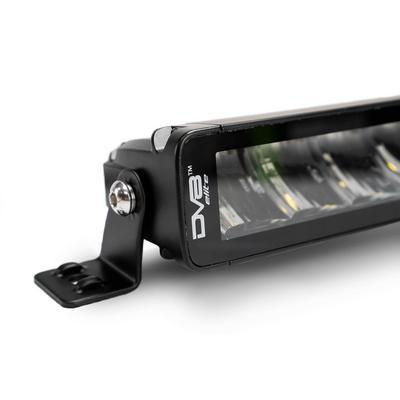

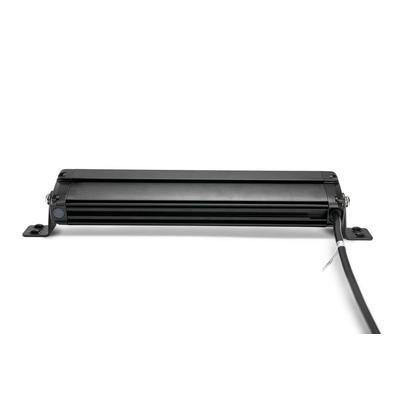

The housing is sleek and bezel-less with heat fins to reduce ambient heat. The indirect reflector focuses the light, reduces glare and virtually eliminates hotspots. The UV resistant lens is shatterproof and is designed to whisk away ice and water. DV8 Offroad rates the bar IP68, which means it resists dust, dirt, sand and water.
Key features
- Flood and spot beam pattern
- 3,800 lumens
- 45 watts
- OSRAM LEDs rated to 50,000 hours
- Indirect reflector to reduce glare and hotspots
- Bezel-less housing with heat fins
- UV resistant, shatterproof lens
- IP68 rated
Mounting and wiring considerations
A hood or bumper bar sits in an area that gets heat from the engine bay or road debris, and it takes constant vibration. Choose a mounting point that keeps the housing clear of moving parts and the hood latch, and leave room for the wire to bend without strain.
Route the cable through a grommet where it passes into the cabin or engine bay, and fuse the feed close to the power source. A clean ground point and a quick check of the bracket after the first few trips will help the bar stay aimed and secure over time.
- Keep the housing clear of the hood latch
- Use a grommet where wiring passes through metal
- Fuse the feed close to the power source
- Recheck the bracket after the first trips
Specifications
| Brand | DV8 Offroad |
|---|---|
| Part number | BE13EW45W |
| Light series | Elite Series |
| LED row configuration | Single row |
| Length | 13 inch |
| Straight or curved | Straight |
| Output | 3,800 lumens |
| Power | 45 watts |
| Beam pattern | Flood/Spot |
| LED life | 50,000 hours |
| Ratings | IP68 |
Vehicle fitment
It is a universal fit for the bumper or hood, so it is not built for one vehicle. Check the mounting location and clearance on your vehicle before drilling.
Installation notes

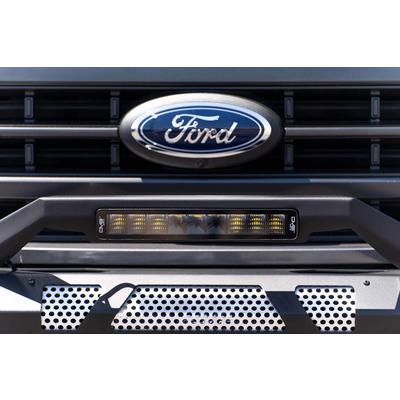

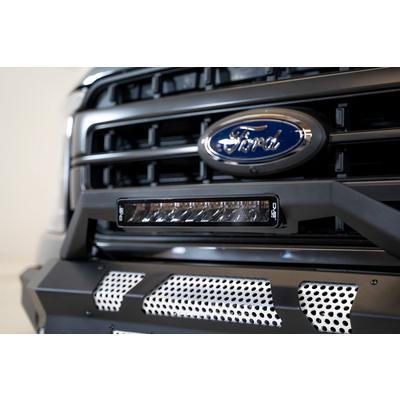

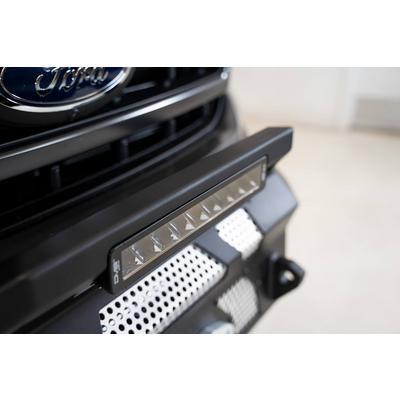

Mount the bar on a bumper or hood location with room for the 13 inch housing and the wire route. Fuse the feed for the 45 watt load, and check local rules for auxiliary lights on public roads.

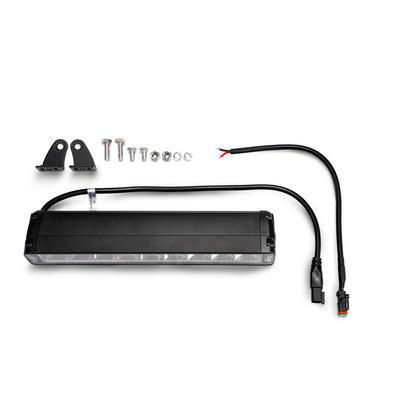

What’s included
One 13 inch Elite Series LED light bar.
