Overview

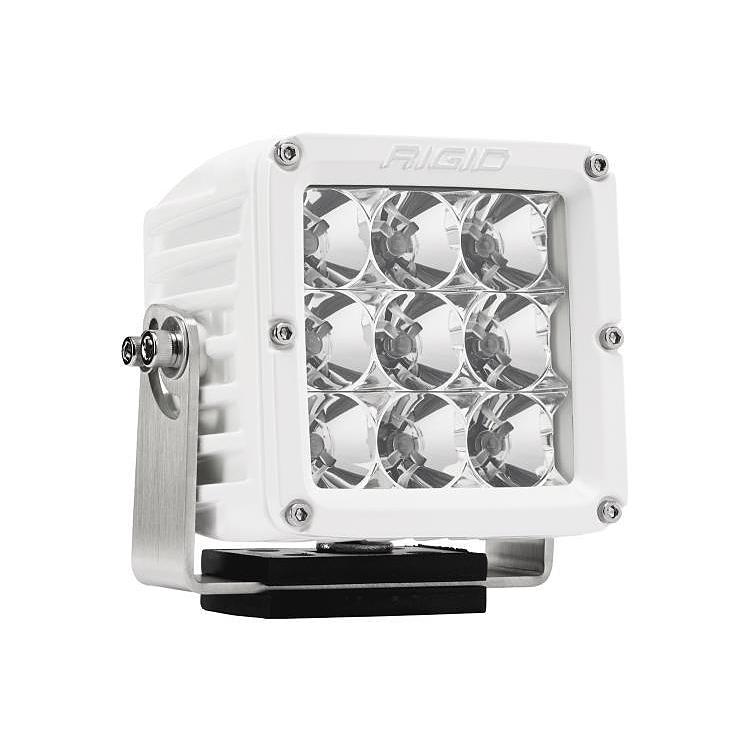

The Rigid Industries Dually XL Series Marine LED Light, part number 323113, is a high intensity LED light for demanding work and recreation. It is universal fit, so it is not tied to one make, model or year. It suits off-road, power sports, general automotive, mining, agriculture, and fire and rescue use.
The D-XL PRO is a larger, more powerful step up from the original D-Series. Its LEDs use a new Professional Race Output for up to 170% more raw lumens, while keeping the efficiency of the RIGID line. The housing is 4×4, and recent updates add new RIGID branding and blacked-out circuit boards.
Key features
- Professional Race Output with up to 170% more raw lumens
- Unbreakable polycarbonate lens
- UV-resistant polyester powder coat finish
- Stainless steel hardware
- Vibration isolator built into the design
- Choice of beam pattern optics
- Blacked-out circuit boards and new RIGID branding
Mounting a heavy-duty light
A heavy-duty light bears more load than a small pod, so the mount needs to be solid and free of flex. Use the stainless steel hardware supplied with the light, and check that the mounting surface is thick enough to hold the fasteners firmly. Keep the light clear of spray, mud and bars that could strike the lens.
Pair the vibration isolator with a mount that holds the light level and stops it from shifting over rough ground. Wire the light through a fused relay and a switch, and run the leads along the frame where they will not chafe. Marine and side-by-side installs in particular need seals at wire entry points.
After the first few outings, recheck fasteners and inspect the lens for cracks or pitting. Clean salt, mud and grit from the housing after wet or coastal runs, and dry the wiring connections before reconnecting. Routine checks prevent small problems from turning into lost light on a critical job.
- Use the supplied stainless hardware
- Seal all wire entry points
- Rinse off salt and grit after use
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 323113 |
| UPC | 849774027666 |
| Series | Dually XL Series (D-XL PRO) |
| Light output | Up to 170% more raw lumens (Professional Race Output) |
| Lens | Unbreakable polycarbonate |
| Finish | UV-resistant polyester powder coat |
| Hardware | Stainless steel |
| Housing | 4×4 |
| Beam pattern | Choice of beam pattern optics |
| Fitment | Universal Fit |
Vehicle fitment
It is universal fit, so it is not built for a specific vehicle. Plan the mounting location and power feed for your own application, whether that is a truck, boat, side-by-side or work vehicle.
Because the light is not vehicle-specific, no make, model or year coverage is listed. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Use the stainless steel hardware and vibration isolator listed with the light when mounting it. Wire the light through a fused relay and a switch. Auxiliary lights are subject to local road-use rules, so check those rules before running the light on public roads.
What’s included
The light includes an unbreakable polycarbonate lens, a UV-resistant polyester powder coat finish, stainless steel hardware and a vibration isolator.
Not included: wiring, a switch or a mounting bracket (supply these separately for this part number)
