Daystar 2 Inch Coil Spring Leveling Lift Kit – PATL224PA

Daystar

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Daystar 2-inch front leveling kit for Toyota Tacoma
  • Pair of CNC machined billet aluminum spacers
  • Allows up to 32-inch diameter tires
  • Lists 2005–2016 Toyota Tacoma trims

Description

Overview

The Daystar PATL224PA is a 2-inch front leveling kit for the Toyota Tacoma. It uses a pair of CNC machined billet aluminum spacers to correct the front-to-rear stance and allows the use of tires up to 32-inch diameter. The kit installs in about 2 hours with everything needed included.

Key features

  • 2-inch front leveling lift
  • CNC machined billet aluminum spacers
  • Allows up to 32-inch diameter tires
  • Keeps factory wheels usable after installation
  • Does not alter the OEM suspension geometry or factory stability parameters

Front-only leveling and steering

A front-only leveling system adds height at the front without changing the rear, which can change the vehicle’s nose height and the angles of the front driveline. Billet aluminum spacers are machined to a precise profile, so they seat consistently on the stock components when installed correctly. Clean the mating surfaces during installation so the spacers sit flat.

Because the rear is not lifted, check the front tire clearance against the fender and inner liner under full steering lock. Inspect the steering components and brake lines for stretch after the work is finished, and recheck the front alignment after the first short drive. Keep the mounting hardware torqued as the service manual directs, and check it at each tire rotation.

  • Clean mating surfaces before installing
  • Check tire clearance at full lock
  • Recheck alignment after installation

Specifications

Brand Daystar
Part number PATL224PA
UPC 618089008703
Lift height 2 inches
Position Front
Spacer material Billet aluminum
Maximum tire diameter 32 inches
Installation time About 2 hours
Fitment type Direct fit

Vehicle fitment

It fits the 2005–2016 Toyota Tacoma in Base, Limited, Pre Runner, SR, SR5, TRD Off-Road, TRD Pro and TRD Sport trims.

Tacoma years outside 2005–2016 are not covered by this fitment. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because it is a front-only leveling system, check the front alignment after installation. The kit installs within about 2 hours.

What’s included

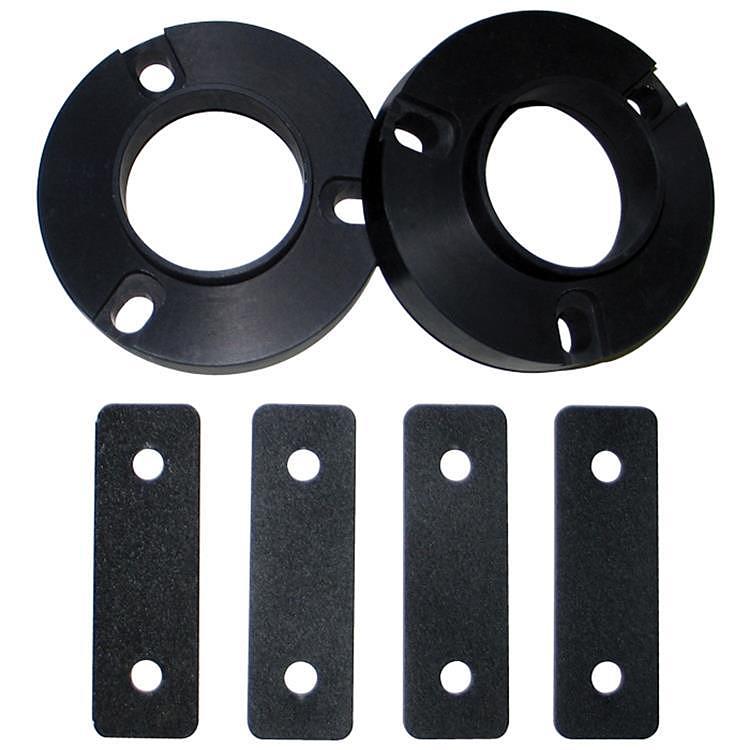

  • Pair of CNC machined billet aluminum spacers
  • Everything needed for installation
SKU: DAYPATL224PA Category:

Specification

Shipping weight 11.00 lbs
Package dimensions 10.00 × 8.00 × 8.00 in
brands

Fitment

VehicleYearsTrims
Toyota Tacoma2005–2016Base, Limited, Pre Runner, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Daystar PATL224PA fit a 2016 Toyota Tacoma?

Yes. It fits the 2005–2016 Toyota Tacoma in several trims, including SR5 and TRD Off-Road. Confirm the trim and year against your truck before ordering.

How much lift does the PATL224PA give?

It gives a 2-inch front lift and allows the use of tires up to 32 inches in diameter. The kit uses a pair of billet aluminum spacers.

Does the PATL224PA change the suspension geometry?

It does not alter the OEM suspension geometry or the factory stability parameters, and it keeps the factory ride. Because the spacers are front only, the rear height stays as it was.

How often should billet spacers be checked?

Inspect the spacers and their hardware at each tire rotation and after rough off-road use. Look for cracks, loose fasteners and any movement, and retorque the hardware as part of routine service.
