Overview
It is a 2 inch front leveling kit with black polyurethane coil spring spacers. It corrects the nose-down rake trucks have from the factory, and it requires longer front shocks.
It fits the 2013-2018 Ram 2500 and the 2013-2018 Ram 3500 across several trim levels. The polyurethane spacers keep the truck’s comfortable ride while adding a custom look or room for larger tires.
Key features
- 2 inch front lift
- High density progressive polyurethane coil spring spacers
- Corrects the factory nose-down rake
- Requires longer front shocks
- Black finish
- Front lift only
Shock and alignment planning
Because the front is raised, the suspension needs a longer shock to keep full travel. Choosing shocks designed for the raised height helps the truck keep a comfortable ride and avoids bottoming out over bumps. Pick shocks that match the new front height, and check whether the rear shocks need replacing at the same time for a balanced ride.
Alignment is the step most owners forget. Once the front height is set, a wheel alignment brings the caster and toe back in range and keeps the tires wearing evenly. Pair the install with a check of the sway bar links and the bushings, which are easy to reach while the suspension is open. Choosing larger tires later may need additional clearance checks.
- Match front shock length to the new height
- Align the truck once the height is set
- Inspect sway bar links during the install
Specifications
| Brand | Daystar |
|---|---|
| Part number | KC09135BK |
| UPC | 618089004439 |
| Lift | 2 inches, front |
| Front lift method | Coil spring spacers |
| Spacer material | Polyurethane |
| Finish | Black |
| Shocks | Longer front shocks required |
The polyurethane components level the ride and remove the nose-down rake most trucks have from the factory, while keeping the comfortable ride. Bigger wheels and off-road tires are common reasons to choose this kit.
Vehicle fitment
It fits the 2013-2018 Ram 2500 and 3500 across several trim levels. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Longer front shocks are required with this kit, so budget for them. Wheel alignment should be checked after the new height is set.

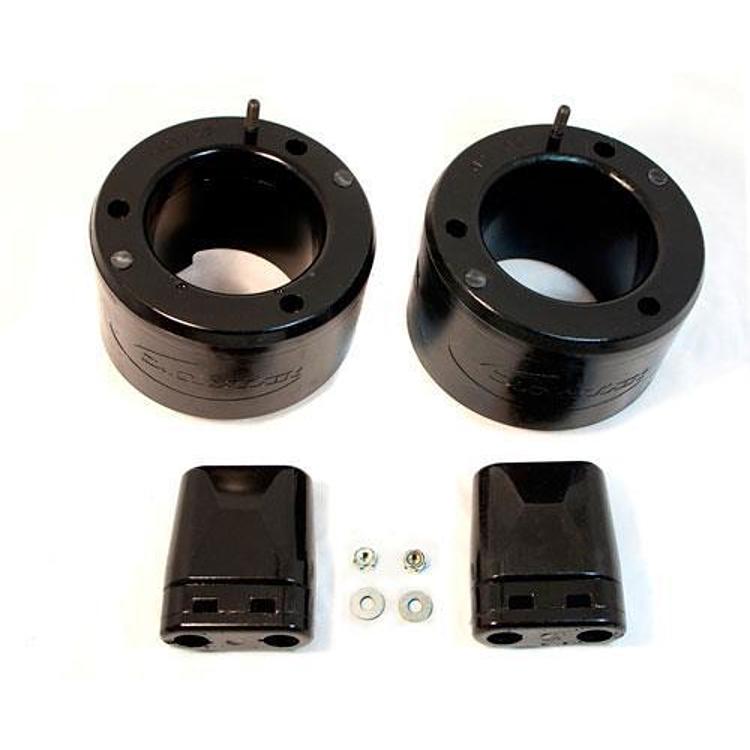

What’s included
The kit includes the front polyurethane coil spring spacers. Longer front shocks are not included, so budget for them separately.
