Overview

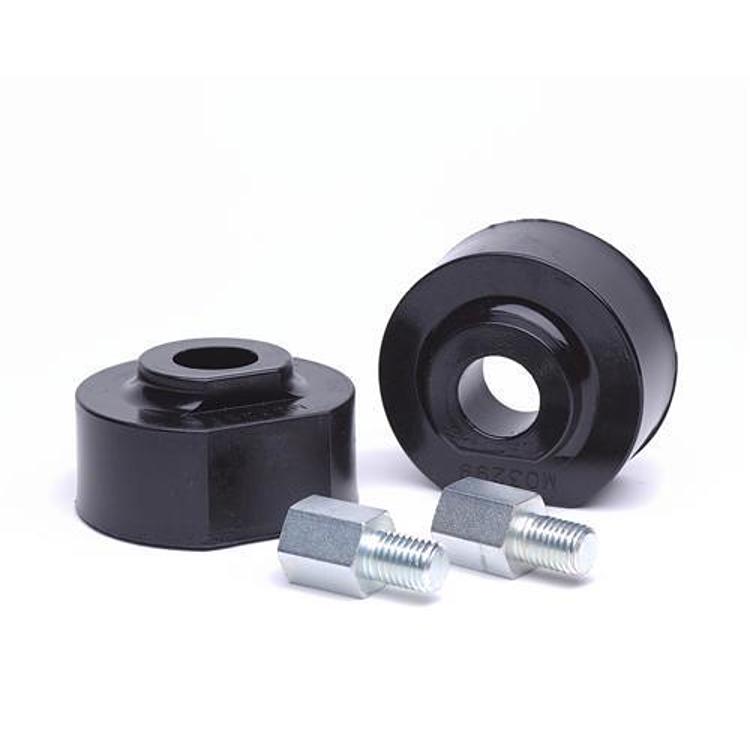

The Daystar KF09101BK is a 2 inch front coil spring spacer kit in black polyurethane, with two spacers included. It is a front lift only, and wheel alignment is needed after installation.
It fits the Ford F-250 and F-350 Super Duty from 1999 to 2018, the Ford Ranger from 1983 to 1996 and the Ford Bronco II from 1986 to 1990, across several trim levels.
Key features
- 2 inch front lift
- Two polyurethane coil spring spacers
- Black finish
- Front lift only
- Wheel alignment needed after installation
Front lift and steering care
Coil spring spacers raise the front by changing the spring seat, so the rest of the front suspension sees a new height. Polyurethane spacers still need inspection for cracks, flattening or shifting over time. Keeping an eye on the front tires helps catch problems before they become costly.
Front spacer lifts often call for a check of the upper control arms, ball joints and tie rod ends because the steering geometry changes. Older Ford trucks and Broncos may have worn bushings that show up after a lift. When the old spacers come out, inspect the coil springs for wear and make sure the mounting surfaces are clean before reinstalling anything.
- Inspect polyurethane for cracks and flattening
- Check tie rod ends and ball joints
- Align the front after installation
Specifications
| Brand | Daystar |
|---|---|
| Part number | KF09101BK |
| UPC | 814423010108 |
| Lift | 2 inches, front |
| Front lift method | Coil spring spacers |
| Spacer material | Polyurethane |
| Quantity | Two spacers |
| Finish | Black |
Vehicle fitment
It fits the 1999-2018 Ford F-250 Super Duty and F-350 Super Duty, the 1983-1996 Ford Ranger and the 1986-1990 Ford Bronco II across several trim levels. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Wheel alignment is needed after the spacers are installed.
What’s included
The kit includes two front coil spring spacers.
