Overview
The Daystar PADL231PA is a 2-inch coil spring leveling system for non air-ride vehicles. The kit includes two front coil spacers, two rear coil spacers and two short shock bushing spacers, which together raise the vehicle to a level stance. It is a direct fit kit.
Coil spacers and shock bushings
Coil spring spacers raise the vehicle by sitting between the spring seat and the chassis, so the springs stay in their original design. Short shock bushing spacers change where the shock mounts sit at the lifted height. Spacers should be checked for cracks, compression and loose hardware during regular service.
Because the kit includes both front and rear spacers, the vehicle keeps its original balance while the height changes. Check the bump stops, brake lines and sway bar links for clearance after installation, since they may sit closer to other parts. Inspect the shock bushings for wear and re-torque all hardware after the first few drives.
- Check spacers for cracks or compression
- Inspect shock bushings for wear
- Re-torque hardware after first drives
Specifications
| Brand | Daystar |
|---|---|
| Part number | PADL231PA |
| UPC | 618089008420 |
| Lift | 2 inches |
| Suspension type | Coil spring leveling, non air-ride |
| Front spacers | 2 |
| Rear spacers | 2 |
| Shock bushing spacers | 2, short |
| Fitment type | Direct fit |
Vehicle fitment
It is a direct fit kit. Check the year, model and trim against your vehicle before ordering.
The kit is for non air-ride suspensions. Confirm your vehicle’s year, model and trim before ordering.

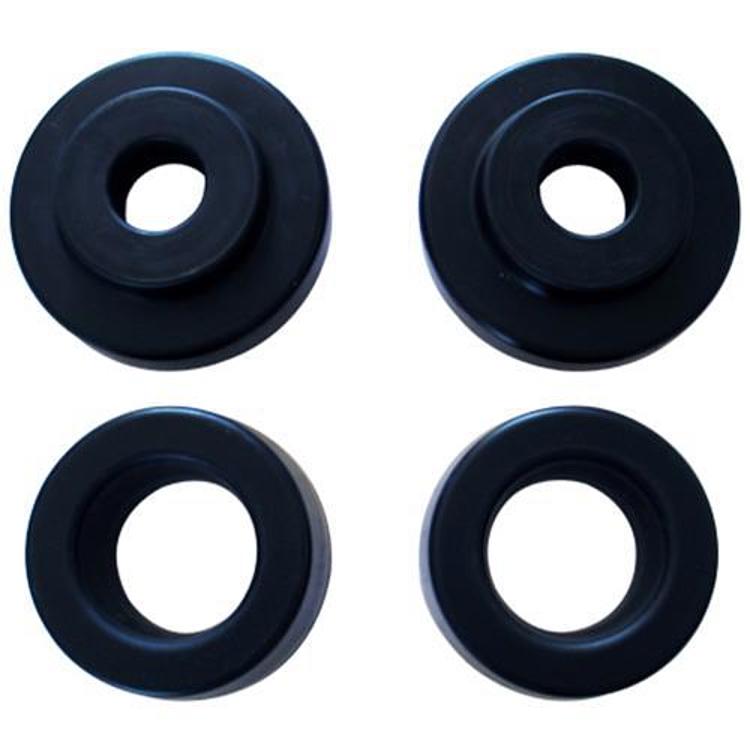

What’s included
- 2 front coil spacers
- 2 rear coil spacers
- 2 short shock bushing spacers
