Overview
The Daystar PACL220PA is a 2-inch coil spring leveling system. The kit includes two lower and two upper spacers, along with four dowel pins, nuts, washers and labels for installation. It is a direct fit design, so match it to your vehicle’s year, model and trim before buying.
Before you install
Spacer-based leveling raises the front of a truck by adding height between the coil spring and its seat. Because the spring itself is not replaced, the stock shock length and sway bar links may need a look after the change. A leveling kit like this one is usually chosen to match tire size and to correct a nose-low stance, so plan the lift around the tires you intend to run and the load you carry.
Before tightening anything, check that the dowel pins sit squarely in the spring seats and that the nuts and washers match the hardware. Re-torque the fasteners after the first few drives, and inspect the spring for rubbing against the coil bucket at full steering lock. Keep the removed hardware sorted by position so reassembly follows the original layout.
- Check spring seat condition before installing
- Re-torque fasteners after the first few drives
- Look for rubbing at full steering lock
Specifications
| Brand | Daystar |
|---|---|
| Part number | PACL220PA |
| UPC | 618089008253 |
| Lift | 2 inches |
| Suspension type | Coil spring leveling |
| Spacers | 2 lower and 2 upper |
| Dowel pins | 4 |
| Fitment type | Direct fit |
Vehicle fitment
Confirm fit for your vehicle’s year, model and trim before ordering. Leveling hardware is model-specific, so check the application carefully before installing.
Confirm your vehicle’s year, model and trim before ordering.

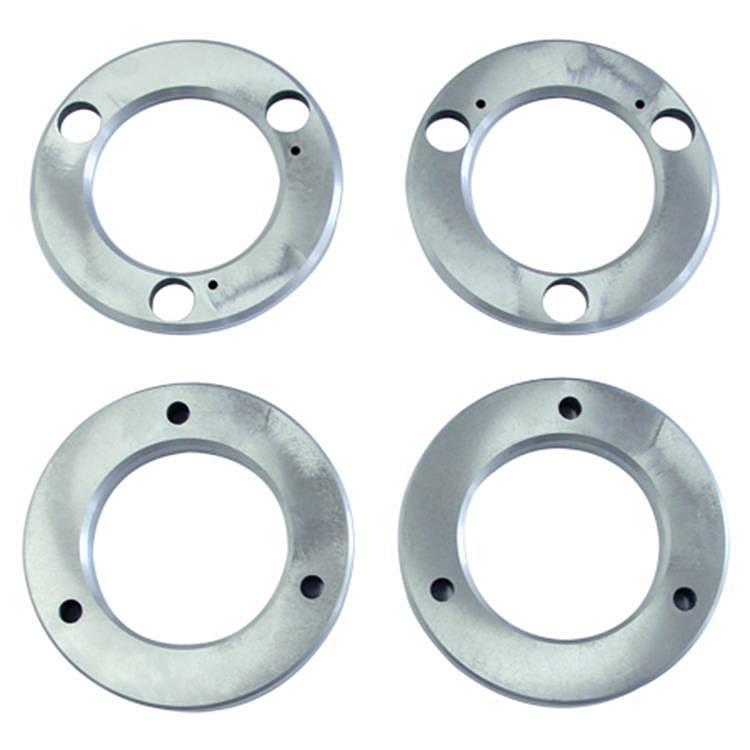

What’s included
- 2 lower spacers
- 2 upper spacers
- 4 dowel pins
- Nuts and washers
- Labels
