Overview

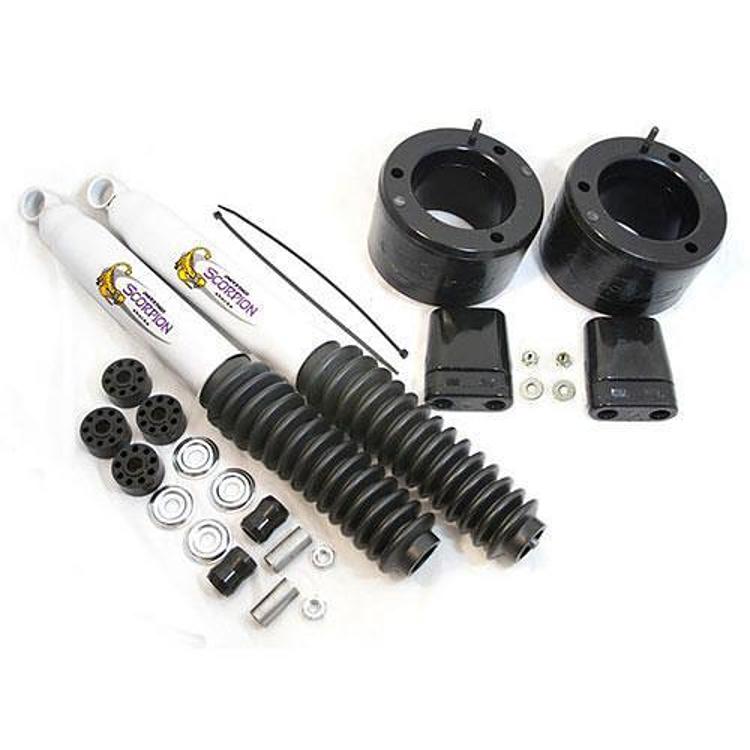

The Daystar KC09137BK is a black polyurethane spacer kit with two Scorpion shocks. The short text names a rear coil spring spacer kit that also includes front coil spring spacers, so the kit covers both ends of the truck.
It covers 2013-2015 2WD Ram 2500 and 3500 trucks. It also fits 2014-2018 Ram 2500 and 2013-2018 Ram 3500 models across several trim levels, so confirm the year and drivetrain before ordering.
Key features
- Rear coil spring spacer kit
- Front coil spring spacers included
- Two Scorpion shocks included
- Black finish
- Polyurethane spacer material
Matching front and rear height
A kit that includes both front and rear coil spring spacers aims to level the truck from end to end. Adding spacers at only one end can leave the truck sitting uneven, so the rear height and the front height should be considered together. Rear spacers also change how the shocks and the driveshaft angle work, so the rear end deserves a check after installation.
Drivetrain setup matters for this kind of kit. A two-wheel-drive truck and a four-wheel-drive truck can use different front components, so the drivetrain should be confirmed before ordering. Plan an alignment after the spacers are in place, and look at the shocks since they are sized for the new height. Inspect the bump stops and the rear suspension for wear while the truck is raised.
- Confirm drivetrain before ordering
- Check driveshaft angle after the rear spacers are installed
- Inspect shocks for leaks and wear
Specifications
| Brand | Daystar |
|---|---|
| Part number | KC09137BK |
| UPC | 618089004583 |
| Position | Rear, with front spacers included |
| Shocks | Two Scorpion shocks |
| Spacer material | Polyurethane |
| Finish | Black |
| Drivetrain | Drivetrain: 2WD |
Vehicle fitment
It fits 2014-2018 Ram 2500 and 2013-2018 Ram 3500 across several trim levels. The 2013-2015 2WD range is the narrower fit, so confirm the years and drivetrain before ordering.
Confirm your vehicle’s year, model, trim and drivetrain before ordering.
What’s included
Included: rear coil spring spacers, front coil spring spacers and two Scorpion shocks.
