Overview

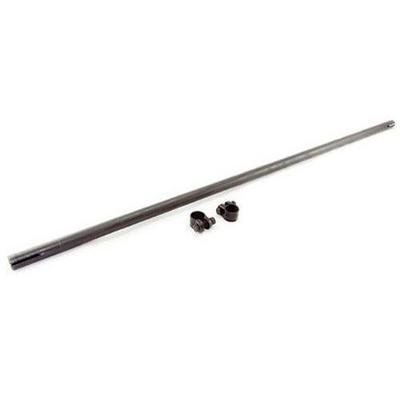

The Crown Automotive J5350589 is a 40-1/2-inch tie rod tube that runs knuckle to knuckle on 1972–1983 Jeep CJ5, CJ6 and CJ7 models and the Scrambler. The tube is the crossbar of the steering linkage that joins the two front steering knuckles.
It is a direct-fit part measuring 40-1/2 inches long.
Key features
- Tie rod tube spanning knuckle to knuckle
- 40-1/2 inch length
- Built for CJ5, CJ6, CJ7 and Scrambler models
- Direct-fit design
Crossbar wear and inspection
The center tube of a CJ steering linkage carries the steering force from one knuckle to the other, so it sees constant push and pull. On a trail the tube absorbs impacts from rocks and stumps, which can bend it or loosen the sleeves at either end. A tube that has taken a hit may look straight but still cause the wheels to toe in unevenly, so sight alone is not enough.
When choosing a replacement, confirm the model year and body style first, since the linkage geometry changes between generations. Plan to inspect the tie rod ends and steering arm bushings at the same time, because worn ends let the crossbar move under load. After installation, set the toe and check that both knuckles turn the same amount when the wheel is steered to the stop. Keep the joints greased to slow future wear.
- Check for bends along the tube’s length
- Inspect the ends for play
- Compare knuckle travel left and right
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | J5350589 |
| Part type | Tie rod tube |
| Span | Knuckle to knuckle |
| Length | 40-1/2 inch |
| Fit type | Direct fit |
Vehicle fitment
It fits the 1972–1983 Jeep CJ5, the 1972–1975 CJ6, the 1976–1983 CJ7 and the 1981–1983 Scrambler.
CJ7 and Scrambler models built after 1983 are not covered by this tube, and neither are CJ5 and CJ6 models built before 1972. Confirm your vehicle’s year, model and trim before ordering.
