Overview

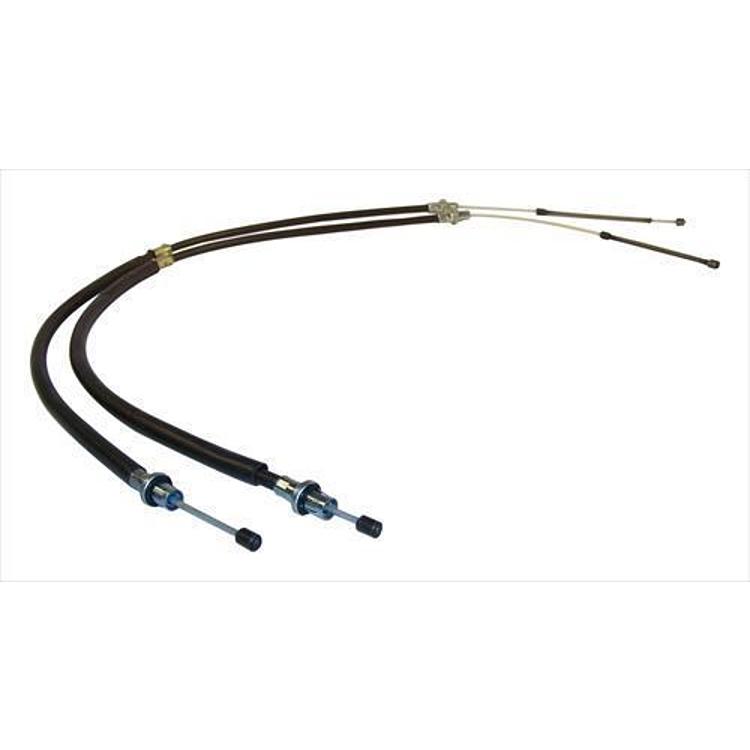

The Crown Automotive 4762464 is a rear parking brake cable set for the 1992–1996 Jeep Cherokee (XJ), supplied as one driver side cable and one passenger side cable. The parking brake cable links the parking brake lever or pedal to the rear brakes.
Because both rear cables are in the set, a Cherokee XJ owner can replace the left and right cables together.
Key features
- Parking brake cable set for the rear brakes
- Includes both the driver side and the passenger side cable
- Direct fit for the 1992–1996 Cherokee (XJ)
- Replacement part from Crown Automotive
Cable wear and routing
Parking brake cables work under constant tension and are exposed to road salt, water and grit at the rear axle. Over time the inner cable can stretch or the sheath can crack, so the lever travels farther before the rear brakes hold. Replacing both sides together helps the two rear brakes apply with similar force, which keeps the vehicle from pulling to one side when parked on a grade.
When inspecting an old set, look for frayed or kinked sheaths, rust at the anchor brackets and cable ends that do not move freely. Note the routing and clip positions before removal, because a cable rubbing on the axle or a spring can wear through quickly. Lubricate the pivots where the design allows, and adjust the parking brake once the new cables are seated.
- Check both anchor brackets for rust before installing
- Confirm the cable ends move freely by hand
- Re-check adjustment after the first few uses
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 4762464 |
| UPC | 848399008111 |
| Part type | Parking brake cable set |
| Position | Rear |
| Quantity | 2 cables, one per side |
| Fit type | Direct fit |
Vehicle fitment
It is a direct fit for the 1992–1996 Jeep Cherokee (XJ).
It fits the 1992–1996 Cherokee XJ only. Check your year, model and trim against this fit before ordering.
What’s included
1 rear driver side cable and 1 rear passenger side cable.
