Overview

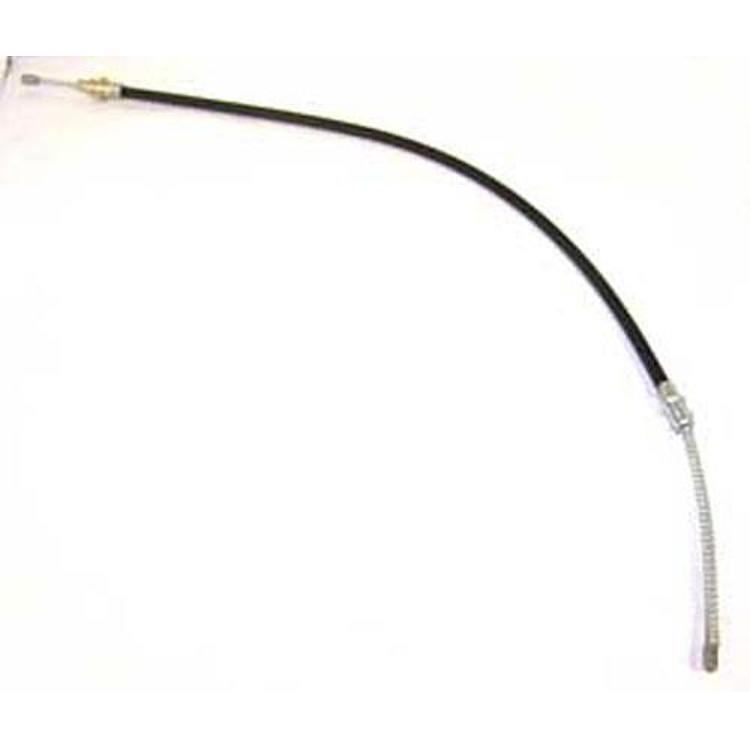

The Crown Automotive J3233903 is a driver side rear emergency brake cable for 10 inch brakes on the 1976–1980 Jeep CJ5 and CJ7. The cable is 31-1/2 inches long and applies the left rear brake when the parking brake is set.
This cable is made for 10 inch rear brakes, so match it to your drum size before fitting.
Key features
- Rear left emergency brake cable
- Made for 10 inch brakes
- 31-1/2 inches long
- Direct fit for the 1976–1980 CJ5 and CJ7
Parking brake cable service
The parking brake cable carries the force from the hand lever to the rear brake, so it must run smoothly through its housing and guides. Cables stretch over time, and a stretched cable can leave the lever with too little travel or the brake unable to hold on a slope. Rust and road grime inside the housing are common causes of a cable that will not release fully.
When replacing a cable, route it exactly as the old one ran and secure it with the same clips, keeping it clear of exhaust heat and moving suspension parts. Check that the lever releases fully and that the rear wheel turns freely with the brake off. Adjust the rear brakes after the new cable is in place, then test the parking brake on a slope before relying on it.
- Compare cable length with the old cable before fitting
- Route the cable through the same guides and clips
- Keep the cable clear of exhaust heat
- Test the parking brake hold on a slope
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | J3233903 |
| UPC | 848399060577 |
| Part type | Emergency brake cable |
| Position | Rear left, driver side |
| Brake size | 10 inch |
| Cable length | 31-1/2 inches |
| Fit type | Direct fit |
Vehicle fitment
It fits the 1976–1980 Jeep CJ5 and the 1976–1980 CJ7.
It is made for 10 inch brakes and the driver side. The 1981 and later CJ5 and CJ7 are not covered. Confirm fit for your vehicle’s year, model and trim before ordering.
