Overview

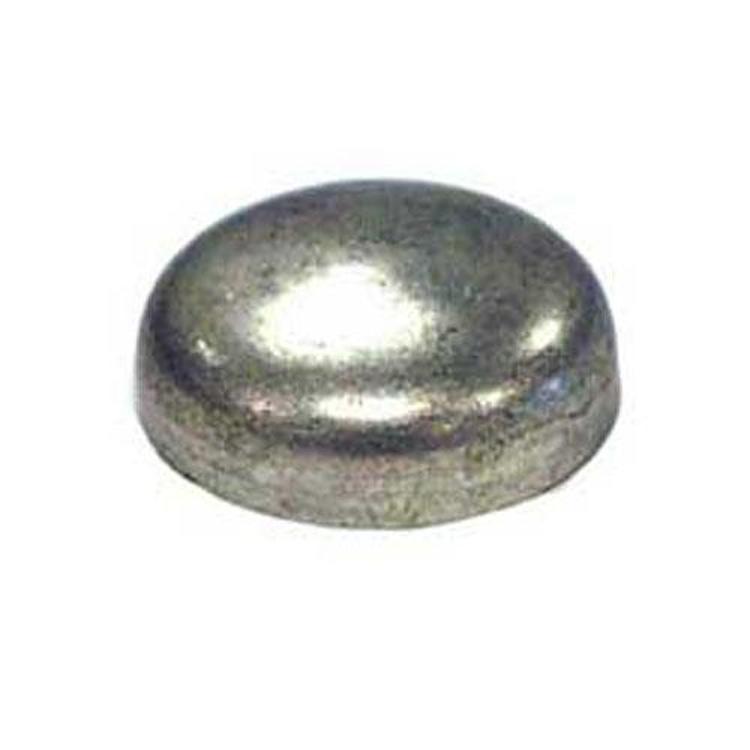

The Crown Automotive J3172319 is an oil hole plug with a 7/8 inch standard diameter, made for the 2.5L 150 4 cylinder engine. It fits Jeep Cherokee, CJ, Comanche, Wagoneer and Wrangler models from 1972 to 2002, with coverage varying by model as shown in the Vehicle fitment section below.
Oil hole plugs close an oil passage opening so oil cannot escape through it. Use this plug where its 7/8 inch diameter matches the hole being sealed. Confirm the length, thread and material against the opening before installing.
Key features
- Standard 7/8 inch diameter
- Made for the 2.5L 150 4 cylinder engine
- Manufacturer fitment covers Jeep Cherokee, CJ, Comanche, Wagoneer, Scrambler and Wrangler models
- Crown Automotive part number J3172319, UPC 848399058154
Choosing and installing a plug
An oil hole plug is a small fitting that closes a drilled passage in the engine or drivetrain. Over time the threads can strip, the sealing face can corrode, and vibration can loosen a plug that was not tightened correctly. A weeping plug usually shows as oil spotting around the fitting, so inspect the area whenever a cover or pan is off.
When choosing a replacement, match the diameter first, then check the thread and seal type used on the original. A plug that is too short may not engage the threads, while one that is too long can contact moving parts. Clean the hole and seating surface before fitting, and tighten to the torque in the vehicle’s service manual.
- Clean the opening and threads before installing
- Replace a sealing washer if the original used one
- Inspect nearby threads for damage or corrosion
- Recheck for leaks after the first drive
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | J3172319 |
| UPC | 848399058154 |
| Diameter | 7/8 inch standard |
| Engine | 2.5L 150 4 cylinder |
Vehicle fitment
Crown Automotive’s manufacturer fitment list includes these Jeep models: Cherokee (SJ) 1975–1983; Cherokee (XJ) 1987–2000; CJ5 1972–1983; CJ6 1972–1975; CJ7 1976–1986; Comanche 1986–1992; DJ5 1983; Grand Wagoneer (SJ) 1984–1986; J10 1975–1986; J20 1976; Scrambler 1981–1985; Wagoneer (SJ) 1980–1987; Wrangler (TJ) 1997–2002, SE trim only; and Wrangler (YJ) 1987–1995.
Cherokee (XJ) coverage ends in 2000, and Wrangler TJ coverage is limited to the SE trim. Other Wrangler TJ trims and Cherokee years after 2000 are not on the list. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Check the package contents against your installation before starting.
