Bushwacker Chevrolet Silverado Pocket Style Rear Fender Flares (Paintable) – 40116-02

Bushwacker

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pocket style rear fender flares for the 2014 to 2018 Chevrolet Silverado 1500 and 2015 to 2018 Silverado 2500 HD and 3500 HD
  • Sold as a pair with 1.75 inches of width and tire coverage
  • Recessed stainless steel bolts and a paintable OEM-style matte black finish
  • Installs with no drilling required.
  • Part number 40116-02, UPC 90689116871

Description

Overview

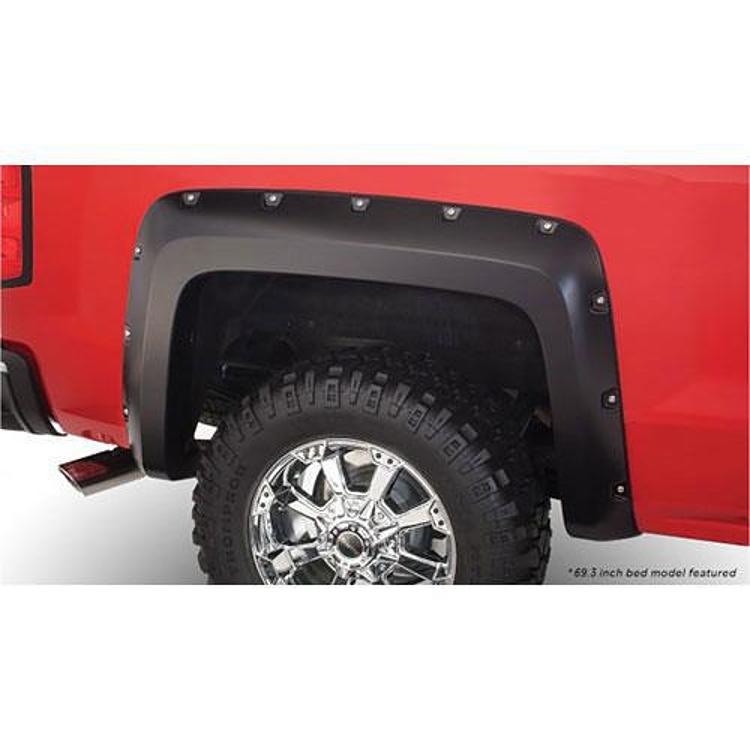

The Bushwacker 40116-02 is a pair of pocket style rear fender flares for the Chevrolet Silverado. The flares add 1.75 inches of width and tire coverage at the rear and are meant for oversized tires and high-clearance lift kits. They fit the 2014 to 2018 Silverado 1500 and the 2015 to 2018 Silverado 2500 HD and 3500 HD in the trims named for each.

The recessed stainless steel bolts hold the flares in place, and the surface is Dura-Flex 2000 made in the USA. The OEM-style matte black finish is UV protected and resists chalking. The install needs no drilling, and the finish can be painted to match or accent the body color.

Key features

  • Pocket style design for the rear position
  • 1.75 inches of width and tire coverage
  • Recessed stainless steel bolts
  • No drilling required for installation.
  • 100 percent UV protected Dura-Flex 2000
  • OEM-style matte black finish that is easy to paint

Rear pocket flare clearance

Rear flares are often the first place a larger tire shows contact, especially on a loaded truck. The rear edge should stay clear of the tire at full compression, when the suspension is loaded and the wheel moves up into the opening. Test-fit the flare with the truck at its normal load, not empty in the driveway.

Pocket style flares rely on recessed bolts, so the mounting area is firm but the plastic edge can still flex. Keep the hardware snug in a cross pattern and avoid forcing the flare into place. A flare that is pulled against an uneven fender can warp or crack over time.

Lift height and tire width change the answer, so recheck clearance after any suspension or tire change. A small adjustment early is much easier than repairing a split edge later.

  • Test-fit with normal payload
  • Check clearance after tire changes
  • Keep the mounting area clean

Specifications

Brand Bushwacker
Part number 40116-02
UPC 90689116871
Position Rear
Width and tire coverage 1.75 inches
Quantity Sold as a pair
Fit type Direct fit
Material Dura-Flex 2000
Finish OEM matte black, paintable
Model years 2014 to 2018 Silverado 1500; 2015 to 2018 Silverado 2500 HD and 3500 HD

Vehicle fitment

The 2014 to 2018 Chevrolet Silverado 1500 fits in the Custom, High Country, LS, LT, LTZ, SSV and WT versions. The 2015 to 2018 Silverado 2500 HD and 3500 HD fit in the High Country, LT, LTZ and WT versions. Earlier Silverado years and 2019 and later are not covered.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The install needs no drilling, and the recessed bolts mount the rear pair in place. The front pair is part 40119-02 and the full set is part 40957-02, both sold separately.

What’s included

A pair of pocket style rear fender flares.

Not included: the front pair (part 40119-02) and the full set (part 40957-02) are sold under separate part numbers.

SKU: B/W40116-02 Category:

Specification

Shipping weight 13.50 lbs
Package dimensions 49.00 × 32.00 × 10.00 in
brands

Fitment

VehicleYearsTrims
Chevrolet Silverado 15002014–2018Custom, High Country, LS, LT, LTZ, SSV, WT
Chevrolet Silverado 2500 HD2015–2018High Country, LT, LTZ, WT
Chevrolet Silverado 3500 HD2015–2018High Country, LT, LTZ, WT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the 40116-02 fit a 2016 Chevrolet Silverado 1500?

Yes. The 2016 model year falls within the 2014 to 2018 Silverado 1500 range. Match your trim to the Custom, High Country, LS, LT, LTZ, SSV or WT versions before ordering the pair.

Does this pair fit a Silverado 2500 HD?

Yes, for the 2015 to 2018 model years in the High Country, LT, LTZ and WT versions of the Silverado 2500 HD and 3500 HD. Match your year and trim before ordering, since other years and trims fall outside this fit.

Is this a rear pair?

Yes. The position is rear and the quantity is a pair, so both rear flares come in one order. The front pair is part 40119-02, sold separately from this rear pair.

Does this pair need drilling?

No. The pocket style flares mount with no drilling, using recessed bolts to hold each flare against the body. Plan to set the flares by hand and check the seating before tightening all fasteners fully.

What tire size changes call for a clearance check?

Wider tires, taller tires and a raised suspension all change how the rear flare sits. Check the rear edge against the tire at full compression and while turning, and note any rub before driving far.

Can the rear flares be painted before installing?

Yes. Clean the matte surface, scuff it lightly and use a flexible plastic primer before the topcoat. Paint the flares off the truck when possible so overspray stays off the body.
