Overview

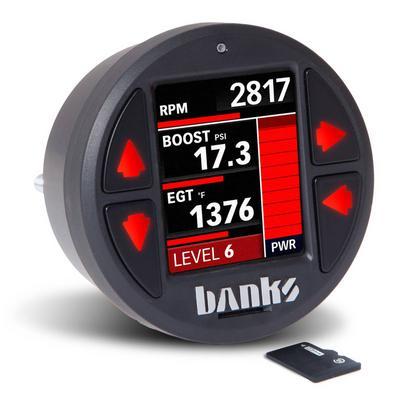

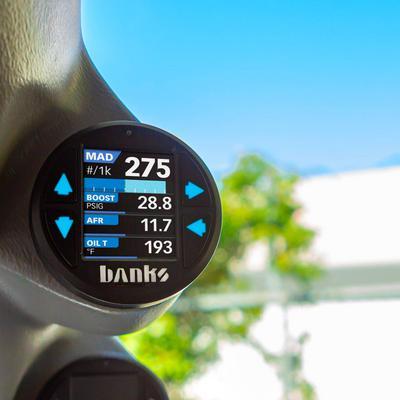

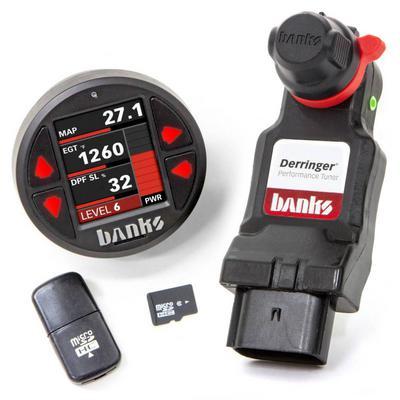

The Banks Power Derringer Tuner with ActiveSafety, part number GBE66692, is a power tuner for the 2017–2019 Chevrolet Silverado and GMC Sierra 2500 and 3500 trucks with the 6.6L L5P engine. It adds up to 61 hp and 112 lb-ft across the rev range, starting right off idle and carrying through each gear to the shift point. The kit includes an iDash 1.8 SuperGauge.
The Derringer connects in line with the truck’s engine sensors and to the OBDII diagnostic bus connector. A CAN transceiver chip lets its microprocessor communicate with the vehicle. The tuner is dyno calibrated and uses throttle position, rpm, vehicle speed, AFR, knock and coolant temperature to adjust calibrations in real time. Its electronics sit inside a compact housing that is easy to conceal.
Key features
- Adds up to 61 hp and 112 lb-ft
- Six switched power levels
- Works while cruise control is in use
- Logs up to 20 min/max values
- ActiveSafety coolant temperature watchdog that blocks added power when the engine is too cold or overheated
- Automatic power adjustment when knock occurs due to bad fuel
- Dyno calibrated, with real-time microprocessor control

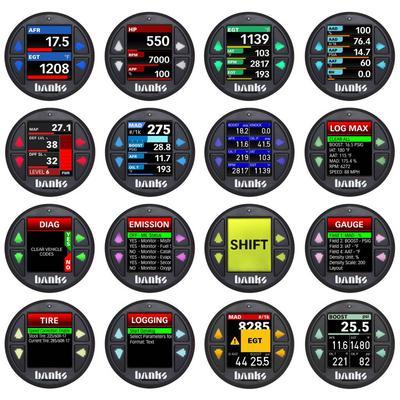

- Communicates with iDash 1.8 DataMonster or SuperGauge over B-Bus
Using the power levels
Power tuners add fuel and timing changes that work with the engine’s existing sensors, so the tuner reads those inputs and adjusts within set limits. The six switched levels let the driver step up or down depending on load and conditions. Because the tuner reads coolant temperature, it can hold back added power when the engine is too cold or too hot.
Heavier loads, towing and hot weather all add stress to the drivetrain, cooling system and brakes, so added power calls for closer attention to those systems. Check coolant level and fan operation, and watch transmission temperature when pulling. Route the harness cleanly and check the connectors after rough roads.
- Check the harness after the first few trips
- Review logged values after longer drives
Specifications
| Brand | Banks Power |
|---|---|
| Part number | GBE66692 |
| Product name | Derringer Tuner with ActiveSafety |
| Engine | 6.6L L5P |
| Power gain | Up to 61 hp |
| Torque gain | Up to 112 lb-ft |
| Power levels | Six switched settings |
| Data logging | Logs up to 20 min/max values |
| Communication | OBDII and B-Bus (Banks Bus) |
| Included gauge | iDash 1.8 SuperGauge |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2017–2019 Chevrolet Silverado 2500 HD and 3500 HD (High Country, LT, LTZ, WT) and the 2017–2019 GMC Sierra 2500 HD and 3500 HD (Base, Denali, SLE, SLT).
Other model years and other truck series are not covered. Check your year, model and trim against this coverage before ordering.
Installation notes
This is not a bolt-on bracket install: the tuner connects in line with the engine sensors and to the OBDII diagnostic connector. Route the harness away from hot components and secure it before driving.

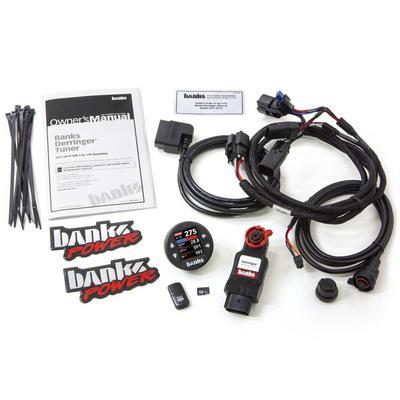

What’s included
The kit includes an iDash 1.8 SuperGauge.
