Overview

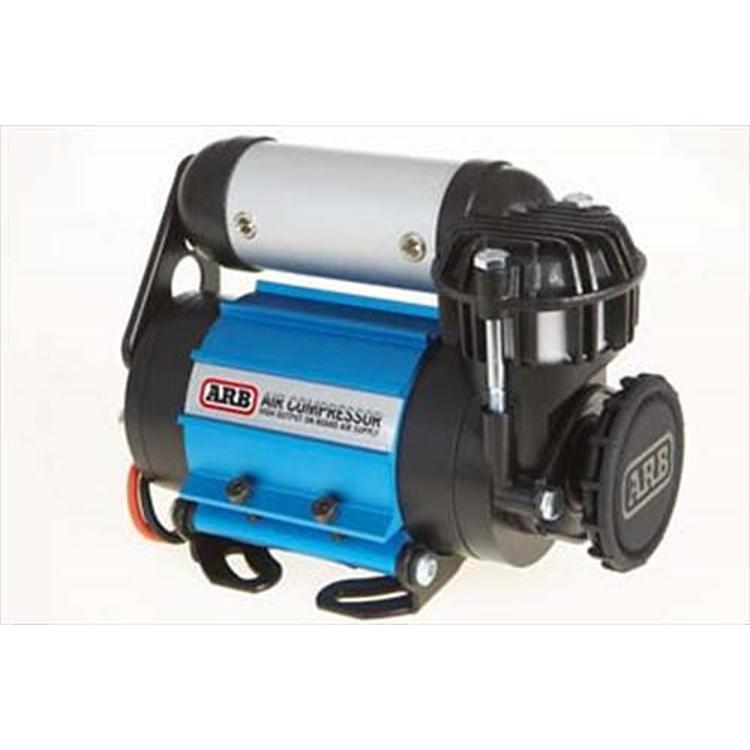

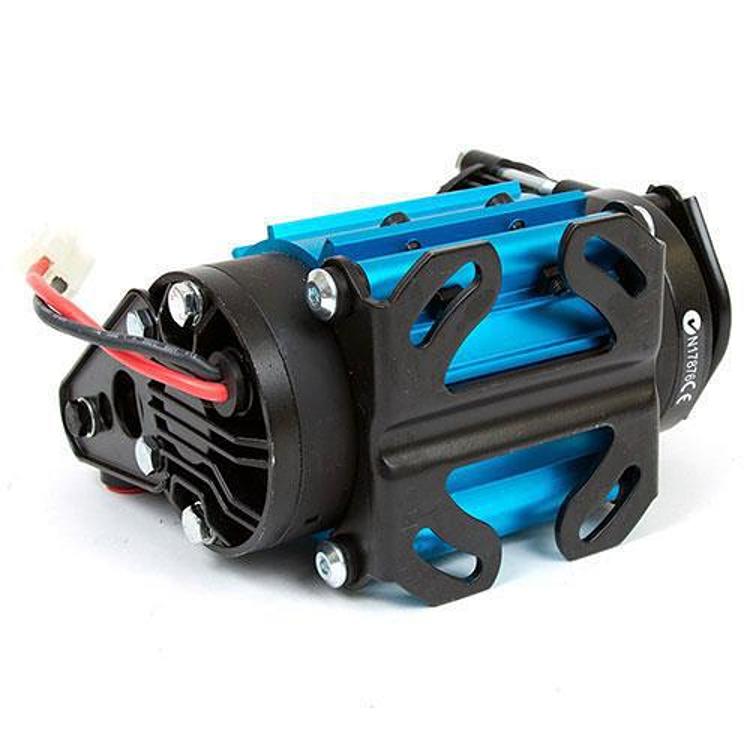

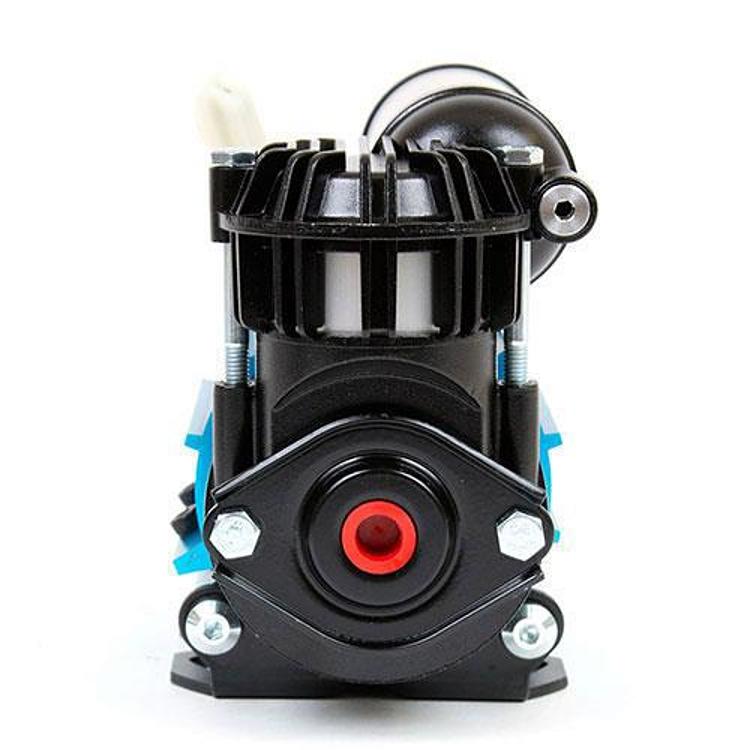

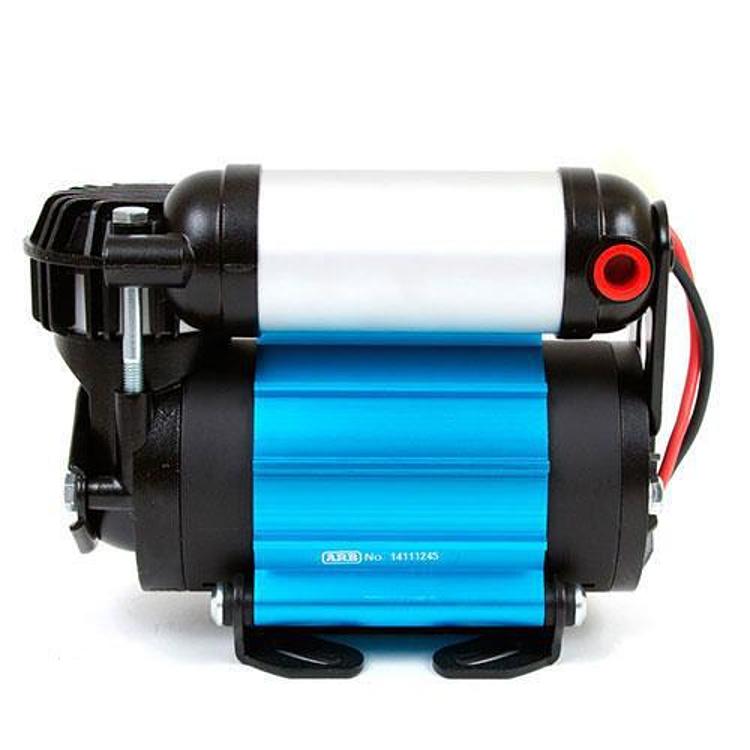

The ARB Heavy-duty Air Compressor for ARB Air Lockers (part number CKMA12) is an on-board air compressor kit that operates a single locker or a dual front and rear ARB locker system.
The kit is designed to run one air locker or two, and it can also supply air for other jobs, such as refilling a low tire. It has a die cast aluminum storage tank and oil-less operation, with the cut-off switch set at 100 psi.

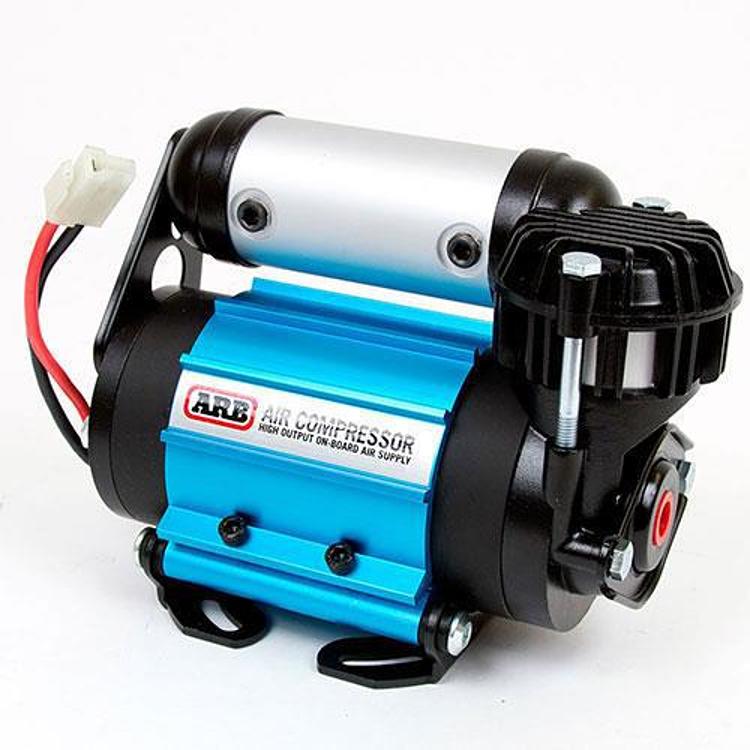

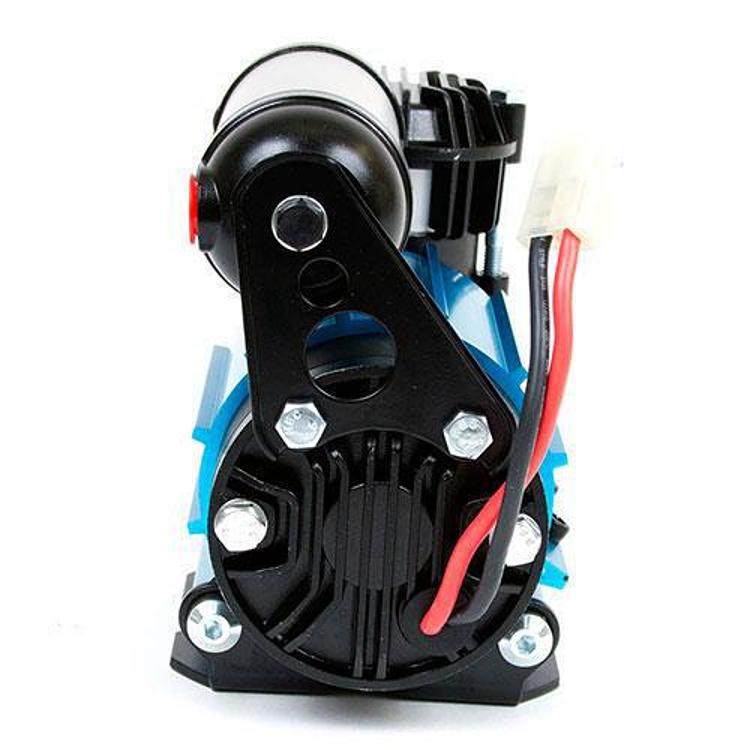

The kit contains a pre-assembled compressor, a mounting clamp, a backing plate, a pressure switch, a wire loom and all mounting hardware, so no other parts are needed to mount it. Current draw is 9 amps with no load and 20 amps at full load. An automatic pressure-activated limit switch controls the compressor. The UPC is 881348007220. Measure your mounting space for the compressor and tank before installing.
Key features
- Operates single or dual (front and rear) ARB locker systems
- Can also supply air for refilling a low tire
- Die cast aluminum storage tank
- Oil-less operation
- Automatic pressure-activated limit switch
- Current draw of 9 amps with no load, 20 amps at full load
- Pre-assembled compressor with mounting clamp, backing plate, pressure switch, wire loom and hardware
Running and maintaining the compressor
An on-board compressor works hardest when a locker is being filled or a tire is being topped up, and heat builds during those periods. Give the unit room to breathe and avoid running it continuously. Let it cool between uses, and keep the mounting area free of mud and debris that can block airflow around the motor.
Wiring deserves careful attention. Use the wire loom and harness supplied, route cable away from heat and moving parts, and make sure the fusing suits the current draw. Check the hose, fittings and tank drain regularly, since moisture collecting in the tank can cause corrosion over time.
- Let the compressor cool between uses
- Keep the mounting area clear of mud and debris
- Drain moisture from the tank regularly
Specifications
| Brand | ARB 4×4 Accessories |
|---|---|
| Part number | CKMA12 |
| UPC | 881348007220 |
| Product type | On-board air compressor kit for ARB Air Lockers |
| Tank | Die cast aluminum |
| Operation | Oil-less |
| Pressure cut-off | 100 psi |
| Current draw | 9 amps no load, 20 amps full load |
| Switch | Automatic pressure-activated limit switch |
Vehicle fitment
The ARB CKMA12 compressor is not vehicle-specific. ARB frames it around the locker system rather than a vehicle, and names no years, models or chassis codes.
Because it is an on-board compressor, you need a mounting location with room for it and its tank, plus electrical capacity for a 20 amp full load. Measure the space before choosing a spot.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
ARB supplies the mounting clamp, backing plate, wire loom and hardware with the kit. Because the compressor draws up to 20 amps at full load, it needs wiring and fusing suited to that current. ARB provides instructions with the kit.

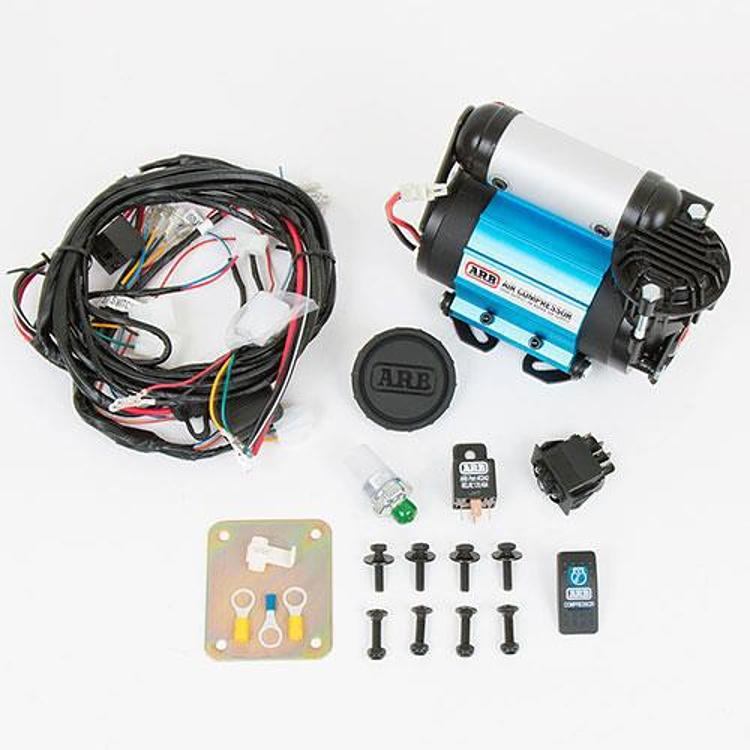

What’s included
- Pre-assembled compressor
- Mounting clamp and backing plate

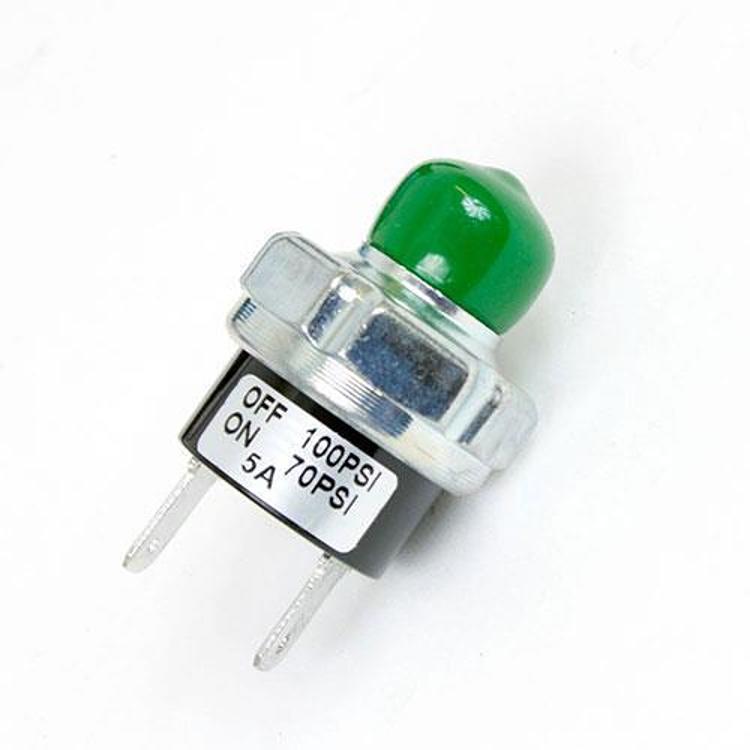

- Pressure limit switch
- Wiring harness and wire loom
- Mounting hardware and instructions
Not included: Air lockers and the parts that come with them.
