Overview

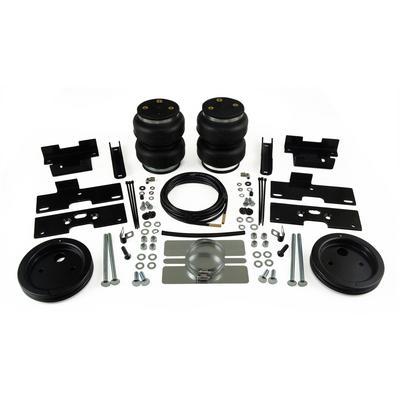

The AirLift LoadLifter 5000 Ultimate air spring kit, part number AIR88213, is a rear air helper spring kit for the 2015–2021 Ford Transit-150, Transit-250 and Transit-350 vans. It is the heaviest-rated kit in its line, with up to 5,000 pounds of leveling capacity for hauling or towing.
The springs adjust from 5 to 100 PSI, so pressure can be raised for a heavy load and lowered when the van is empty. The kit carries loads up to the gross vehicle weight rating recommended for the vehicle. It comes with a limited lifetime warranty and a 60 day ride satisfaction guarantee.
Key features
- Up to 5,000 pounds of leveling capacity
- Air adjustable from 5 to 100 PSI
- Rear application
- Limited lifetime warranty
- 60 day ride satisfaction guarantee
Matching air pressure to the load
Helper springs work by holding up part of the rear load, so the air pressure decides how much support the axle gets. A light van may need only a low setting for a smooth ride, while a loaded van or a trailer tongue may need more. Adjust in small steps and drive the van after each change to see how the ride and steering feel.
Because the springs change how the rear axle loads the shocks, the shock mounts and bushings deserve a check after installation. Worn bushings can make a loaded van feel loose even when the pressure is correct. The compressor and air lines should also be inspected for leaks at each service.
- Set pressure to match the cargo or tow weight
- Recheck the setting after loads change
- Inspect shock mounts and bushings after installation
Specifications
| Brand | AirLift |
|---|---|
| Part number | AIR88213 |
| Product line | LoadLifter 5000 Ultimate |
| System type | Air bag |
| Application | Rear |
| Leveling capacity | Up to 5,000 pounds |
| Air pressure | 5-100 PSI |
| Warranty | Limited lifetime |
| Fitment | Direct fit |
Vehicle fitment
It fits the 2015–2021 Ford Transit-150 in Base, PTV, XL and XLT models, the 2015–2021 Transit-250 in Base and PTV models, and the 2015–2021 Transit-350 in Base, PTV, XL and XLT models.
The list covers the Transit vans from 2015 to 2021 only, so the 2022 and newer Transit and the Ford F-series pickups are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the mounting points and the air line route on your van before installation. Keep the air pressure within the 5 to 100 PSI range the kit is rated for.
What’s included
One LoadLifter 5000 Ultimate air spring kit, part number AIR88213.
